Description
The Motorized XY Positioning Stage LSDP-50-JG-2, crafted by Jiangxi Liansheng Technology Co., Ltd, offers precision and reliability for various industrial applications. Located at No 1015, Jinsha Third Road in the Xiaolan Economic Development Zone of Nanchang, Jiangxi Province, the company excels in developing advanced motion control solutions.
This specific model features a travel range of 50mm in both X and Y axes and is equipped with a high-precision guide rail system that includes crossed roller and V-shaped guide rails for enhanced stability and accuracy. The stage is driven by a 28BYGH stepper motor (1.8°), ensuring smooth and precise movements with a resolution of 0.625μm and a repeating accuracy of less than 10μm. With a robust load capacity of 10kg and a compact platform dimension of 150x150mm, the LSDP-50-JG-2 is ideal for tasks requiring exact positioning in a confined space.

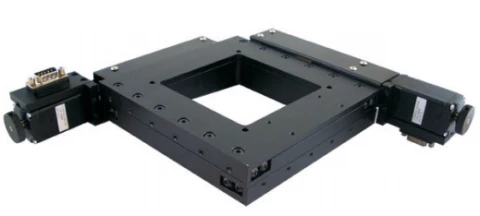

LDTDP-50-JG-2 Series Motorized XY Positioning Stage XY Microscope Stage
Specifications
| Axes Of Motion: | Two |
|---|---|
| Travel Range: | 50 mm |
| Load Capacity (Horizontal): | 10 kg |
| Load Capacity (Vertical): | 10 kg |
| Max Speed: | 5 mm/s |
| Weight: | 3.2 kg |
| Guiding Mechanism: | Crossed Roller Slides |
| Voltage Requirement: | DC 24V |
| Travel Range (LSDP-JS Series): | 30mm, 50mm, 100mm |
| Platform Dimension (LSDP-JS Series): | 90X90mm, 90X110mm, 90X185mm |
| Resolution (LSDP-JS Series): | 0.000625mm |
| Repeating Accuracy (LSDP-JS Series): | Less than 0.005mm |
| Motor (LSDP-JS Series): | 42 Stepper Motor (1.8°) |
| Max Torque (LSDP-JS Series): | 0.4 N.M |
| Working Currency (LSDP-JS Series): | 1.7A |
| Net Weight (LSDP-JS Series): | 1.25kg, 1.4kg, 1.8kg |
| Load Capacity (LSDP-JS Series): | 5kg, 10kg, 20kg |
| Travel Range (LSDP-FG Short Travel Range): | 50mm, 100mm, 150mm, 200mm, 250mm |
| Net Weight (LSDP-FG Short Travel Range): | 3kg, 3.5kg, 4kg, 4.8kg, 5.3kg |
| Resolution (LSDP-FG Short Travel Range): | 0.0025mm |
| Max Speed (LSDP-FG Short Travel Range): | 40mm/Sec |
| Resetting Accuracy (LSDP-FG Short Travel Range): | ＜0.005mm |
| Axial Spacing (LSDP-FG Short Travel Range): | ＜0.03mm |
| Standard Motor (LSDP-FG Short Travel Range): | 42 Stepper Motor (1.8°) |
| Max Torque (LSDP-FG Short Travel Range): | 0.4 N.M |
| Operating Current (LSDP-FG Short Travel Range): | 1.7A |
| Loading Capacity (LSDP-FG Short Travel Range): | 30kg |
| Platform Size (LSDP-FG Short Travel Range): | 160X160mm |
| Travel Range (LSDP-FG Medium Travel Range): | 300mm, 350mm, 400mm, 450mm |
| Net Weight (LSDP-FG Medium Travel Range): | 5.75kg, 7kg, 8kg, 8.5kg |
| Resolution (LSDP-FG Medium Travel Range): | 0.0025mm |
Download Data Sheet
Features
- Product Model: LSDP-50-JG-2
- Travel range: 50mm in X & Y Axis
- Platform Dimension: 150X150mm
- Resolution: 0.625μm
- Repeating Accuracy: Less than 10μm
- Motor: 28BYGH (1.8°）
- Guide Rail: Crossed Roller and V Shaped Guide rails
- Max Torque: 0.1N.M
- Working Currency: 0.35A
- Net Weight: 3.2kg
- Load Capacity: 10kg
Applications
- Robotics and automation
- Laser systems
- Spectroscopy
- Imaging
Frequently Asked Questions
What are the travel ranges available for the LSDP-JS series?
The LSDP-JS series offers travel ranges of 30mm, 50mm, and 100mm.
What is the resolution of the motorized linear translation stages in both the LSDP-JS and LSDP-FG series?
The resolution for the LSDP-JS series is 0.000625mm, while for the LSDP-FG series, it is 0.0025mm.
What type of motor is used in the LSDP-JS and LSDP-FG series?
Both the LSDP-JS and LSDP-FG series use a 42 stepper motor with a 1.8° step angle.
What is the maximum load capacity for the LSDP-JS series?
The maximum load capacity for the LSDP-JS series is 20kg.
Can the stepper motor in the LSDP-FG series be replaced with a different type of motor?
Yes, the stepper motor in the LSDP-FG series can be replaced with a servo motor for higher speed.
What is the maximum speed of the LSDP-FG series?
The maximum speed of the LSDP-FG series is 40mm/sec.
What are the platform dimensions for the LSDP-30JS model?
The platform dimensions for the LSDP-30JS model are 90x90mm.
