Description
The NS-X20-01 is a compact motion stage designed for movement along the X-axis. This stage uses piezo motor as the driving mechanism and ultra-precision capacitive sensors for feedback, support a closed-loop resolution of up to 0.1 nm.

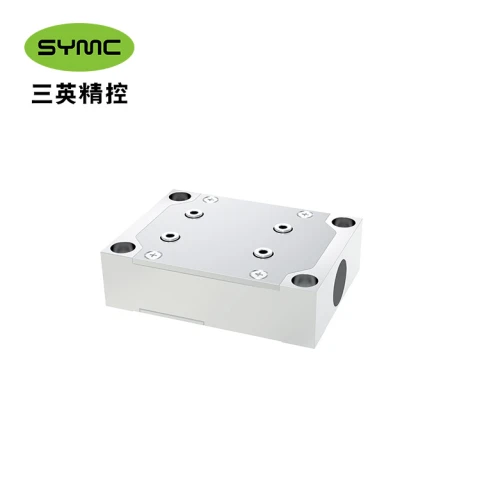

NS-X20-01 X-axis Nano Positioning Stage
Sanying MotionControl Instruments Ltd.
Specifications
| Axes Of Motion: | One |
|---|---|
| Travel Range: | 0.02 mm |
| Load Capacity (Horizontal): | 1 kg |
| Load Capacity (Vertical): | 1 kg |
| Weight: | 0.08 kg |
| Guiding Mechanism: | Other |
| Voltage Requirement: | Other |
| Range: | 20 μm |
| Load: | 1 kg |
| Close-loop Resolution: | 0.1 nm |
Download Data Sheet
Features
- High Precision
- Long Range
- Heavy Load
- Good Rigidity
Applications
- Microscopy Imaging
- Laser Processing
- Optical Alignment
- Grating Writing
Frequently Asked Questions
What is the NS-X20-01?
The NS-X20-01 is an X-axis nano positioning stage designed for ultra-precision motion control applications.
What is the range of motion for the NS-X20-01?
The NS-X20-01 has a range of 20 micrometers (μm).
What is the maximum load capacity of the NS-X20-01?
The NS-X20-01 can support a load of up to 1 kilogram (kg).
What type of motor drives the NS-X20-01?
The NS-X20-01 is driven by a piezo motor.
What is the resolution of the NS-X20-01?
The NS-X20-01 supports a close-loop resolution of up to 0.1 nanometers (nm).
What applications is the NS-X20-01 suitable for?
The NS-X20-01 is suitable for applications such as microscopy imaging, laser processing, optical alignment, and grating writing.
