Scanner16-z: Ultra-Compact Low-Temperature Piezoelectric Scanner Stage
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2020
Description

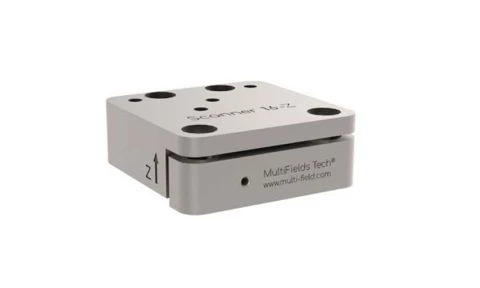

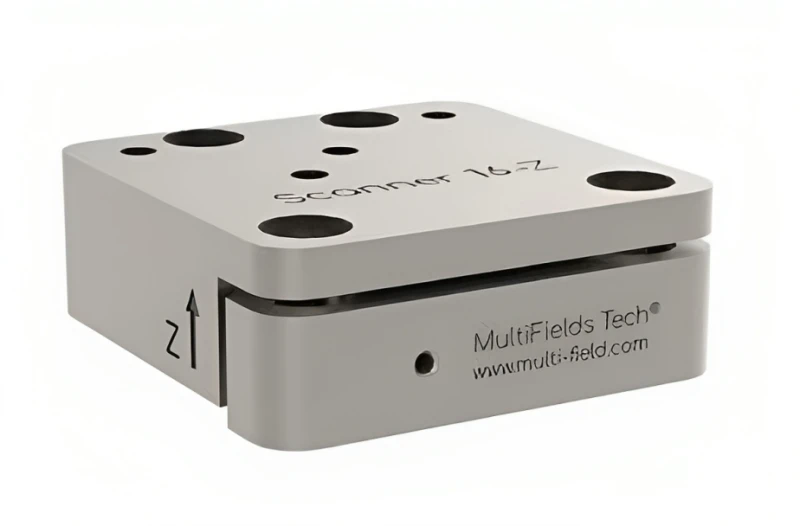

The Scanner16-z is a highly precise, ultra-compact scanner stage designed for use in cutting-edge applications requiring high-resolution movement in extreme environments. With dimensions of just 16x16x6 mm, this small scanner delivers exceptional performance in ultra-high vacuum (UHV) conditions and extremely low temperatures, down to 30 mK. It is composed of non-magnetic materials—pure titanium (Ti) and beryllium copper (BeCu)—which make it compatible with high magnetic fields up to 18 Tesla, ensuring reliability even in demanding scientific experiments.
The Scanner16-z offers a long travel range of 30 μm at 300 K and achieves position sensing with up to 0.5 nm resolution. Designed for high load applications (up to 100g), it is an ideal solution for a range of scientific research, including low-temperature physics and vacuum-based studies. Optional versions provide compatibility with specific environments such as He3 or dilution cryogenics systems, as well as ultra-high vacuum conditions.
This product delivers consistent performance, with high repeatability (<10 nm) and low capacitance, making it an indispensable tool in research labs worldwide.
Scanner16-z: Ultra-Compact Low-Temperature Piezoelectric Scanner Stage
Specifications |
|
|---|---|
| Axes Of Motion: | One |
| Travel Range: | 0.03 mm |
| Load Capacity (Horizontal): | 0.01 kg |
| Load Capacity (Vertical): | Not Specified |
| Max Speed: | Not Specified |
| Weight: | 0.1 kg |
| Guiding Mechanism: | Other |
| Voltage Requirement: | Other |
| Capacitance @300 K: | 0.8 uF |
| Resolution: | 0.5 nm |
| Linearity Error: | Typical ~ 0.1 % |
| Dimensions (WxHxD): | 16 x 16 x 6 mm |
| Temperature Range: | 1.4 to 400 K |
| Vacuum: | 2E-7 mbar (UHV version: 2E-11 mbar) |
| Max Magnetic Field: | 18 Tesla |
| Drive Voltage Max: | 75 V @300 K, Max 180 V @4 K |
Features
- Compact Design: 16 x 16 x 6 mm, ideal for space-constrained applications
- Vacuum & Low-Temperature Compatible: Works in ultra-high vacuum (2E-11 mbar) and at temperatures as low as 30 mK
- Non-Magnetic Materials: Made of pure titanium (Ti) and beryllium copper (BeCu), compatible with 18 Tesla magnetic fields
- High Load Capacity: Supports loads of up to 100 g
- Long Travel Range: Offers a 30 µm travel range at 300 K
- High Precision: Position sensing with 0.5 nm resolution for ultra-accurate movement
- Multiple Versions: Available in HV, ULT, and UHV configurations for different environmental needs
- Low Capacitance: 0.8 µF at 300 K for efficient operation
Applications
- Low-Temperature Physics: Ideal for cryogenic applications, including He3 and dilution cryogenics systems
- High-Vacuum Research: Compatible with ultra-high vacuum environments, perfect for experiments requiring vacuum pressures as low as 2E-11 mbar
- Magnetic Field Studies: Suitable for use in experiments with magnetic fields up to 18 Tesla
- Precision Motion Control: Ideal for applications requiring high-resolution motion control (0.5 nm resolution)
- Micro-manipulation: Excellent for tasks requiring precise movement of small components or samples in a controlled environment
Frequently Asked Questions
The Scanner16-z features a sophisticated closed-loop control system and integrated position sensing, ensuring smooth and accurate movement across various applications.
The Scanner16-z is available in several versions, including options for low temperatures and high vacuums, catering to a diverse range of application requirements.
Given its features and capabilities, the Scanner16-z is versatile for a variety of applications in fields such as scientific research, medical equipment, and semiconductor manufacturing where precision and adaptability to extreme conditions are essential.
The Scanner16-z is constructed from non-magnetic materials, specifically pure Ti & BeCu, making it compatible with magnetic fields up to 18 Tesla and suitable for various environments and applications.
