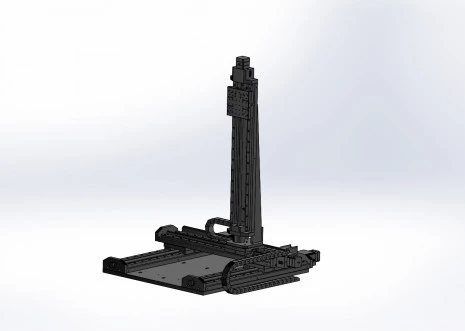

Txx series motorized supporting frame systems
Description
The Zolix Txx Series Motorized Supporting Frame Systems are precision-engineered, modular solutions for high-accuracy motion control in multi-axis applications. Designed with dual-X or dual-Z axis configurations, these systems utilize a dual-side driven mechanism that ensures excellent motion stability and uniform driving force distribution. The Txx series supports a variety of motor types, including stepping and servo motors, and accommodates both horizontal and vertical motion requirements with customizable travel ranges up to 1200 mm.
Integrated tow chains come standard, simplifying cable management while delivering a clean system layout. The modular structure enables easy maintenance, and tailored configurations are available to meet specific application needs. Whether for large-format positioning or compact XYZ control, Txx systems are ideal for automation, precision manufacturing, optical alignment, and semiconductor applications.
With its high loading capacities (up to 20 kg) and sub-10 µm repositioning accuracy, the Txx Series stands as a robust, scalable motion platform suitable for demanding industrial environments where repeatability and structural integrity are critical.
Txx series motorized supporting frame systems
Specifications |
|
|---|---|
| Axes Of Motion: | One |
| Travel Range: | 50 mm |
| Load Capacity (Horizontal): | 20 kg |
| Load Capacity (Vertical): | 20 kg |
| Max Speed: | 20 mm/s |
| Weight: | Not Specified |
| Guiding Mechanism: | Other |
| Voltage Requirement: | Other |
| Repositioning Accuracy: | ≤±3 um |
Features
- Dual-Side Driven Design: Ensures consistent motion and balanced force distribution
- Versatile Motor Options: Compatible with both stepping and servo motors for flexible integration
- Modular Architecture: Simplifies installation, maintenance, and system scalability
- Standard Cable Tow Chains: Integrated cable routing for cleaner setups and easier handling
- Custom Configurations Available: Tailored designs to meet unique operational requirements
- Wide Travel Range: Supports axis travel from 50 mm to 1200 mm
Applications
- Precision Optical Alignment: Enables micron-level positioning for photonics and metrology setups
- Automation Systems: Supports large-scale motion in assembly and inspection systems
- Semiconductor Processing: Facilitates accurate wafer handling and substrate positioning
- Multi-Axis Test Platforms: Ideal for programmable XYZ testing environments
- Research & Development: Suitable for prototyping and lab-scale precision motion control
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2020
Frequently Asked Questions
The typical configurations include dual-X, dual-Z axis, or the combination of them.
Txx series motorized supporting frame systems offer multi optional selections of driving devices, such as servo motors and linear-driven motors.
Yes, the default set of tow chain is standard and offers a nicer appearance and easy installation of cables.
Yes, Txx series motorized supporting frame systems have a modular design that allows for easy maintenance.
Yes, customer-designed proposals are acceptable for Txx series motorized supporting frame systems.
