Description
The PT-GD130P series motorized positioning stages are engineered for precision and performance. Featuring a high-precision ball screw, these stages deliver superior motion control and are supported by precise linear ball bearings, ensuring accurate linear motion and enhanced load capacity.
Constructed from high-strength aluminum alloy, the PT-GD130P series is designed for extensive travel range applications, making it a robust choice for demanding environments. It includes original position and limit switches at both ends, which provide precise positioning and added protection for the equipment.
Ideal for applications requiring lengthy travel and substantial load capabilities, such as measurement and inspection tasks. The integrated microswitches facilitate homing and offer overdrive protection in both forward and reverse directions, enhancing the functionality and safety of the stages.

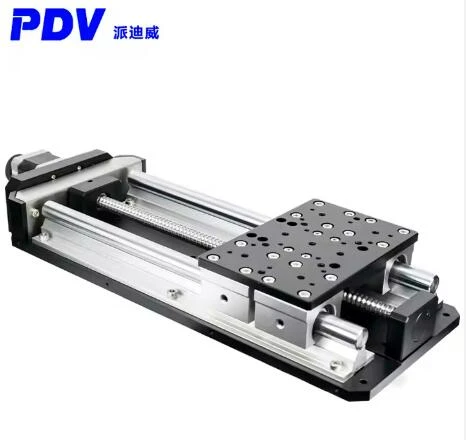

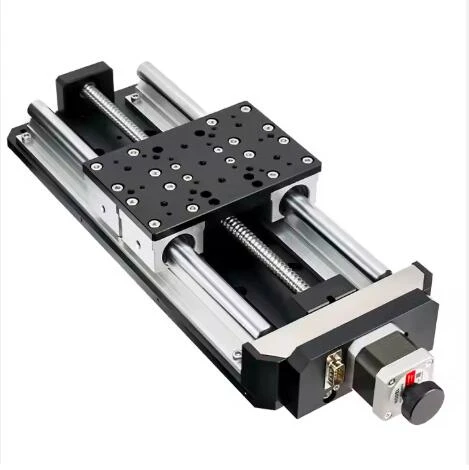

PT-GD130P-150 Miniature Motorized Linear Translation Stage for High Precision Applications
Beijing PDV Instrument Co., Ltd

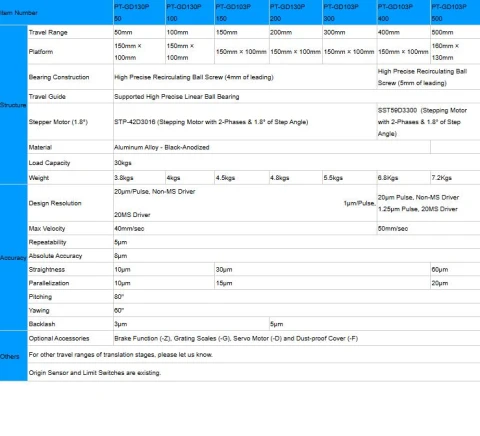

Specifications
| Axes Of Motion: | One |
|---|---|
| Travel Range: | 150 mm |
| Load Capacity (Horizontal): | 30 kg |
| Load Capacity (Vertical): | 30 kg |
| Max Speed: | 40 mm/s |
| Weight: | 4.5 kg |
| Guiding Mechanism: | Other |
| Voltage Requirement: | Other |
| Travel Range: | 50 mm |
| Travel Range: | 100 mm |
| Travel Range: | 150 mm |
| Travel Range: | 200 mm |
| Travel Range: | 300 mm |
| Platform: | 90 x 90 mm |
| Platform: | 120 x 120 mm |
| Ball Screw Leading: | 4 mm |
| Stepper Motor: | 1.8° |
| Stepper Motor Model: | 42 stepper motor - SHINANO |
| Material: | Aluminum Alloy - Black-Anodized |
| Load Capacity: | 15 kgs |
| Load Capacity: | 10 kgs |
| Load Capacity: | 7 kgs |
| Load Capacity: | 5 kgs |
| Weight: | 2.75 kgs |
| Weight: | 3.4 kgs |
| Weight: | 4.5 kgs |
| Weight: | 5.2 kgs |
| Weight: | 6.3 kgs |
| Design Resolution: | 20μm/Pulse |
Download Data Sheet
Features
- Designed with limit switches and a zero switch to enhance product safety and provide operational convenience.
- Equipped with a standard interface for straightforward signal output.

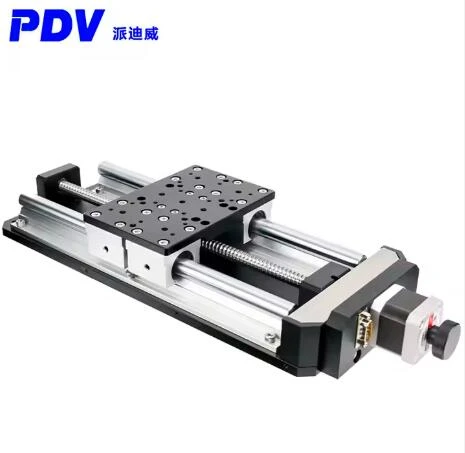

- Features a hand-wheel at the back of the motorized stages for easy manual adjustments.
- Includes standard mounting holes for easy integration with other units, ensuring convenience for multi-dimensional systems.
- Comes with a standard stepper motor and DB9 interface, allowing for flexible controller selection based on specific requirements.
- Utilizes high-quality grinding ball screws, linear slides, and elastic couplings to ensure reliable performance and quality assurance.
Applications
- Institute laboratories for precision experiments
- Industrial automation for precise positioning and processing
- Research facilities conducting precision experiments
- Any field requiring precise motorized movement and positioning
Frequently Asked Questions
What is the travel range of the Motorized Linear Stage?
The travel range of the Motorized Linear Stage varies from 50mm to 300mm, depending on the model.
What type of motor is used in the Motorized Linear Stage?
The Motorized Linear Stage uses a 42 stepper motor from SHINANO with a 1.8° step angle.
What materials are used in the construction of the Motorized Linear Stage?
The Motorized Linear Stage is made from black-anodized aluminum alloy.
What is the load capacity of the Motorized Linear Stage?
The load capacity varies by model: 15kgs for 50mm travel, 10kgs for 100mm travel, 7kgs for 150mm travel, 5kgs for 200mm travel, and 5kgs for 300mm travel.
Can the Motorized Linear Stage be combined for multi-axis movement?
Yes, the Motorized Linear Stage can be stacked in XY, XZ, and XYZ configurations by using 2 or 3 pieces.
What is the design resolution of the Motorized Linear Stage?
The design resolution of the Motorized Linear Stage is 20μm per pulse.
Does the Motorized Linear Stage have any safety features?
Yes, it includes original position and limit switches at both ends for precision positioning and protection.
