Description
Introducing the Scanner55-xy, a cutting-edge piezoelectric scanner stage, designed to meet the most demanding application needs in both low-temperature and high-vacuum environments. With its compact footprint, this high-load scanner stage seamlessly integrates into your setup, providing a blend of precision and versatility. The unit is crafted from non-magnetic materials such as pure Ti and BeCu, ensuring compatibility with high magnetic fields up to 18 Tesla.
Equipped with advanced features, the Scanner55-xy offers a high load capacity of 500g and an extended travel range of 120*120 um at 300 K, making it a preferred choice for applications requiring substantial movements and support for heavier components. Furthermore, the stage is capable of achieving high-resolution position sensing up to 2 nm, promising accuracy and reliability in every operation.
Whether you're working in cryogenics, conducting research in high vacuum, or tackling applications in strong magnetic fields, the Scanner55-xy stands out as a dependable and high-performance solution, ready to elevate your results to new heights.

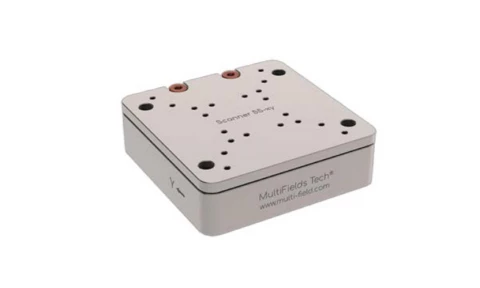

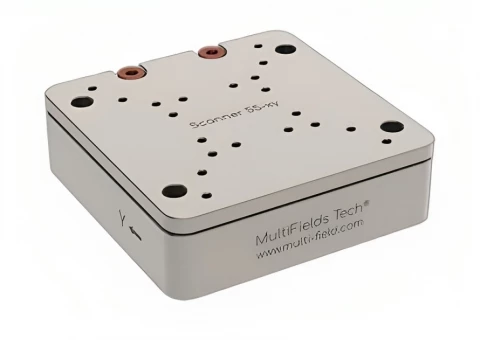

Scanner55-xy: Ultra-High Load Piezoelectric Scanner Stage for Low Temperature & High Vacuum Environments
Specifications
| Axes Of Motion: | One |
|---|---|
| Travel Range: | 0.12 mm |
| Load Capacity (Horizontal): | 0.5 kg |
| Load Capacity (Vertical): | Not Specified |
| Max Speed: | Not Specified |
| Weight: | 0.15 kg |
| Guiding Mechanism: | Other |
| Voltage Requirement: | Other |
| Capacitance @300 K: | 7 uF |
| Resolution: | 2 nm |
| Linearity Error: | Typical ~ 0.1 % |
| Dimensions (WxHxD): | 55 x 55 x 15 mm |
| Temperature Range: | 1.4 to 400 K |
| Vacuum Compatibility: | 2E-7 mbar (UHV version: 2E-11 mbar) |
| Max Magnetic Field: | 18 Tesla |
| Drive Voltage: | Max 75 V @300 K, Max 180 V @4 K |
| Materials (Main Body): | Pure Ti, BeCu |
Got questions about specs? Use the inquiry form to ask.
Download Data Sheet
Features
- Compact Design: The Scanner55-xy is designed to be compact with dimensions of 55*55*15 mm, making it suitable for a variety of applications where space optimization is crucial.
- Compatibility with Extreme Conditions: It is compatible with ultra-high vacuum conditions (2 E-11 mbar) and very low temperatures (30 mK), allowing for its use in demanding environments and specialized applications.
- Non-Magnetic Materials: The stage is composed of pure Ti and BeCu, ensuring its compatibility with magnetic fields up to 18 Tesla and preventing magnetic interference.
- High Load Capacity: With the ability to support high loads up to 500g, this scanner stage is ideal for applications requiring the handling of heavier components or materials.
- Extended Travel Range: It offers a substantial travel range of 120*120 um at 300 K, facilitating movements over extended distances and making it versatile for various tasks.
- High-Resolution Position Sensing: Equipped with position sensing capabilities up to 2 nm resolution, the Scanner55-xy guarantees precise and accurate movements for critical applications.
Applications
- Cryogenic Research: Ideal for He3 and dilution cryogenics systems, with operation down to 30 mK
- High-Vacuum Environments: Suitable for experiments in ultra-high vacuum (UHV) environments with pressures down to 2E-11 mbar
- Nanotechnology: Excellent for precision positioning of nanoscale components with up to 2 nm resolution
- Magnetic Field Research: Works in magnetic environments up to 18 Tesla, ideal for high-field studies
- Precision Motion Control: Essential for experiments that require high-accuracy and repeatable motion control
Frequently Asked Questions
Is the Scanner55-xy compatible with very low temperatures and high vacuum conditions?
What materials is the Scanner55-xy composed of, and is it compatible with high magnetic fields?
What is the load capacity and travel range of the Scanner55-xy?
Does the Scanner55-xy offer high-resolution position sensing?
What are the main applications of the Scanner55-xy?
Got more questions? Use the inquiry form to ask the supplier directly.
