Description
Linear 25-x series piezo stage combines a compact size with excellent motion performance. They can be used in ultra-high vacuum and very low-temperature environments, they are made of non-magnetic material composed of pure Ti and BeCu. It is ideal for nano-positioning applications.

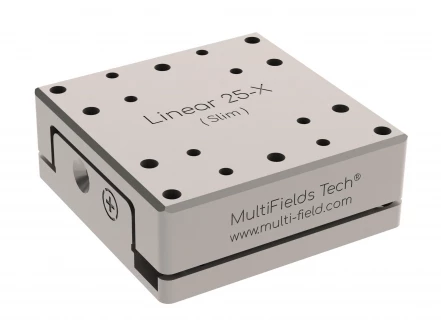

Low Temperature Piezoelectric Linear 25-x stage
Specifications
| Axes Of Motion: | One |
|---|---|
| Travel Range: | 6 mm |
| Load Capacity (Horizontal): | 0.5 kg |
| Load Capacity (Vertical): | 0.3 kg |
| Max Speed: | 3 mm/s |
| Weight: | 0.024 kg |
| Guiding Mechanism: | Other |
| Voltage Requirement: | DC 24V |
Got questions about specs? Use the inquiry form to ask.
Download Data Sheet
Features
- Compact design, dimensions: 25.4*25.4*9.5 mm
- Ultra-high vacuum & very low temperature compatible: 2 E-11 mbar & 30 mK
- Non-magnetic material Composed of pure Ti & BeCu, compatible with the 18 Tesla magnetic field
- High loads & high thrusts: 500 g & 2 N
- Long travel range: 6 mm
- Closed-loop control with position sensing up to 0.1 um resolution
Applications
Ideal for all kinds of nano-positioning applications. Can be used under high vacuum and magnetic fields.
Frequently Asked Questions
What are the dimensions of the Linear 25-x piezo stage?
The dimensions of the Linear 25-x piezo stage are 25.4*25.4*9.5 mm.
Can the Linear 25-x piezo stage be used in ultra-high vacuum environments?
Yes, the Linear 25-x piezo stage is compatible with ultra-high vacuum environments up to 2 E-11 mbar.
What is the maximum load that the Linear 25-x piezo stage can handle?
The Linear 25-x piezo stage can handle a maximum load of 500 g.
What is the travel range of the Linear 25-x piezo stage?
The Linear 25-x piezo stage has a travel range of 6 mm.
Does the Linear 25-x piezo stage have closed-loop control with position sensing?
Yes, the Linear 25-x piezo stage has closed-loop control with position sensing up to 0.1 um resolution.
Got more questions? Use the inquiry form to ask the supplier directly.
