Precise Motorized Linear Stages

Name: PA Series Precise Motorized Linear Stages
Brand: Zolix Instruments CO.,LTD
Availability: InStock

Description

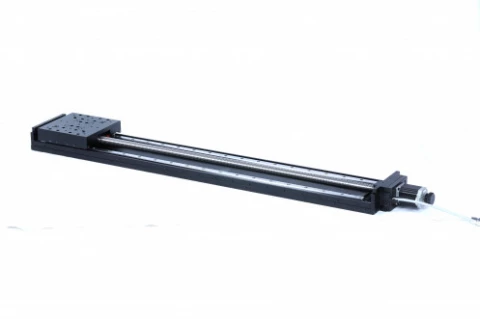

Zolix Instrument presents PS Series Precise Motorized Linear Stages

Our PA series products are designed as middle-size and middle-travel-range precise motorized stages. The base plates in this series employ high-rigidity U-type structure to ensure this product line would be suitable for the operations in the circumstances of heavy load, high rigidity and multi-dimension combinations.

A stainless-steel dustproof cover is optional to protect all inner parts of stages from particles and dust in real operation environments, which could guarantee better stability, durability and the capability to keep a long-term accuracy.

PA series products employ precise-grade ball screws, linear-slider guides and high performance shaft coupling units. This kind of design offers good adaptabilities for use in accurate operation scenarios in relatively harsh and complex environments.

Specifications

Axes Of Motion:	One
Travel Range:	50 mm
Load Capacity (Horizontal):	30 kg
Load Capacity (Vertical):	Not Specified
Max Speed:	50 mm/s
Weight:	Not Specified
Guiding Mechanism:	Crossed Roller Slides
Voltage Requirement:	DC 24V

Download Data Sheet

Features

PA series products come with the following features:

Fine machining for U-type aluminum alloy base plates, which are treated as black anodic oxidation. High rigidity and nice appearance
Precise-grade linear-slider guides are used to guarantee high load capability and high motion accuracy
Stainless-steel dustproof covers are optional
Two-phase stepping motors standard, servo motors (optional)

Applications

Broad range of precision motion control applications, such as optical alignment, laser optics, laser material processing, spectroscopy, time-resolved experiments in scientific research, biomedical applications, mechatronics, etc.

Add to Watchlist (My Watchlist)

Ships from:

China

Sold by:

Zolix Instruments CO.,LTD

On FindLight:

since 2020

Got Questions? Ask Above ▲

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply

Frequently Asked Questions

What is a motorized linear translation stage?

A motorized linear translation stage is a high precision positioning device used in scientific and industrial automation and control.

What kind of linear motorized translation stage design does the PA Series product line exhibit?

PA series products use precise-grade ball screws, linear-slider guides and high-performance shaft coupling units. This kind of design offers good adaptability to applications in accurate operation scenarios under harsh environments.

What type of motor do the PA Series products utilize?

Depending on the model. PA Series product line uses one of the following type of motors: two-phase 57-step stepper motor, two-phase 42-step stepper motor, Panasonic 100W AC servo motor, Yaskawa 200W AC servo motor.

Is the travel range fixed for PA Series stages?

No, based upon the model, PA Series stages have a travel range from 50 mm to 500 mm.

What material are PA Series Precise Motorized Linear Stages made of?

They are made of an aluminum allot with black anodization. For higher-grade, even more precise motorized linear stages, consider our stainless steel products.

What are the main characteristics of the PA series precise motorized linear stages?

The main characteristics of the PA series precise motorized linear stages include fine machining for U-type aluminum alloy base plates, high rigidity and nice appearance, precise-grade linear-slider guides for high load capability and motion accuracy, and optional stainless-steel dustproof covers.

What applications are the PA series precise motorized linear stages suitable for?

The PA series precise motorized linear stages are suitable for a broad range of precision motion control applications, such as optical alignment, laser optics, laser material processing, spectroscopy, time-resolved experiments in scientific research, biomedical applications, and mechatronics.

What is the naming rule for the PA series precise motorized linear stages?

The naming rule for the PA series precise motorized linear stages includes a description of the product, the travel range, type of protection (optional), type of motor (optional), and position of sensors (optional).

What type of motors are included with the PA series precise motorized linear stages?

The PA series precise motorized linear stages come standard with two-phase stepping motors, but servo motors are also available as an optional upgrade.

Are there any optional accessories available for the PA series precise motorized linear stages?

Yes, there is an optional stainless-steel dustproof cover available to protect the inner parts of the stages from particles and dust in real operation environments, ensuring better stability, durability, and long-term accuracy.
