Description
Zolix Motorized XY Series All-in-One Two-Axis Stages are designed and optimized for applications involving two dimensional motion control with high-precision and high repetition rate scanning.
XY series products are designed according to all-in-one principle and employ cross-roller guides and ball screws to construct transmission mechanism to ensure high orthogonality and motion accuracy.

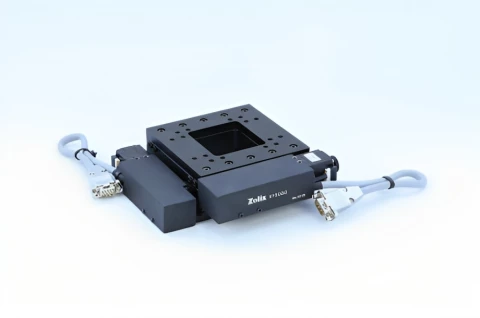

A distinct character of this series is the large size rectangular through hole at the center of the stage. Optional glass or aluminum-alloy cover could help customers to realize scanning or alignment in transmission or reflection mode separately.
Should you want to learn more, get a price estimate, or inquire about custom features of our 2-axes stages, please request a quote on this product page.
Motorized XY Series All-in-One Two-Axis Stages
Specifications
| Axes Of Motion: | Two |
|---|---|
| Travel Range: | 50 mm |
| Load Capacity (Horizontal): | 4 kg |
| Load Capacity (Vertical): | Not Specified |
| Max Speed: | 40 mm/s |
| Weight: | 2.2 kg |
| Guiding Mechanism: | Crossed Roller Slides |
| Voltage Requirement: | DC 24V |
Download Data Sheet
Features
Our motorized two-axis stages come with the following features:
- Using ball screws to meet requirements of high-precision and high repetition-rate applications
- Better motion accuracy is guaranteed by employing cross-roller guides
- Rectangular through hole is provided, with optional glass or aluminum-alloy cover
- Two-phase stepping motors are standard. Five-phase stepping or servo motors are optional
Applications
- Mechatronics
- Robotics
- Laser optics
- Spectroscopy
- Semiconductor equipment
- OEM for a wide range of motion control needs
Frequently Asked Questions
What is a linear motorized translation stage?
A linear translation stage is a precision device used in scientific and industrial applications for precise and accurate positioning of objects. Linear translation stages can be manual or motorized depending on the needs of the specific application.
What is a 2D or two-axis motorized stage?
As the naming suggests, 2D or two-axis motorized staged are linear translation stages with X and Y translational motion.
What kind of motors do the motorized stages use?
Over time, various types of motors have been designed for motion control purposes. Typically, one will find one of the following types of motors on 1D, 2D, 3D motorized stages: linear, piezo, DC, stepper, brushless. Based upon the requirements of the application, it might be necessary to carefully compare the performance of the motor types to select the right one. If budget is not an issue, one can achieve the best results on speed, resolution, repeatability, and load capacity with linear motors.
What are the main features of the Motorized XY Series All-in-One Two-Axis Stages?
The main features of the Motorized XY Series All-in-One Two-Axis Stages include the use of ball screws for high-precision and high repetition-rate applications, cross-roller guides for better motion accuracy, and a rectangular through hole with optional glass or aluminum-alloy cover.
What are the applications of the Motorized XY Series All-in-One Two-Axis Stages?
The Motorized XY Series All-in-One Two-Axis Stages are suitable for applications in mechatronics, robotics, laser optics, spectroscopy, semiconductor equipment, and OEM for a wide range of motion control needs.
What type of motors are included with the Motorized XY Series All-in-One Two-Axis Stages?
The standard motors included with the Motorized XY Series All-in-One Two-Axis Stages are two-phase stepping motors. However, optional five-phase stepping motors or servo motors are also available.
Can the Motorized XY Series All-in-One Two-Axis Stages be customized?
Yes, the Motorized XY Series All-in-One Two-Axis Stages can be customized. Customers can request a quote on the product page to inquire about custom features.
What is the naming rule for the Motorized XY Series All-in-One Two-Axis Stages?
The naming rule for the Motorized XY Series All-in-One Two-Axis Stages includes indicating the travel range of the X and Y axes, the type of motors (stepping or servo), and the series code (XY or XYR). Optional features such as a central light-through hole or covers are also indicated in the naming.
