Description
The Linear 16-x is the smallest linear stage with closed control, it can be used in ultra-high vacuum and very low temperature, it features 0.1 um resolution.

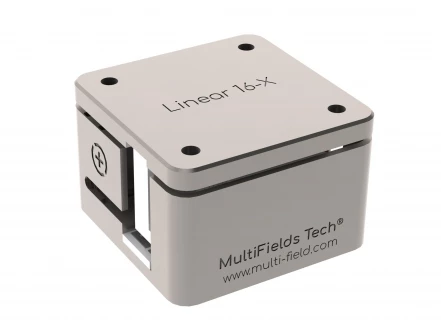

Low Temperature Piezoelectric Linear 16-x stage
Specifications
| Axes Of Motion: | One |
|---|---|
| Travel Range: | 3 mm |
| Load Capacity (Horizontal): | 0.05 kg |
| Load Capacity (Vertical): | 0.01 kg |
| Max Speed: | 2 mm/s |
| Weight: | 0.01 kg |
| Guiding Mechanism: | Other |
| Voltage Requirement: | Other |
| Repeatibility: | 1-2 um |
Got questions about specs? Use the inquiry form to ask.
Download Data Sheet
Features
- Compact design, dimensions: 16*16*10.5 mm
- Ultra-high vacuum & very low temperature compatible: 2 E-11 mbar & 30 mK
- Non-magnetic material Composed of pure Ti & BeCu, compatible with the 18 Tesla magnetic field
- High loads & high thrusts: 50 g & 1.5 N
- Long travel range: 3 mm
- Closed-loop control with position sensing up to 0.1 um resolution
Applications
This piezoelectric linear stage is the ideal choice for applications where compact design and high resolution are important.
This piezoelectric linear stage can be used in industrial production lines exhibiting high repetition retes.
Frequently Asked Questions
What are the dimensions of the Linear 16-x stage?
The dimensions of the Linear 16-x stage are 16*16*10.5 mm.
What is the vacuum compatibility of the Linear 16-x stage?
The Linear 16-x stage is compatible with ultra-high vacuum up to 2 E-11 mbar.
What is the temperature compatibility of the Linear 16-x stage?
The Linear 16-x stage is compatible with very low temperatures down to 30 mK.
What is the maximum load capacity of the Linear 16-x stage?
The Linear 16-x stage can handle high loads up to 50 g.
What is the resolution of the position sensing in the Linear 16-x stage?
The Linear 16-x stage has a position sensing resolution of 0.1 um.
Got more questions? Use the inquiry form to ask the supplier directly.
