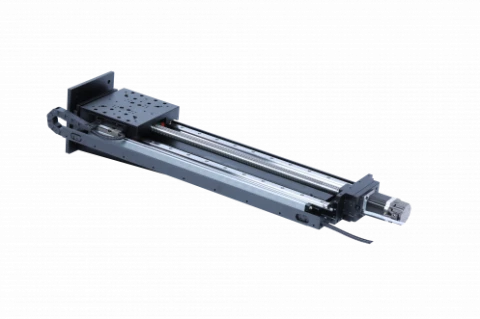

High-Precision Motorized Vertical Motion Stages

Description

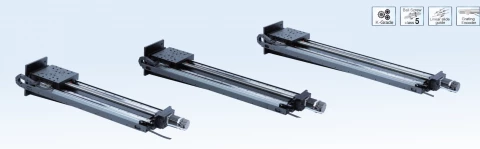

KAxx-Z series high-precision motorized vertical-motion stages are derivative models of Zolix's KA-11-X products. An added right-angle fixing block and a set of power-failure protection unit ensure KAxx-Z series stages can be used as high-precision vertical-motion carriers.

Except for motion direction and loading capability, others are the same as those of standard KSA products. KAxx-Z is used for fine adjustments in the Z-direction.

Specifications

Axes Of Motion:	One
Travel Range:	50 mm
Load Capacity (Horizontal):	Not Specified
Load Capacity (Vertical):	15 kg
Max Speed:	40 mm/s
Weight:	8.4 kg
Guiding Mechanism:	Crossed Roller Slides
Voltage Requirement:	DC 24V
Consuming Current:	<60 mA
Length Of Cables For Stages:	0.2 m
Torque Of Motor:	1.3 N·m
Working Current:	2.0 A
Motor And Its Stepping Angle (°):	Two-phase 57 stepping motor, 1.8
Motion Linearity:	≤10 µm
Backlash Clearance:	≤5 µm
Repositioning Accuracy:	≤±3 µm
Single-direction Positioning Accuracy:	≤3 µm
20-fine-subdivision Resolution:	1 µm
Closed-cycle Resolution:	1 µm
Main Body Materials And Surface Treatments:	Black anodic-oxidation aluminum-alloy
Guides (Guiding Mechanism):	Linear-slider guides
Transmission Mechanism:	Precise ball screws Φ12×4
Table Dimensions:	120x120 mm

Download Data Sheet

Features

High-precision motorized vertical-motion stages

Added right-angle fixing block for stability

Power-failure protection unit for reliability

Fine adjustments in the Z-direction

Compatible with multi-axis systems

Designed for motorized goniometers

Suitable for 2D or 3D motorized alignment stages

Applications

Precision optics alignment

Microscopy and imaging

Semiconductor manufacturing

Metrology and quality control

Research and development

Industrial automation

Add to Watchlist (My Watchlist)

Ships from:

China

Sold by:

Zolix Instruments CO.,LTD

On FindLight:

since 2020

Got Questions? Ask Above ▲

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply

Frequently Asked Questions

What are motorized vertical motion stages?

Motorized vertical stages provide automated height adjustment. They can be designed for pure height adjustment or in an inclined design for xz control. Also, these stages can be added to linear stages to create xz, yz, and xyz stage stacks for many positioning applications in scientific and industrial applications.

What is the stage of KAxx-Z Series High-Precision Motorized Vertical Motion Stages made of?

They are made of black anodized aluminum alloy.

How fast can these motorized stages move?

Generally, motorized linear stages have a speed in a wide range, depending on the design. This specific product line provides 40mm/sec and 50mm/sec speed.

What's important to consider when selecting a linear motorized stage, vertical or horizontal?

There are multiple parameters to carefully consider before you choose a linear motorized stage. The following are the key specifications: resolution, positioning accuracy, positioning repeatability, stage speed, reliability (lifetime), motion parallelism, and certainly cost.

What is the travel range of the KAxx-Z series motorized vertical-motion stages?

The travel range of the KAxx-Z series motorized vertical-motion stages ranges from 50mm to 1000mm.

What are the dimensions of the table (stage) area for the KAxx-Z series stages?

The table (stage) area for the KAxx-Z series stages ranges from 100mm x 100mm to 200mm x 200mm.

What are the applications of the KAxx-Z series motorized vertical-motion stages?

The KAxx-Z series motorized vertical-motion stages are applicable in various fields such as semiconductor manufacturing, spectroscopy, microscopy, laser material processing, and more.

What is the highest speed of the KAxx-Z series stages?

The highest speed of the KAxx-Z series stages is 40mm/s.

What is the accuracy specification for the repositioning accuracy of the KAxx-Z series stages?

The repositioning accuracy of the KAxx-Z series stages is ≤±3µm.
