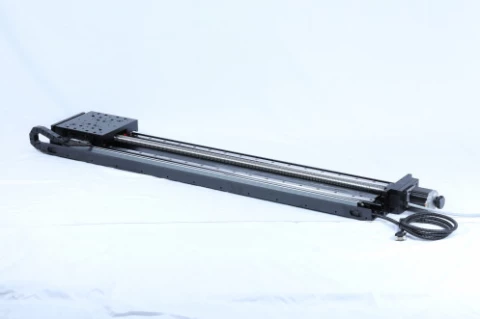

Thumbnail of KA Series High-Precision Motorized Linear Stages photo 1

Description

Zolix Instrument presents KA Series High-Precision Motorized Linear Stages

Our KA series products are designed as a group of middle-size and middle-travel range high precision motorized stages. The base plates in this series employ high rigidity U-type structure to ensure this series could be suitable for the operations in the circumstances of heavy load, high rigidity and multi-dimension combinations.

A stainless-steel dustproof cover is optional to protect all inner parts of stages from particles and dust in real operation environments, which could guarantee better stability, durability and the capability to keep a long-term accuracy.

KA series products employ precise-grade ball screws, linear-slider guides and high performance Shaft coupling units. This kind of design offers good adaptabilities for being used in accurate operation scenarios with relative complex environments.

An external grating ruler is used with Zolix controllers MC600 or TMC-USB to ensure 1µm closed-cycle resolution. The other key specifications of this series are also same or similar as those best ones worldwide.

KA Series High-Precision Motorized Linear Stages

Visit the Zolix Instruments CO.,LTD Store

Specifications

Axes Of Motion: One
Travel Range: 50 mm
Load Capacity (Horizontal): 30 kg
Load Capacity (Vertical): Not Specified
Max Speed: 50 mm/s
Weight: 6.6 kg
Guiding Mechanism: Crossed Roller Slides
Voltage Requirement: DC 24V

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

Our KA series product line exhibits the following features:

  • High precision ball screw and linear-slider guide
  • Aluminum alloy and closed-cycle control designed for the most demanding motion control applications.
  • Broad travel range based on the mode: 50mm to 400mm Position limit sensors
  • Home position sensor

Applications

KA Series High-Precision Motorized Linear Stages find applications in many high-precision motion control applications in scientific, engineering, and industrial fields.

Some of these applications are as follows: mechatronics, semiconductor manufacturing and inspection, metrology, time-resolved laser spectroscopy, microscopy, imaging, biomedical engineering, laser surgery, and more.

Frequently Asked Questions

What kind of motor is used in KA Series motorized linear stages?
If no specific motor type is called out by the customer, the default option is a two-phase 57-stepp stepper motor. Otherwise, the following additional options are also available: ST242 two-phase 42 stepper motor, ASP1 Panasonic 100W AC servo motor, ASY2 Yaskawa 200W AC servo motor
Is a dust cover provided with these stages?
A dust cover can be added to the product as an option. Please let us know about your specific requirements and we will work with you on specifying all the equipment details that would meet your needs.
I am considering a purchase of a motorized linear stage for my experiment. What specifications I should pay attention to?
It pays off to carefully consider the specifications of motorized linear stages before you make your final decision. Generally, some of the most important specifications to review are the following: resolution, speed, positioning accuracy and repeatability, backlash clearance, static parallelism, stiffness, and certainly the cost.
What are the key features of the KA Series High-Precision Motorized Linear Stages?
The key features of the KA Series High-Precision Motorized Linear Stages include high precision ball screw and linear-slider guide, aluminum alloy and closed-cycle control designed for demanding motion control applications, and a broad travel range from 50mm to 400mm.
What applications are the KA Series High-Precision Motorized Linear Stages suitable for?
The KA Series High-Precision Motorized Linear Stages are suitable for high-precision motion control applications in scientific, engineering, and industrial fields. Some specific applications include mechatronics, semiconductor manufacturing and inspection, metrology, time-resolved laser spectroscopy, microscopy, imaging, biomedical engineering, and laser surgery.
What is the resolution of the KA Series High-Precision Motorized Linear Stages?
The KA Series High-Precision Motorized Linear Stages ensure a closed-cycle resolution of 1µm with the use of an external grating ruler and Zolix controllers MC600 or TMC-USB.
What are the naming rules for the KA Series High-Precision Motorized Linear Stages?
The KA Series High-Precision Motorized Linear Stages are named based on their description, which includes being designed as a group of middle-size and middle-travel-range high precise motorized stages. They also have a high rigidity U-type structure, optional stainless-steel dustproof covers, and employ precise-grade ball screws, linear-slider guides, and high-performance shaft coupling units.
What type of motors are used in the KA Series High-Precision Motorized Linear Stages?
The KA Series High-Precision Motorized Linear Stages come with two-phase stepping motors as standard, but servo motors are also optional.

Got more questions? Use the inquiry form to ask the supplier directly.
