Description
The Scanner25-xy Piezo-Linear Stage is a high-load scanner stage designed for low-temperature (LT) applications. It is part of the "25 mm Series" by MultiFields Technologies and offers precise and reliable motion control in extreme environments.
The piezo-linear stage features a compact design and closed-loop control system, making it suitable for demanding applications. It is compatible with ultra-high vacuum conditions, very low temperatures (down to 30 mK), and high magnetic fields (up to 18 Tesla). With a long travel range and position sensing up to 0.3 nm resolution, the Scanner25-xy delivers exceptional performance in challenging conditions.

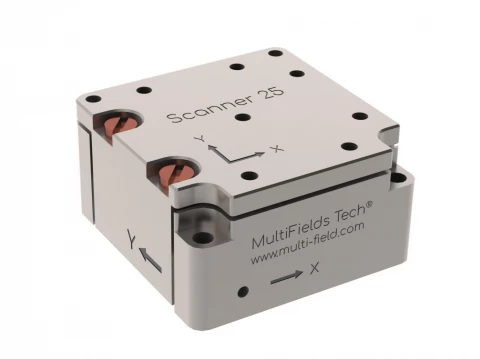

Scanner25-xy Low Temperature Piezo-Linear Stage
Specifications
| Axes Of Motion: | Two |
|---|---|
| Travel Range: | 0.12 mm |
| Load Capacity (Horizontal): | 0.2 kg |
| Load Capacity (Vertical): | 0.1 kg |
| Max Speed: | 2 mm/s |
| Weight: | 0.023 kg |
| Guiding Mechanism: | Other |
| Voltage Requirement: | DC 24V |
| Repeatability: | < 10 nm |
| Linearity Error Typical: | ~ 0.1 % |
| Sensor Resolution: | 0.3 nm |
| Capacitance @300 K: | 0.6 uF |
| Drive Voltage: | Max. 120 V @300 K, Max. 200 V @4 K |
| Pins: | 2 pins for each axis |
| Wires: | Phosphor Bronze Twisted Paired Wires, 20cm |
| Materials: | Pure Ti, BeCu |
| Max. Magnetic Field: | 18 Tesla |
| Vacuum: | 2e-7 mbar |
| Temperature Range: | 1.4 ~ 400 K |
| Footprint × Height: | 25 × 25 × 13.5 mm |
| Scanning Axies: | X,Y |
Download Data Sheet
Features
- Compact design: 25 × 25 × 13.5 mm dimensions
- Compatible with ultra-high vacuum and very low temperature environments
- Non-magnetic material composition for compatibility with high magnetic fields
- High load capacity: 200 g
- Long travel range at 300 K: 55 × 55 μm
- Closed-loop control with position sensing up to 0.3 nm resolution
Applications
- Cryogenic research
- Scanning probe microscopy
- Nano-manipulation
- Semiconductor characterization
- Quantum computing
- High-resolution imaging
Frequently Asked Questions
What are the dimensions of the Scanner series stages?
The dimensions of the Scanner series stages are 25*25*13.5 mm for the XY stages and 25*25*12 mm for the Z stage.
What is the working environment temperature range for the stages?
The working environment temperature range for the stages is 1.4 ~ 400 K.
What is the maximum load capacity of the stages?
The stages have a maximum load capacity of 200 g.
What is the resolution of the position sensing for the stages?
The stages have a position sensing resolution of up to 0.3 nm.
What is the compatibility of the stages with magnetic fields?
The stages are compatible with magnetic fields up to 18 Tesla.
