Page 7 - Pulsed DPSS Lasers

The Wedge-HB laser series is a sub-nanosecond, 4mJ, single shot to 2KHz, air-cooled laser capable of 4MW of peak power at 1064nm. Second, third and fourth harmonics options (532nm, 355nm and 266nm) and wavelength conversion option (1.5um) widen the Wedge’s applications range. Based on a proprietary fast active Q-Switching ...

Specifications

Avg. Power: 0.3 W
Wavelength: 266 nm
Repetition Rate: 0.001 – 2 kHz
Spatial Mode (M^2): 5
Pulse Duration: 1.5 ns
The Wedge HF is a compact, air-cooled nanosecond laser delivering up to 0.18mJ at 1064nm with 700ps pulses. 532nm (green), 355nm, 266nm, 1572nm and 3300nm are also available. Applications include thin film removal, micromachining, LIDAR, LIBS, 2nd to 4th harmonic generation, OPO pumping and laser scribing The Wedge-HF laser is a ...

Specifications

Avg. Power: 1.5 W
Wavelength: 532 nm
Repetition Rate: 10 – 100 kHz
Spatial Mode (M^2): 1.6
Pulse Duration: 0.75 ns
The Wedge-XB laser series is a sub-nanosecond, 4mJ, single shot to 2KHz, air-cooled laser capable of 4MW of peak power at 1064nm. Second, third and fourth harmonics options (532nm, 355nm and 266nm) and wavelength conversion option (1.5um) widen the Wedge’s applications range. Based on a proprietary fast active Q-Switching ...

Specifications

Avg. Power: 0.8 W
Wavelength: 1572 nm
Repetition Rate: 0.001 – 1 kHz
Spatial Mode (M^2): 2.5
Pulse Duration: 2.5 ns
Based on a proprietary fast active Q-Switching technology, these sealed DPSS lasers are insensitive to vibrations and harsh environments. The compact and lightweight package represents a great benefit in LIDAR and other aerospace applications, while short pulses and high peak powers, with relatively low heat generation, allows for ...

Specifications

Avg. Power: 0.5 W
Wavelength: 266 nm
Repetition Rate: 0.001 – 1 kHz
Spatial Mode (M^2): 5
Pulse Duration: 1.8 ns
The Wedge-XB laser series is a sub-nanosecond, 4mJ, single shot to 2KHz, air-cooled laser capable of 4MW of peak power at 1064nm. Second, third and fourth harmonics options (532nm, 355nm and 266nm) and wavelength conversion option (1.5um) widen the Wedge’s applications range. Based on a proprietary fast active Q-Switching ...

Specifications

Avg. Power: 0.6 W
Wavelength: 355 nm
Repetition Rate: Not Specified
Spatial Mode (M^2): 5
Pulse Duration: 1.5 ns
Wedge-XF-266 is a 266nm picosecond laser delivering sub-nanosecond (300ps) pulse trains. Wedge-XF series DPSS lasers are capable of producing 70uJ of pulse energy at 1064nm, with operation from single shot to 100 kHz, in a compact, air-cooled OEM solution. Second, Third and Fourth Harmonics (532, 355 and 266nm output) and ...

Specifications

Avg. Power: 0.05 W
Wavelength: 266 nm
Repetition Rate: 10 – 50 kHz
Spatial Mode (M^2): 1.5
Pulse Duration: 0.5 ns
The One series is a passively q-switched, DPSS nanosecond laser capable of up to 3W of average power, or 100uJ of pulse energy at 1030nm. An ultra-compact, high-peak-power pulsed laser, the One series can be either configured for maximum average power (up to 3W) with a variable repetition rate (up to 30kHz), for applications such as ...

Specifications

Avg. Power: 1 W
Wavelength: 1030 nm
Repetition Rate: Not Specified
Spatial Mode (M^2): 1.5
Pulse Duration: 10 ns
The Onda nanosecond laser series, available with up to 10W at 1064nm and 532nm, was developed as a high-energy seeder for advanced MOPA systems. The Onda is a DPSS ns-laser platform aimed at high-end applications requiring both excellent beam quality and high peak power in materials such as metals, glass, plastics, and various ...

Specifications

Avg. Power: 15 W
Wavelength: 1064 nm
Repetition Rate: Not Specified
Spatial Mode (M^2): 1.5
Pulse Duration: 2 ns
The Onda nanosecond laser series, available with up to 10W at 1064nm and 532nm, was developed as a high-energy seeder for advanced MOPA systems. The Onda is a DPSS ns-laser platform aimed at high-end applications requiring both excellent beam quality and high peak power in materials such as metals, glass, plastics, and various ...

Specifications

Avg. Power: 1 W
Wavelength: 266 nm
Repetition Rate: Not Specified
Spatial Mode (M^2): 1.5
Pulse Duration: 6 ns
The Onda nanosecond laser series, available with up to 10W at 1064nm and 532nm, was developed as a high-energy seeder for advanced MOPA systems. The Onda is a DPSS ns-laser platform aimed at high-end applications requiring both excellent beam quality and high peak power in materials such as metals, glass, plastics, and various ...

Specifications

Avg. Power: 0.3 W
Wavelength: 355 nm
Repetition Rate: Not Specified
Spatial Mode (M^2): 1.5
Pulse Duration: 3 ns

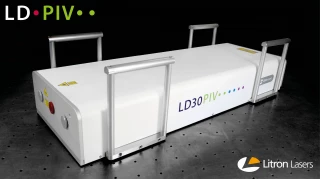

The LD-527-PIV series are diode pumped, dual cavity, Nd:YLF laser systems ideally suited to imaging applications such as PIV and to pump applications. Output energies of up to 30mJ, 527nm per cavity at 1kHz are available. The lasers are built around a rugged self supporting invar rail that bestows excellent mechanical and optical ...

Specifications

Avg. Power: 30 W
Wavelength: 527 nm
Repetition Rate: 0.2 – 20 kHz
Spatial Mode (M^2): 12
Pulse Duration: 120 ns
The LD-527-PIV series are diode pumped, dual cavity, Nd:YLF laser systems ideally suited to imaging applications such as PIV and to pump applications. Output energies of up to 30mJ, 527nm per cavity at 1kHz are available. The lasers are built around a rugged self supporting invar rail that bestows excellent mechanical and optical ...

Specifications

Avg. Power: 25 W
Wavelength: 527 nm
Repetition Rate: 0.2 – 20 kHz
Spatial Mode (M^2): 12
Pulse Duration: 180 ns
The LD-527 series are diode pumped, dual cavity, Nd:YLF laser systems ideally suited to imaging applications such as PIV and to pump applications. Output energies of up to 30mJ, 527nm per cavity at 1kHz are available. The lasers are built around a rugged self supporting invar rail ...

Specifications

Avg. Power: 10 W
Wavelength: 527 nm
Repetition Rate: 0.2 – 20 kHz
Spatial Mode (M^2): 12
Pulse Duration: 120 ns
The LD-527-PIV series are diode pumped, dual cavity, Nd:YLF laser systems ideally suited to imaging applications such as PIV and to pump applications. Output energies of up to 30mJ, 527nm per cavity at 1kHz are available. The lasers are built around a rugged self supporting invar rail that bestows excellent mechanical and optical ...

Specifications

Avg. Power: 15 W
Wavelength: 527 nm
Repetition Rate: 0.2 – 20 kHz
Spatial Mode (M^2): 12
Pulse Duration: 150 ns
The LD-527-PIV series are diode pumped, dual cavity, Nd:YLF laser systems ideally suited to imaging applications such as PIV and to pump applications. Output energies of up to 30mJ, 527nm per cavity at 1kHz are available. The lasers are built around a rugged self supporting invar rail that bestows excellent mechanical and optical ...

Specifications

Avg. Power: 20 W
Wavelength: 527 nm
Repetition Rate: 0.2 – 20 kHz
Spatial Mode (M^2): 12
Pulse Duration: 180 ns

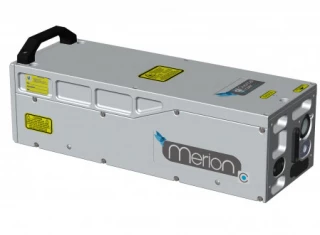

The Merion C is the newcomer in the Quantel laser diode-pumped nanosecond Nd:YAG range. This new DPSS laser combines all the advantages of the compact, powerful, reliable and cost-effective lasers you expect from Quantel laser. The Merion C delivers 100 mJ @ 1064 nm up to 400 Hz and can be equipped with fully ...

Specifications

Avg. Power: 40 W
Wavelength: 1064 nm
Repetition Rate: 0.2 – 0.4 kHz
Spatial Mode (M^2): Not Specified
Pulse Duration: 7 ns

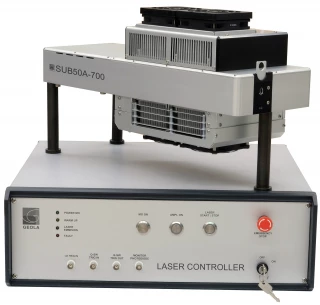

The SUB50A-700 model is an air-cooled Electro-Optically Q-switched DPSS 1064 nm laser delivering up to 50 mJ energy and 700 ps pulse duration at 20 Hz repetition rate. Laser design is based on short laser cavity direct pumping MO and power amplifiers with the VCSEL pump technology. The know-how on thermo-stabilized structure fixed MO ...

Specifications

Avg. Power: 1 W
Wavelength: 1064 nm
Repetition Rate: 0.02 – 0.1 kHz
Spatial Mode (M^2): 1.3
Pulse Duration: 0.7 ns
AONANO COMPACT - 532 laser, including 5 W and 10 W models, has pulse energy up to 100 μJ and repetition rate from 30 kHz to 150 kHz. The low frequency operation can be customized according to customer’s demand.  AONANO COMPACT-532 laser can be operated through TTL level signals and external control PWM pulse width ...

Specifications

Avg. Power: 5 W
Wavelength: 532 nm
Repetition Rate: 30 – 150 kHz
Spatial Mode (M^2): 1.2
Pulse Duration: 15 ns

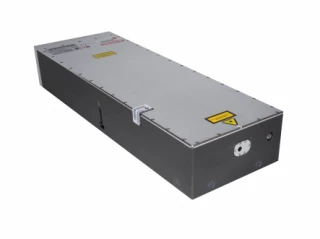

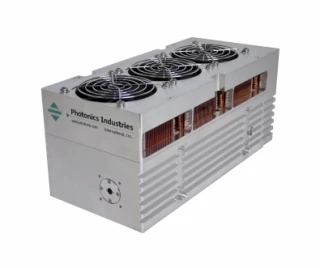

Introducing the DX Air-Cooled Series Nanosecond Lasers from Photonics Industries, a groundbreaking solution in the realm of DPSS lasers. These lasers are designed with a compact, air-cooled form factor, making them the most powerful air-cooled lasers available in the market today. With a volume of just 275 cubic inches and a weight ...

Specifications

Avg. Power: 1 W
Wavelength: 355 nm
Repetition Rate: 0.001 – 500 kHz
Spatial Mode (M^2): 1.1
Pulse Duration: 15 ns

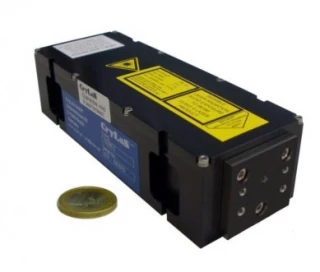

The FDSS 532-Q Crystal Laser System by CryLas GmbH represents a pinnacle in diode-pumped passively Q-switched solid-state laser technology. Designed to deliver precision and reliability, this laser system operates at a wavelength of 532 nm, making it an ideal choice for a variety of scientific and industrial applications. With its ...

Specifications

Avg. Power: 1500 W
Wavelength: 532 nm
Repetition Rate: 1 – 20 kHz
Spatial Mode (M^2): 3.5
Pulse Duration: 1.3 ns
