DX Air-Cooled Series Nanosecond Lasers

Name: DX Air-Cooled Series Nanosecond Lasers
Brand: Photonics Industries International, Inc.
Availability: InStock

Description

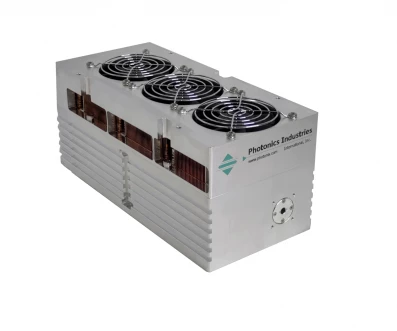

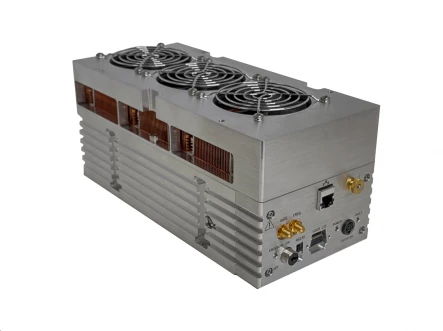

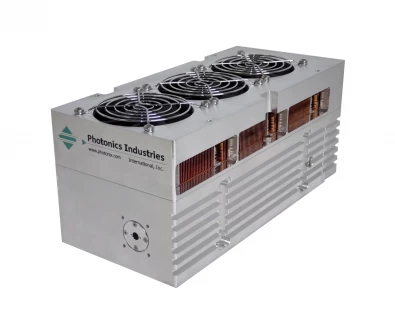

Introducing the DX Air-Cooled Series Nanosecond Lasers from Photonics Industries, a groundbreaking solution in the realm of DPSS lasers. These lasers are designed with a compact, air-cooled form factor, making them the most powerful air-cooled lasers available in the market today. With a volume of just 275 cubic inches and a weight of approximately 15.5 lbs (7 kg), these lasers deliver up to 10 W in UV and up to 20 W in green. For those requiring an even smaller footprint, the extra small DX Air-Cooled Series offers a volume of 152.1 cubic inches and weighs around 10 lbs (4.5 kg), providing 1 W UV and up to 2 W green output. This combination of power, efficient air-cooling, and minimal mechanical footprint makes the DX Air-Cooled Series an optimal choice for integration into industrial laser microprocessing systems.

The DX Air-Cooled Series is renowned for its exceptional performance in a variety of industrial applications. Its compact design does not compromise on power, making it the ideal laser source for tasks requiring micron-precision, such as marking and solar cell processing. The series is engineered to meet the demands of modern industrial environments, offering a reliable and efficient solution for a wide range of laser microprocessing applications.

As one of the smallest DPSS lasers available, the DX Air-Cooled Series stands out for its versatility and adaptability. Whether you are involved in intricate marking processes or complex solar cell structuring, this laser series provides the precision and reliability needed to achieve superior results. Its innovative design and robust capabilities ensure that it remains a preferred choice for industries seeking high-performance laser solutions.

Specifications

Avg. Power:	1 W
Wavelength:	355 nm
Repetition Rate:	0.001 – 500 kHz
Spatial Mode (M^2):	1.1
Pulse Duration:	15 ns
Pulse-to-Pulse Stability (RMS):	2 %
Cooling:	Air

Download Data Sheet

Features

Highest Powers Air-Cooled in the Market: Achieve up to 10 W UV and up to 20 W green, setting a new standard for air-cooled lasers.

Compact and Lightweight Design: Small form factor of 275 in3 (~15.5 lbs or ~7 kg) and extra small version at 152.1 in3 (~10 lbs or ~4.5 kg) for easy integration.

Short Pulse Widths: Delivering ~15 ns at 50 kHz and ~20 ns at 100 kHz for precise applications.

Wide Repetition Rate Range: From single shot up to 300 kHz for UV and up to 500 kHz for green, meeting high throughput demands.

Reliable, Low Cost of Ownership: Non-consumable design with patented intracavity harmonic UV & Green generation, eliminating harmful crystal indexing.

Excellent Beam Quality: TEM00 beam quality with typical M2 < 1.1 for superior performance.

Total Pulse Control: Features Duty Control for output power adjustment and PEC (Power or Pulse Energy Control).

Real-Time Power Monitoring and Calibration: Ensures consistent performance with auto power calibration.

Optional Water-Cooling: Available for applications requiring enhanced cooling capabilities.

Applications

Laser Marking & Etching: High-precision, on-the-fly processing.

Cutting, Drilling, Welding, Scribing: Metals, glass, ceramics, and thin films.

Solar Cell Structuring: P1 and P3 processing and wafer dicing.

3D Printing & SLA: UV laser stereolithography and rapid prototyping.

Flat Panel Display Repair: TFT drilling and thin display cutting.

Autonomous Systems & LIDAR: High-precision scanning and measurement applications.

Mass Spectrometry Systems: MALDI and other analytical systems.

Name

Work Email

Organization (recommended)

Your message to supplier

Get quotes from similar suppliers

Add to Watchlist (My Watchlist)

Ships from:

United States

Sold by:

Photonics Industries International, Inc.

On FindLight:

since 2021

Got Questions? Ask Above ▲

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply

Frequently Asked Questions

What is the power output of the DX Air-Cooled Series nanosecond lasers?

The DX Air-Cooled Series nanosecond lasers offer up to 10 W UV and up to 20 W green for the larger model, and average powers of 1 W UV and up to 2 W green for the extra small model.

What is the size and weight of the DX Air-Cooled Series nanosecond lasers?

The larger model has a small, air-cooled form factor of 275 in3 and weighs approximately 15.5 lbs or 7 kg. The extra small model has a form factor of 152.1 in3 and weighs approximately 10 lbs or 4.5 kg.

What are the applications of the DX Air-Cooled Series nanosecond lasers?

The DX Air-Cooled Series nanosecond lasers can be used for cutting, drilling, welding, scribing, marking, intra-marking, patterning, dielectric grooving, annealing, repair, laser marking on-the-fly (MOTF), laser etching, laser patterning, short pulse marking, high precision marking, DPSS laser marking systems, flat panel display repair, solar cell laser structuring, P1 & P3 solar cell processing, stereolithography (SLA), rapid prototyping 3D printing, UV laser 3D printing, mass spectrometry systems, MALDI, LIDAR, autonomous systems, 3-D scanning systems, thin display cutting & drilling, and thin film transistor (TFT) drilling.

What are the key features of the DX Air-Cooled Series nanosecond lasers?

The key features of the DX Air-Cooled Series nanosecond lasers include high power air-cooled UV and green ns laser, compact and efficient design, highest wall plug efficiency, shortest pulse width with rep rates up to 500 kHz, patented intracavity UV and green generation, highest pulse energy laser in the market, low power consumption, excellent beam quality, superior pulse stability, exceptional beam pointing stability, and a monolithic all-in-one (AIO) design.

Is there a water-cooled option available for the DX Air-Cooled Series nanosecond lasers?

Yes, there is a water-cooled option available for the DX Air-Cooled Series nanosecond lasers.
