Description

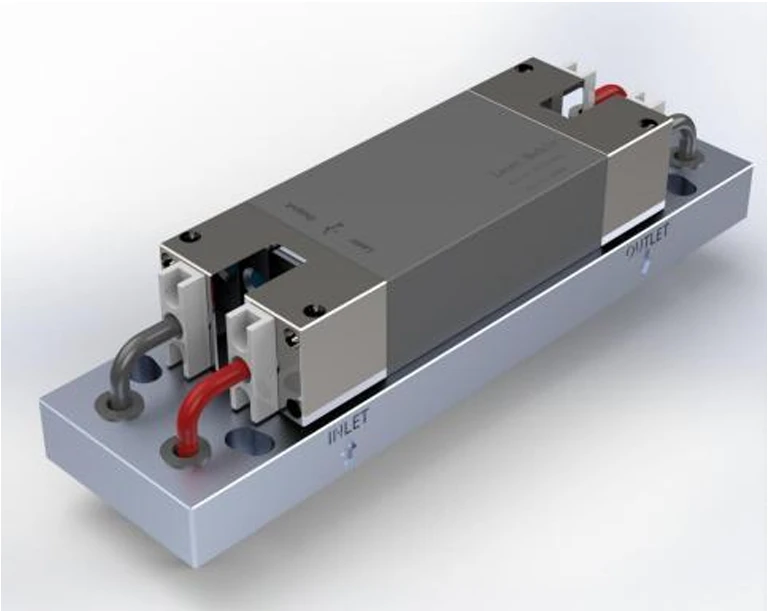

The 755nm Long Pulse Laser Module is a cutting-edge development by CRYSTECH, engineered specifically to meet the growing market demand for 755nm laser hair removal. Utilizing the unique properties of self-produced Alexandrite crystal materials, this laser module is designed with a focus on enhanced energy output and extended service life. The incorporation of a dual-lamp parallel pumping mode ensures that users benefit from greater energy efficiency and reliability.

At the core of the 755nm Long Pulse Laser Module is the Alexandrite crystal, which features a plano-concave resonant cavity design. This innovative approach results in a more compact and stable structure, facilitating easier operation and maintenance. The module's design not only enhances performance but also simplifies the overall handling of the equipment, making it an ideal choice for professionals seeking dependable and user-friendly laser technology.

With its sophisticated engineering, the 755nm Long Pulse Laser Module offers a harmonious blend of power and precision. Its robust construction and stability make it a valuable asset in various professional settings, ensuring that users can rely on it for consistent performance over time. Whether for clinical use or other professional applications, this laser module stands out as a premier choice in the field of advanced laser technology.

755nm Long Pulse Laser Module for Hair and Skin Treatments

Specifications

Avg. Power: 400 W
Wavelength: 755 nm
Repetition Rate: 0.005 – 0.01 kHz
Spatial Mode (M^2): Not Specified
Pulse Duration: 300000 ns
Pulse-to-Pulse Stability (RMS): 5 %
Cooling: Water-to-Water
Operating Mode: Dual-lamp parallel
Water Pressure: 0.25~0.3 MPa (35~42 psi)
Water Flow Rate: 11~15 L/min
Cooling Water Temperature: 50~60℃
Circulating Water Conductivity: < 20 μs/cm
Water Quality Requirement: Deionized water
Pumping Mode: Single pulse + group pulse combination
Power Supply Power: ~4000 W
Power Supply Type: IGBT
Wavelength: 755 nm
Injection Energy: ≤ 2000 J
Repetition Frequency: 0.5~10 Hz
Pulse Width: 0.3~300 ms
Energy Stability (RMS): ≤ 5%
Maximum Peak Power: 4000 W
Single Pulse Energy: 40 J
Beam Diameter: 7 mm

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Compact Structure & Easy Installation: Designed for straightforward setup and minimal space requirements.
  • High Single-Pulse Energy & High Peak Power: Delivers up to 40J of single pulse energy and a maximum peak power of 4000W.
  • Stable Energy & Long Service Life: Ensures consistent performance with energy stability (RMS) of ≤5% and extended operational lifespan.
  • Advanced Design: Utilizes a dual-lamp parallel pumping mode and a plano-concave resonant cavity for enhanced stability and compactness.
  • Versatile Applications: Ideal for laser hair removal, treatment of vascular and pigmented lesions, and laser skin rejuvenation.
  • Efficient Cooling System: Requires deionized water with specific parameters for optimal cooling and performance.
  • Technical Specifications:
    • Wavelength: 755nm
    • Beam Diameter: 7mm
    • Pulse Width: 0.3 to 300ms
    • Repetition Frequency: 0.5 to 10Hz
  • Safety Precautions: Ensure proper laser protection, correct output direction, and functional cooling system before operation.

Applications

  • Laser hair removal
  • Treatment of vascular lesions
  • Treatment of pigmented lesions
  • Laser skin rejuvenation

Frequently Asked Questions

What is the primary application of the 755nm Long Pulse Laser Module?
The primary applications include laser hair removal, treatment of vascular lesions, treatment of pigmented lesions, and laser skin rejuvenation.
What is the wavelength of the laser produced by this module?
The wavelength of the laser is 755nm.
What are the key features of the 755nm Long Pulse Laser Module?
The key features include a compact structure, easy installation, high single-pulse energy, high peak power, stable energy, and long service life.
What precautions should be taken during the operation of the laser module?
Precautions include ensuring laser protection during installation, paying attention to the laser output direction, and ensuring the cooling system is working properly before starting the laser module.
What is the maximum peak power of the laser module?
The maximum peak power of the laser module is 4000W.
What are the cooling system requirements for the laser module?
The cooling system requires deionized water with a conductivity of less than 20μs/cm, a water flow rate of 11-15L/min, a cooling water temperature of 50-60℃, and a water pressure of 0.25-0.3MPa (35-42psi).
What is the pulse width range of the laser module?
The pulse width range of the laser module is 0.3 to 300ms.
