PicoSpear 532nm Sub-Nanosecond Laser 500mW

Name: PicoSpear 532nm Sub-Nanosecond Laser 500mW
Brand: Teem Photonics
Availability: InStock

Description

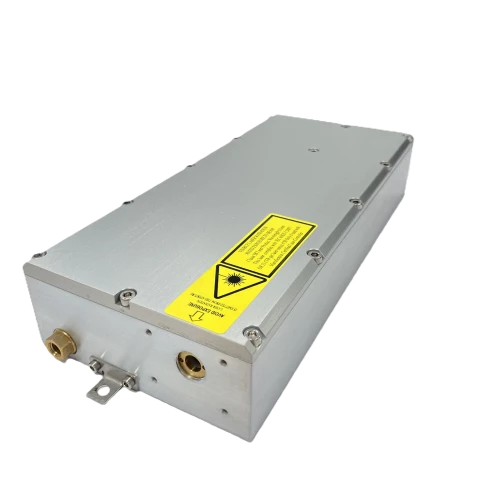

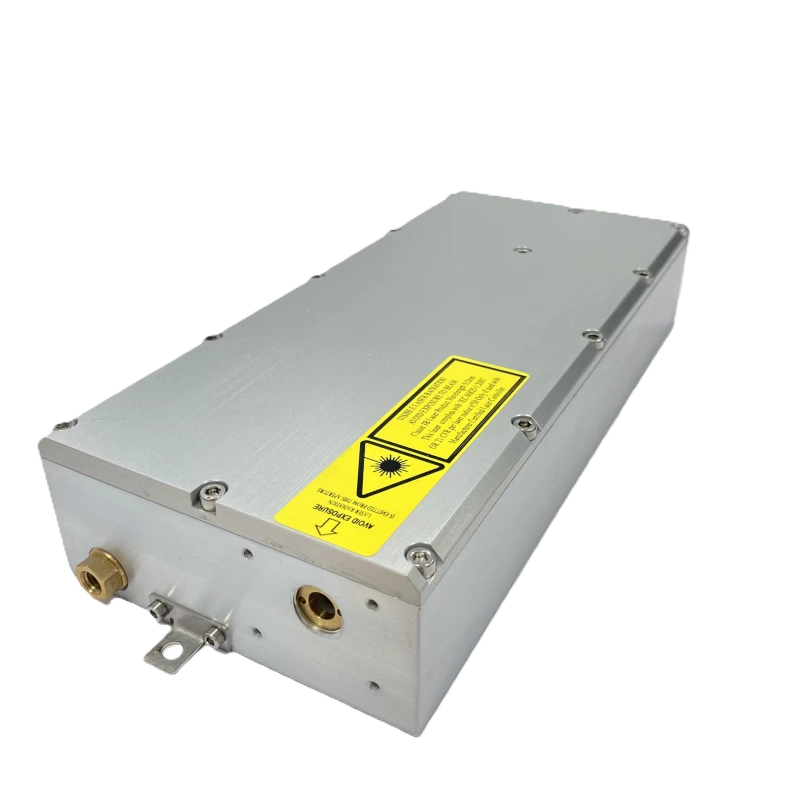

PicoSpear 532nm Sub-Nanosecond Laser 500mW is an amplified microchip pulsed DPSS laser by Teem Photonics

This laser represents a groundbreaking advancement in the realm of compact short-pulse MOPA lasers. Designed to deliver ultra-short pulses down to 650 picoseconds, this laser series ensures exceptional beam quality with a TEM00 mode and an M² value of less than 1.3. The PicoSpear Series is engineered to provide adaptable pulse energy, making it a versatile choice for various applications that demand precision and reliability. One of the standout features of the PicoSpear Series is its efficient air-cooled design, which ensures optimal performance without the need for complex cooling systems.

This design is complemented by a sealed package that promises long life and durability, making it a cost-effective solution for long-term use. The laser operates at a wavelength of 532 nm and can deliver power up to 500 mW, making it suitable for a wide range of scientific and industrial applications. The integration of Passively Q-Switched (PQS) microchip laser technology with compact amplification in the PicoSpear Series offers users control over pulse energy while maintaining consistent pulse width and shape. This flexibility allows for customization according to specific requirements, ensuring that the laser can be tailored to meet the unique needs of different projects.

Whether used for instrumentation, micromachining, or other advanced applications, the PicoSpear Series stands out as a reliable and adaptable pulsed laser solution.

Specifications

Avg. Power:	0.3 W
Wavelength:	532 nm
Repetition Rate:	20 – 20 kHz
Spatial Mode (M^2):	1.3
Pulse Duration:	0.75 ns
Pulse-to-Pulse Stability (RMS):	2 %
Cooling:	Air
Beam Quality:	TEM00, M² <1.3
Output Energy:	>15uJ
Peak Power:	>20kW

Download Data Sheet

Features

Environment Parameters

Operating Temperature Range: 10-40 °C

Maximum Power Consumption: <25 W

Storage Temperature: 0-50 °C

Shock of 11ms according to IEC 68-2-27, non-operating: 25 g

Vibration 5Hz to 500Hz sinusoidal according to IEC 68-2-6: 2 g

Applications

Instrumentation
- LIDAR and laser ranging
- Photopolymerization
- Atmospheric monitoring

Micromachining
- Material ablation at µm and nm scale
- PCB repair

Add to Watchlist (My Watchlist)

Ships from:

France

Sold by:

Teem Photonics

On FindLight:

since 2019

Got Questions? Ask Above ▲

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply

Frequently Asked Questions

What is the wavelength of the PicoSpear laser series?

The PicoSpear laser series operates at a wavelength of 532 nm, with options available for 1064 nm and 355 nm.

What is the pulse width of the PicoSpear laser?

The PicoSpear laser series can produce ultra-short pulses down to 650 picoseconds.

What is the maximum average power output of the PicoSpear laser?

The PicoSpear laser can achieve an average power output of up to 500 mW, depending on other settings.

What applications are suitable for the PicoSpear laser series?

The PicoSpear laser series is suitable for applications such as LIDAR and laser ranging, photopolymerization, atmospheric monitoring, material ablation at µm and nm scale, and PCB repair.

What is the beam quality of the PicoSpear laser?

The PicoSpear laser series offers excellent beam quality with a TEM00 mode and an M² value of less than 1.3.

Is the PicoSpear laser air-cooled?

Yes, the PicoSpear laser series is efficient and air-cooled.

Can the pulse energy of the PicoSpear laser be adjusted?

Yes, the PicoSpear laser series allows for adaptable pulse energy, providing control over the effective peak power while maintaining the pulse width and shape.
