Description

Discover the cutting-edge innovation of the SNG High Performances Green Microchip Series by Teem Photonics, designed to meet the demanding needs of modern applications. These microchip lasers are engineered to deliver high peak power green pulses in a compact and reliable package. With a focus on efficiency and longevity, the SNG series offers a remarkable solution for those seeking precision and performance in their laser technology.

The SNG series stands out for its ability to generate 532nm pulses through harmonic conversion from infrared systems, all within the same compact, sealed package. This design not only ensures consistent performance but also simplifies operation and maintenance. The versatility of the SNG series is further enhanced by its compatibility with various controllers, allowing for quick swaps and seamless integration into existing systems.

Built for high average power, the SNG series delivers multi-kilowatt peak power at repetition rates reaching up to 70kHz. This makes it an ideal choice for applications requiring ultrashort pulses and excellent beam quality. The air-cooled, efficient design ensures that the lasers maintain optimal performance over an extended lifespan, making them a cost-effective and reliable choice for a wide range of industries.

Teem Photonics is committed to providing accurate and up-to-date information, though specifications are subject to change. The SNG series represents the pinnacle of microchip laser technology, offering unparalleled performance and reliability for your pulsed laser needs.

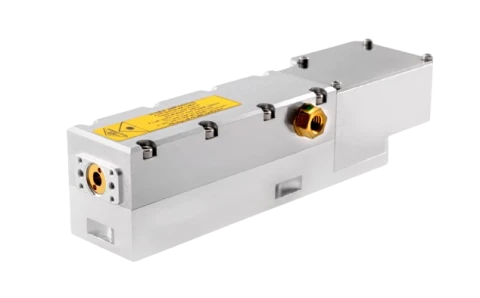

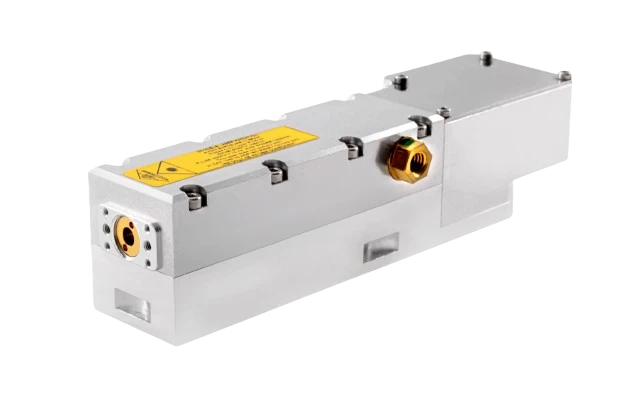

SNG-150P-100 High Performances Green Microchip Laser

Specifications

Avg. Power: 0.15 W
Wavelength: 532 nm
Repetition Rate: 29 – 29 kHz
Spatial Mode (M^2): 1.3
Pulse Duration: 0.75 ns
Pulse-to-Pulse Stability (RMS): 2 %
Cooling: Air
Beam Profile: Gaussian TEM00
Beam Ellipticity: <1.2
Polarization: Linear, PER>20dB
Output Energy: >5uJ
Peak Power: >7kW

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

For generating high peak power green pulses of a few hundred picoseconds, microchip lasers are economical, compact, and reliable. The 532nm pulses are produced by harmonic conversion from the IR systems, using the same compact sealed package for either wavelength. Microchips are also easy to operate and service; controllers can be used with every laser head model and swapped within minutes while conserving constant performances. The SNG series are designed for high average power, delivering multi-kW peak power at repetition rates up to 70kHz.

Applications

  • Material Processing
    • Cost effective marking solutions
    • Graphitization
  • Instrumentation
    • Ranging
    • Differential absorption LIDAR
    • Super-continuum generation
    • Distributed temperature sensing
    • Raman spectroscopy
  • Biophotonics
    • Nanosurgery
    • Protein cross-linking

Frequently Asked Questions

What is the repetition rate of the SNG High Performances Green Microchip Series?
The repetition rate of the SNG High Performances Green Microchip Series is up to 70 kHz.
What is the pulse duration of the lasers in the SNG series?
The lasers in the SNG series produce ultrashort pulses down to 500 picoseconds.
What is the beam quality of the SNG High Performances Green Microchip Series?
The beam quality is excellent, with TEM00 mode and M² less than 1.2.
What are some applications of the SNG High Performances Green Microchip Series?
Applications include material processing (such as cost-effective marking solutions and graphitization), instrumentation (such as ranging, differential absorption LIDAR, super-continuum generation, distributed temperature sensing, and Raman spectroscopy), and biophotonics (such as nanosurgery and protein cross-linking).
How are the 532nm pulses produced in the SNG series?
The 532nm pulses are produced by harmonic conversion from the IR systems, using the same compact sealed package for either wavelength.
Are the SNG series lasers easy to operate and service?
Yes, the microchip lasers are economical, compact, reliable, and easy to operate and service. Controllers can be used with every laser head model and swapped within minutes while maintaining constant performance.
What is the cooling method used in the SNG High Performances Green Microchip Series?
The SNG High Performances Green Microchip Series is air-cooled.

Got more questions? Use the inquiry form to ask the supplier directly.
