Name: 213nm Pulsed DPSS Laser PND-M00210
Brand: Teem Photonics
Availability: InStock

Description

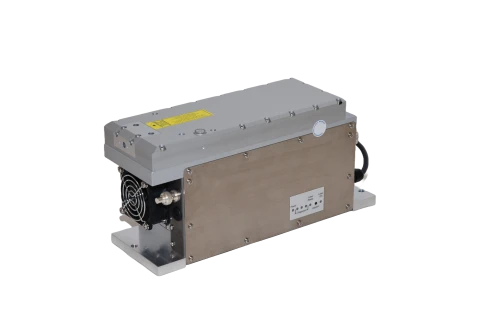

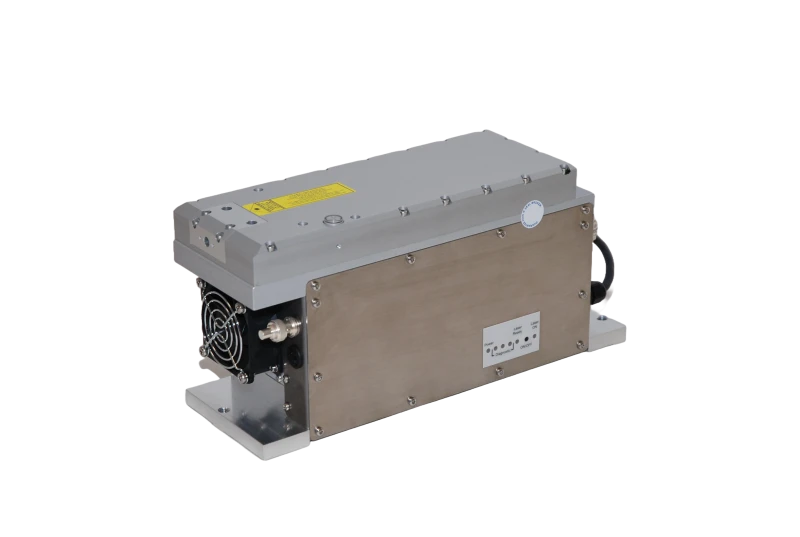

DUV pulsed laser: 213nm Pulsed DPSS Laser PND-M00210

The PowerChip™ passively Q-switched MicroChip lasers offer the highest peak powers and shortest pulses at kilohertz repetition rates with an excellent beam quality. They feature a completely integrated platform which includes the laser head, power supply and air cooling in a compact, rugged, and turnkey package.

Specifications

Avg. Power:	0.8 W
Wavelength:	213 nm
Repetition Rate:	0.4 – 0.4 kHz
Spatial Mode (M^2):	1.5
Pulse Duration:	1 ns
Pulse-to-Pulse Stability (RMS):	2 %
Cooling:	Air
Peak Power:	>2kW
Polarization Extinction Ratio:	>20dB
Beam Profile:	Gaussian TEM00
Beam Ellipticity:	<1.5

Download Data Sheet

Features

Peak power up to 200 kW
Pulse width down to 350 ps
1064, 532, 355, 266 and 213 nm
Single shot to 5000 Hz
Excellent beam quality, TEM00 M²<1.3
All-in-one package

Applications

Materials Processing
- Inscribing glass
- Via drilling printed circuit boards
- Micromachining
MALDI-TOF
Microdissection
Laser Induced Fluorescence (LIF)
Time Resolved Fluorescence
Laser Induced Breakdown Spectroscopy (LIBS)
Light Detection and Ranging (LIDAR)
