Description

SNV-20F-100 High Performance UV Microchip Laser delivers unmatched performance and reliability to customers in a wide range of applications.

The SNV/U High Performances UV Microchip Series from Teem Photonics represents a pinnacle in pulsed laser technology, offering a compact and reliable solution for generating high peak power ultraviolet pulses. These microchip lasers are designed to deliver exceptional performance with their ability to produce micro-joule UV pulses through harmonic conversion of the IR passively Q-switched Nd:YAG engine. This innovative design ensures that users can achieve ultrashort pulses down to 550 picoseconds, making it an ideal choice for applications requiring precision and efficiency.

One of the standout features of the SNV/U series is its ability to maintain high average power while delivering multi-kilowatt peak power at repetition rates up to 30 kHz. This capability is complemented by the laser's excellent beam quality and efficient air-cooled system, ensuring that it operates smoothly and with minimal maintenance. The sealed package design further enhances the laser's longevity, providing an extremely long life and reducing the need for frequent replacements or repairs.

Ease of use is a key advantage of the SNV/U series, as these microchip lasers are not only economical but also straightforward to operate and service. The controllers are compatible with every laser head model, allowing for quick swaps and consistent performance across different setups. This flexibility makes the SNV/U series a versatile choice for a wide range of applications, from semiconductor inspection to biophotonics, where precision and reliability are paramount.

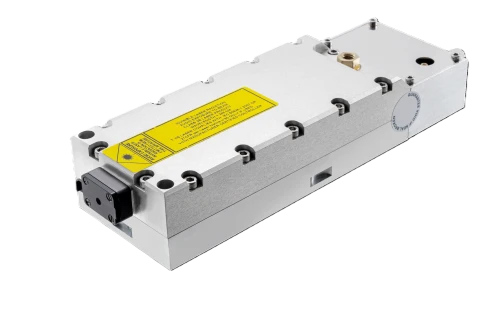

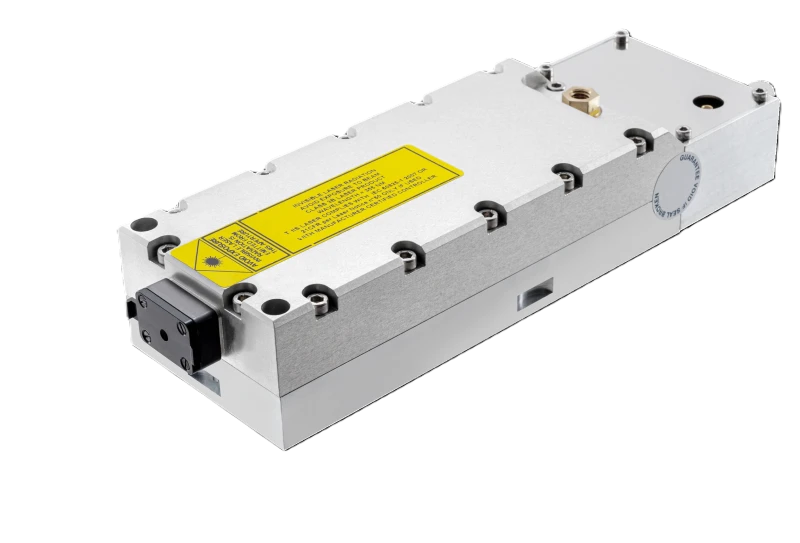

SNV-20F-100 High Performance UV Microchip Laser

Specifications

Avg. Power: 0.01 W
Wavelength: 355 nm
Repetition Rate: 19 – 19 kHz
Spatial Mode (M^2): 1.3
Pulse Duration: 0.6 ns
Pulse-to-Pulse Stability (RMS): 2 %
Cooling: Air
Beam Profile: Gaussian TEM00
Output Energy: >0.5uJ
Peak Power: 0.7kW
Polarization: Linear, PER>20dB

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

For generating high peak power ultraviolet pulses of a few hundred picoseconds, microchip lasers are economical, compact, and reliable. Micro-joule UV pulses are generated by harmonic conversion of the IR passively Q-switched Nd:YAG engine. Microchips are also easy to operate and service; controllers can be used with every laser head model and swapped within minutes while conserving constant performances. The SNV and SNU series are designed for high average power, delivering multi-kW peak power at repetition rates up to 30 kHz.

Applications

  • Semiconductor inspection
  • Laser-induced fluorescence (LIF)
  • Micro-dissection
  • Organic compound marking and micromachining
  • Biohazard detection
  • Time resolved fluorescence
  • Laser Induced Breakdown Spectroscopy (LIBS)
  • Biophotonics

Frequently Asked Questions

What wavelengths are available in the SNV/U High Performances UV Microchip Series?
The available wavelengths are 355 nm and 266 nm.
What is the maximum repetition rate for the SNV/U High Performances UV Microchip Series?
The maximum repetition rate is up to 30 kHz.
How short are the pulses generated by the SNV/U High Performances UV Microchip Series?
The pulses can be as short as 550 picoseconds.
What are some applications of the SNV/U High Performances UV Microchip Series?
Applications include semiconductor inspection, laser-induced fluorescence (LIF), micro-dissection, organic compound marking and micromachining, biohazard detection, time-resolved fluorescence, laser-induced breakdown spectroscopy (LIBS), and biophotonics.
What is the peak power capability of the SNV/U High Performances UV Microchip Series?
The series delivers multi-kilowatt peak power.
How is the SNV/U High Performances UV Microchip Series cooled?
The series is efficiently air-cooled.
What makes the SNV/U High Performances UV Microchip Series reliable and easy to operate?
The microchip lasers are economical, compact, and reliable, with micro-joule UV pulses generated by harmonic conversion of the IR passively Q-switched Nd:YAG engine. They are easy to operate and service, with controllers that can be swapped within minutes while maintaining constant performance.

Got more questions? Use the inquiry form to ask the supplier directly.
