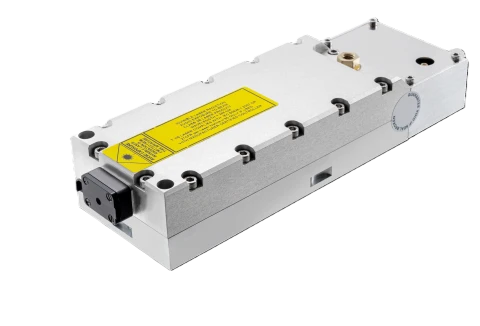

SNV-40P-100 High Performance UV Microchip Laser
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
France
-
Sold by:
-
On FindLight:
since 2019
Description
SNV-40P-100 High Performance UV Microchip Laser delivers unmatched performance and reliability to customers in a wide range of applications requiring an ultraviolet wavelength and stable output power.
The SNV/U High Performances UV Microchip Series by Teem Photonics represents a pinnacle in pulsed laser technology, offering a robust solution for applications requiring high peak power ultraviolet pulses. These microchip lasers are engineered to deliver exceptional performance, characterized by their ability to produce micro-joule UV pulses through harmonic conversion of the IR passively Q-switched Nd:YAG engine. This process ensures that the lasers are not only powerful but also economical and compact, making them an ideal choice for a variety of demanding environments.
One of the standout features of the SNV/U series is its ease of operation and maintenance. The design allows for seamless integration with controllers that can be used across different laser head models. This flexibility ensures that performance remains consistent, even when components are swapped within minutes. The series is specifically designed to handle high average power, achieving multi-kW peak power at repetition rates of up to 30 kHz, which is crucial for applications that demand rapid and reliable laser output.
Furthermore, the SNV/U series is built with longevity and efficiency in mind. The lasers are air-cooled and housed in a sealed package, which contributes to their extremely long life and reliability. This makes them an excellent investment for industries and research fields that require sustained, high-quality laser performance. With their excellent beam quality and ultrashort pulse capabilities, the SNV/U High Performances UV Microchip Series stands out as a leading choice for those seeking advanced laser solutions.
SNV-40P-100 High Performance UV Microchip Laser
Specifications |
|
|---|---|
| Avg. Power: | 0.04 W |
| Wavelength: | 355 nm |
| Repetition Rate: | 19 – 19 kHz |
| Spatial Mode (M^2): | 1.3 |
| Pulse Duration: | 0.6 ns |
| Pulse-to-Pulse Stability (RMS): | 2 % |
| Cooling: | Air |
| Beam Profile: | Gaussian TEM00 |
| Polarization: | Linear, PER>20dB |
| Peak Power: | >5kW |
| Output Energy: | >2uJ |
Features
Environment Parameters
- Operating Temperature Range: 15-35°C
- Maximum Laser Head Baseplate Temperature: <50°C
- Maximum Power Consumption: <40W
- Laser Head Thermal Dissipation: <15W
- Storage Temperature: 0-50°C
- Shock of 11ms according to IEC 68-2-27, non operating: 25g
- Vibration 5Hz to 500Hz sinusoidal according to IEC 68-2-6: 2g
Applications
- Semiconductor inspection
- Laser-induced fluorescence (LIF)
- Micro-dissection
- Organic compound marking and micromachining
- Biohazard detection
- Time resolved fluorescence
- Laser Induced Breakdown Spectroscopy (LIBS)
- Biophotonics
Frequently Asked Questions
The available wavelengths for the SNV/U High Performances UV Microchip Series are 355 nm and 266 nm.
The maximum repetition rate for the SNV/U High Performances UV Microchip Series is up to 30 kHz.
Key applications include semiconductor inspection, laser-induced fluorescence (LIF), micro-dissection, organic compound marking and micromachining, biohazard detection, time-resolved fluorescence, laser-induced breakdown spectroscopy (LIBS), and biophotonics.
The pulse duration for the SNV/U High Performances UV Microchip Series can be as short as 550 picoseconds.
The SNV/U High Performances UV Microchip Series is noted for having excellent beam quality.
Yes, the SNV/U High Performances UV Microchip Series lasers are efficient and air-cooled.
The SNV/U High Performances UV Microchip Series features a sealed package that ensures an extremely long life.
