Description

SNV-60P-100 High Performance UV Microchip Laser delivers unmatched performance and reliability to customers in a wide range of applications.

The SNV/U High Performances UV Microchip Series from Teem Photonics represents a cutting-edge solution for those seeking high-performance pulsed laser technology. Designed with precision and efficiency in mind, this series offers a compact and reliable option for generating high peak power ultraviolet pulses. The microchip lasers are engineered to deliver exceptional performance, making them an ideal choice for a variety of demanding applications.

At the heart of the SNV/U series is the innovative harmonic conversion of the IR passively Q-switched Nd:YAG engine. This technology enables the generation of micro-joule UV pulses with remarkable consistency and reliability. The lasers are designed for ease of use, allowing for quick and straightforward operation and servicing. With controllers that are compatible with every laser head model, users can easily swap components while maintaining consistent performance levels.

The SNV and SNU series are particularly notable for their ability to deliver high average power and multi-kilowatt peak power at repetition rates of up to 30 kHz. This makes them an excellent choice for applications requiring high precision and power. The series is also designed to be efficient and air-cooled, housed in a sealed package that ensures an extremely long life. This combination of features makes the SNV/U series a robust and versatile solution for a wide range of industrial and scientific applications.

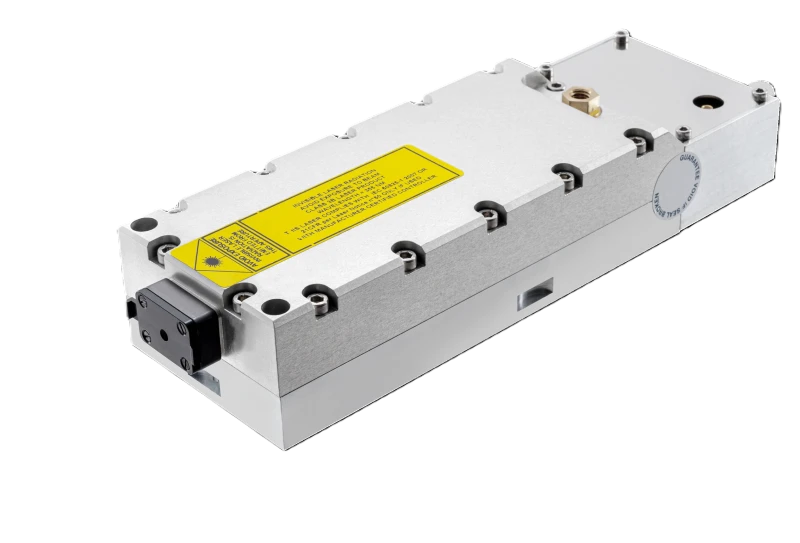

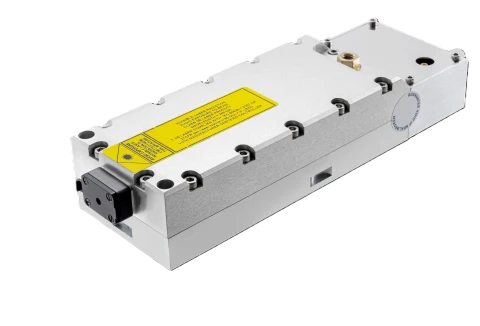

SNV-60P-100 High Performance UV Microchip Laser

Specifications

Avg. Power: 0.058 W
Wavelength: 355 nm
Repetition Rate: 29 – 29 kHz
Spatial Mode (M^2): 1.3
Pulse Duration: 0.6 ns
Pulse-to-Pulse Stability (RMS): 2 %
Cooling: Air
Beam Profile: Gaussian TEM00
Polarization: Linear, PER>20dB
Peak Power: >5kW
Package Weight: 750g

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

Certification

  • Laser classification according to IEC 60825-1:2007: 3B for SNV lasers, 4 for SNU-02P and SNU-20F
  • CDRH: Yes, if used with a -DR1 controller
  • RoHS: Yes

Applications

  • Semiconductor inspection
  • Laser-induced fluorescence (LIF)
  • Micro-dissection
  • Organic compound marking and micromachining
  • Biohazard detection
  • Time resolved fluorescence
  • Laser Induced Breakdown Spectroscopy (LIBS)
  • Biophotonics

Frequently Asked Questions

What wavelengths are available for the SNV/U High Performances UV Microchip Series?
The available wavelengths for the SNV/U High Performances UV Microchip Series are 355 nm and 266 nm.
What is the maximum repetition rate for these lasers?
The maximum repetition rate for the SNV/U High Performances UV Microchip Series is up to 30 kHz.
What are some key applications for these microchip lasers?
Key applications include semiconductor inspection, laser-induced fluorescence (LIF), micro-dissection, organic compound marking and micromachining, biohazard detection, time-resolved fluorescence, laser-induced breakdown spectroscopy (LIBS), and biophotonics.
How long are the pulses generated by these lasers?
The SNV/U High Performances UV Microchip Series generates ultrashort pulses down to 550 picoseconds.
What is the peak power capability of these lasers?
These lasers can deliver multi-kilowatt peak power.
Are these lasers air-cooled?
Yes, the SNV/U High Performances UV Microchip Series is efficient and air-cooled.
What makes these microchip lasers reliable and easy to operate?
These microchip lasers are reliable due to their sealed package and extremely long life. They are easy to operate and service, as controllers can be used with every laser head model and swapped within minutes while maintaining constant performance.

Got more questions? Use the inquiry form to ask the supplier directly.
