Description

Discover the pinnacle of laser technology with the SNG High Performance Green Microchip Series from Teem Photonics. These advanced microchip lasers are engineered to deliver exceptional performance in a compact and reliable package. Designed for those who demand precision and efficiency, the SNG series offers a seamless blend of cutting-edge technology and user-friendly operation.

At the heart of the SNG series is its ability to generate high peak power green pulses, with pulse durations in the range of a few hundred picoseconds. This is achieved through harmonic conversion from infrared systems, ensuring that the same compact, sealed package can be utilized for both IR and green wavelengths. The result is a versatile laser solution that meets the needs of various applications while maintaining consistent performance.

The SNG series stands out for its high average power capabilities, delivering multi-kilowatt peak power at repetition rates of up to 70 kHz. This makes it an ideal choice for applications requiring rapid and powerful laser pulses. Additionally, the microchip lasers are designed for ease of use, with controllers that can be effortlessly swapped between laser head models, ensuring minimal downtime and maximum productivity.

Built with longevity and efficiency in mind, the SNG series features an air-cooled, sealed package that promises an extremely long life. This robust design not only enhances the durability of the lasers but also simplifies maintenance, making them a cost-effective solution for a wide range of industrial and scientific applications.

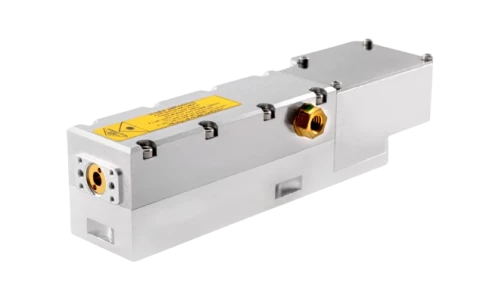

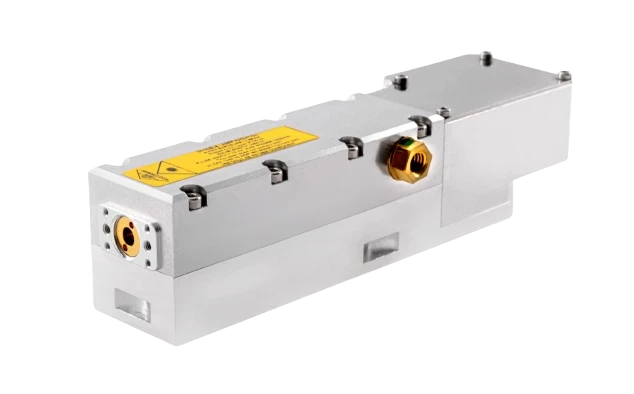

SNG-50F-100 SNG High Performances Green Microchip Laser

Specifications

Avg. Power: 0.045 W
Wavelength: 532 nm
Repetition Rate: 45 – 45 kHz
Spatial Mode (M^2): 1.3
Pulse Duration: 0.65 ns
Pulse-to-Pulse Stability (RMS): 1 %
Cooling: Air
Beam Profile: Gaussian TEM00
Beam Ellipticity: <1.3
Polarization: Linear, PER>20dB
Output Energy: >1uJ
Peak Power: >1.5kW

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

For generating high peak power green pulses of a few hundred picoseconds, microchip lasers are economical, compact, and reliable. The 532nm pulses are produced by harmonic conversion from the IR systems, using the same compact sealed package for either wavelength. Microchips are also easy to operate and service; controllers can be used with every laser head model and swapped within minutes while conserving constant performances. The SNG series are designed for high average power, delivering multi-kW peak power at repetition rates up to 70kHz.

Applications

  • Material Processing
    • Cost effective marking solutions
    • Graphitization
  • Instrumentation
    • Ranging
    • Differential absorption LIDAR
    • Super-continuum generation
    • Distributed temperature sensing
    • Raman spectroscopy
  • Biophotonics
    • Nanosurgery
    • Protein cross-linking

Frequently Asked Questions

What is the repetition rate of the SNG High Performances Green Microchip Series?
The repetition rate of the SNG High Performances Green Microchip Series is up to 70 kHz.
What is the pulse duration of the lasers in this series?
The lasers in the SNG High Performances Green Microchip Series can produce ultrashort pulses down to 500 picoseconds.
What are some applications of the SNG High Performances Green Microchip Series?
Applications include material processing (such as cost-effective marking solutions and graphitization), instrumentation (like ranging, differential absorption LIDAR, super-continuum generation, distributed temperature sensing, and Raman spectroscopy), and biophotonics (including nanosurgery and protein cross-linking).
What is the beam quality of the SNG High Performances Green Microchip Series?
The beam quality is excellent, with a TEM00 mode and M²
How are the 532nm pulses produced in the SNG series?
The 532nm pulses are produced by harmonic conversion from the IR systems, using the same compact sealed package for either wavelength.
What are the cooling requirements for the SNG High Performances Green Microchip Series?
The lasers are efficient and air-cooled.
Can the laser controllers be easily swapped between different laser head models?
Yes, controllers can be used with every laser head model and swapped within minutes while conserving constant performances.

Got more questions? Use the inquiry form to ask the supplier directly.
