Description

PicoMega Series: Revolutionizing Picosecond Laser Technology

ANG-150P 532nm Pulsed DPSS Laser is from the family of PicoMega Series by Teem Photonics. It represents a significant advancement in picosecond laser technology, offering unparalleled performance in a compact and efficient design. This series is engineered to deliver ultrashort pulses, reaching durations as brief as 120 picoseconds, with repetition rates soaring up to 150 kHz. Such capabilities make it an ideal choice for applications demanding precision and high throughput, where the quality of the laser beam is paramount.

The PicoMega Series stands out with its excellent beam quality, characterized by a TEM00 mode and an M² value of less than 1.3, ensuring optimal focus and minimal divergence. Incorporating passive Q-switching technology, the PicoMega Series leverages the same platform as the renowned PicoOne, pushing the boundaries of what is achievable in ultrafast laser applications.

This series is particularly suited for industries that require efficient and reliable laser solutions, offering a low cost of ownership compared to more complex picosecond laser systems. Its air-cooled, compact design further enhances its appeal, providing a practical solution without compromising on performance. The versatility of the PicoMega Series extends to its role as a seeder in high-power amplification applications. This adaptability, combined with its robust performance, makes it an indispensable tool in fields ranging from material processing to instrumentation and Lidar.

By choosing the PicoMega Series, users gain access to a cutting-edge laser solution that meets the rigorous demands of modern technological applications, ensuring precision, efficiency, and reliability in every pulse.

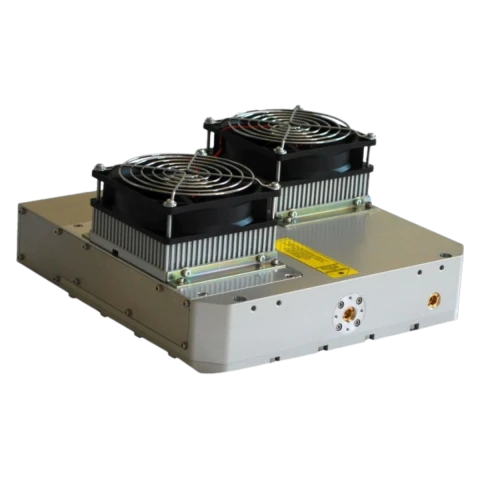

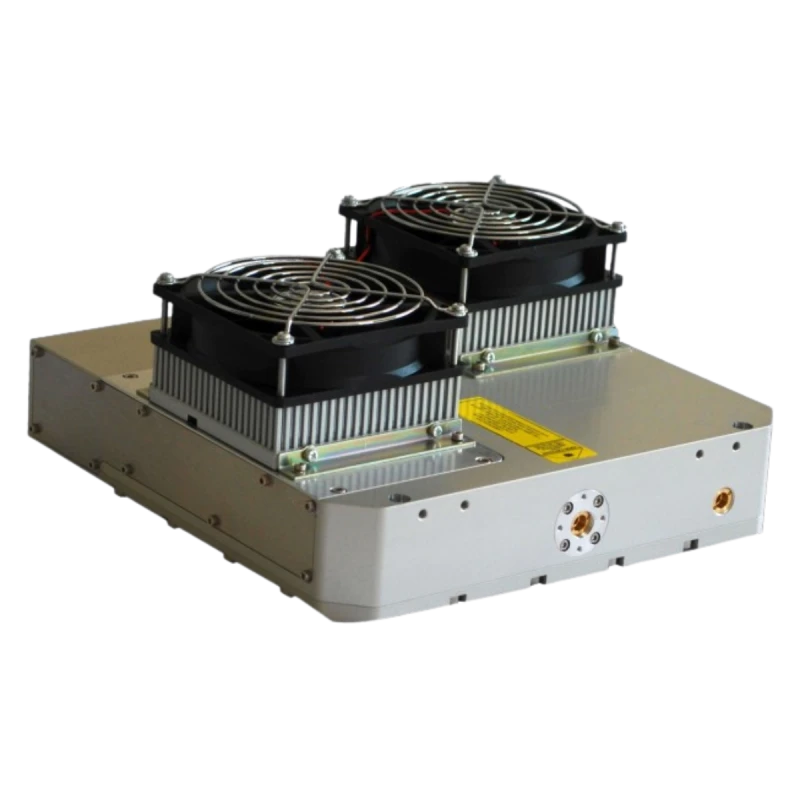

ANG-150P 532nm Pulsed DPSS Laser

Specifications

Avg. Power: 0.12 W
Wavelength: 532 nm
Repetition Rate: 150 – 150 kHz
Spatial Mode (M^2): 1.3
Pulse Duration: 0.17 ns
Pulse-to-Pulse Stability (RMS): 2 %
Cooling: Air
Output Energy: >1uJ
Peak Power: >6kW
Beam Profile: Gaussian TEM00
Polarization: Linear, PER>20dB

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

Environment Parameters

  • Operating Base Plate Temperature Tolerance: +20°C, +30°C
  • Maximum Power Consumption: <25W
  • Storage Temperature: 0-50°C
  • Shock of 11ms according to IEC 68-2-27, non operating: 25g
  • Vibration 5Hz to 500Hz sinusoidal according to IEC 68-2-6: 2g

Applications

  • Material processing
  • Seeder for high power amplification
  • Instrumentation and Lidar

Frequently Asked Questions

What wavelengths are available for the PicoMega Series lasers?
The PicoMega Series lasers are available in 1064 nm and 532 nm wavelengths.
What is the repetition rate range for the PicoMega Series lasers?
The repetition rate for the PicoMega Series lasers is up to 150 kHz.
What is the pulse width of the PicoMega Series lasers?
The PicoMega Series lasers can generate ultrashort pulses down to 120 ps.
What are the typical applications for the PicoMega Series lasers?
The PicoMega Series lasers are used in material processing, as seeders for high power amplification, and in instrumentation and Lidar applications.
What is the beam quality of the PicoMega Series lasers?
The PicoMega Series lasers have excellent beam quality with TEM00 mode and M² < 1.3.
How is the PicoMega Series laser cooled?
The PicoMega Series laser is air-cooled and very compact.
What is the polarization of the PicoMega Series lasers?
The PicoMega Series lasers have linear polarization with a polarization extinction ratio (PER) greater than 20 dB.
