Description

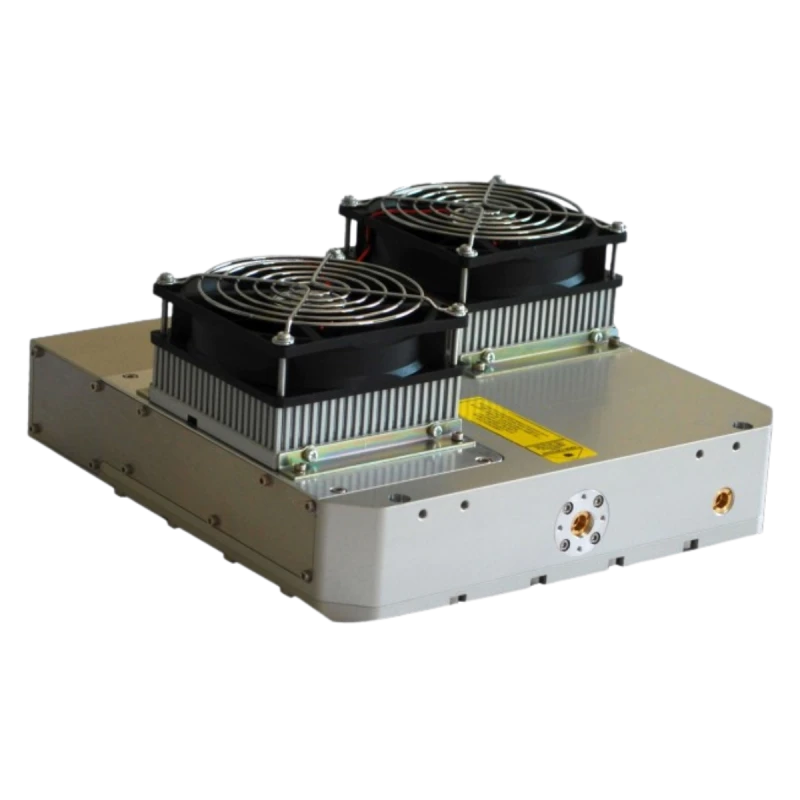

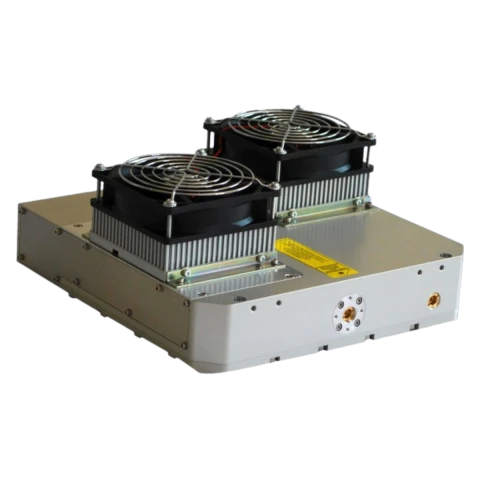

NIR Pulsed DPSS Laser PicoOne Series ANP-20E

The PicoOne Series from Teem Photonics represents a breakthrough in pulsed laser technology, offering a versatile solution for a wide range of applications. This series is designed around a microchip seeder combined with an efficient Master Oscillator Fiber Amplifier (MOFA) stage, delivering ultra-short pulses down to 650 picoseconds at frequencies exceeding 100 kHz. With an average power reaching 1W at 532nm, the PicoOne Series ensures high performance with a single emission frequency, making it a reliable choice for precision tasks.

One of the standout features of the PicoOne Series is its use of Passively Q-Switched (PQS) microchip laser technology. This, coupled with fiber amplification, provides full control over pulse energy or peak power without altering the pulse width and shape. This flexibility allows users to tailor the laser's performance to specific needs, and the option to use different seeders further enhances its adaptability. The laser's excellent beam quality, characterized by TEM00 and M²<1.2, ensures precise and consistent results.

Designed for efficiency, the PicoOne Series is air-cooled and housed in a sealed package, ensuring long life and reliable operation. Its compact and robust design makes it suitable for various environments, providing a dependable solution for industries requiring high precision and performance. Whether for micromachining, instrumentation, or biophotonics, the PicoOne Series stands out as a premier choice for those seeking advanced pulsed laser solutions.

NIR Pulsed DPSS Laser PicoOne Series ANP-20E

Specifications

Avg. Power: 1.75 W
Wavelength: 1064 nm
Repetition Rate: 70 – 70 kHz
Spatial Mode (M^2): 1.2
Pulse Duration: 0.65 ns
Pulse-to-Pulse Stability (RMS): 2 %
Cooling: Air
Beam Ellipticity: <1.30
Beam Profile: Gaussian TEM00
Polarization: Linear, PER>20dB
Output Energy: >25uJ
Peak Power: >38kW

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

Environment Parameters

  • Operating Temperature Range: 15-30°C
  • Maximum Power Consumption: <25W
  • Storage Temperature: 0-50°C
  • Shock of 11ms according to IEC 68-2-27, non operating: 25g
  • Vibration 5Hz to 500Hz sinusoidal according to IEC 68-2-6: 2g

Applications

  • Micromachining
    • Selective ablation of µm to nm scale layers
    • PCB Repair
  • Instrumentation
    • Raman spectroscopy
    • Supercontinuum generation
    • Ranging
    • LIDAR
  • Biophotonics
    • Dense tissue ablation

Frequently Asked Questions

What wavelengths are available for the PicoOne Series lasers?
The PicoOne Series lasers are available in 1064nm, 532nm, 355nm, and 266nm wavelengths.
What is the pulse duration of the PicoOne Series lasers?
The PicoOne Series lasers produce ultra-short pulses down to 650 picoseconds at 100 kHz.
What is the peak power of the PicoOne Series laser at 1064nm?
The peak power of the PicoOne Series laser at 1064nm is greater than 38kW.
What are some applications of the PicoOne Series lasers?
Applications include micromachining, PCB repair, Raman spectroscopy, supercontinuum generation, ranging, LIDAR, and dense tissue ablation.
What technology does the PicoOne Series use for pulse generation?
The PicoOne Series uses Passively Q-Switched (PQS) microchip laser technology and fiber amplification.
Can the repetition rate of the PicoOne Series lasers be adjusted?
Yes, the repetition rate can be factory-set to any fixed value between 30 kHz and 100 kHz.
What is the beam quality of the PicoOne Series lasers?
The PicoOne Series lasers have excellent beam quality with TEM00 mode and M²

Got more questions? Use the inquiry form to ask the supplier directly.
