Description

1064nm Pulsed DPSS ANP-500P is from the PicoMega Series of Advanced Picosecond Laser Solutions.

The PicoMega Series by Teem Photonics represents a significant advancement in the realm of passive Q-switching technology. Designed to deliver ultra-short pulses, this series achieves pulse durations as brief as 120 picoseconds, with repetition rates soaring up to 150 kHz. This capability positions the PicoMega Series as an ideal choice for applications demanding precision and efficiency, where ultra-short pulse widths are crucial.

Beyond its technical prowess, the PicoMega Series offers a cost-effective solution compared to more complex picosecond lasers. Its design ensures a low cost of ownership, making it an attractive option for industries seeking high throughput processing.

Whether utilized in Lidar systems or as a seeder for high-power amplification, the PicoMega Series provides reliable performance with excellent beam quality, characterized by a TEM00 profile and an M² value of less than 1.3. Compact and efficient, the PicoMega Series is air-cooled, ensuring ease of integration into various systems without the need for extensive cooling infrastructure. This compactness, combined with its robust performance, makes it a versatile tool for a wide range of industrial and scientific applications.

With the PicoMega Series, Teem Photonics continues to push the boundaries of laser technology, offering solutions that meet the evolving needs of modern applications.

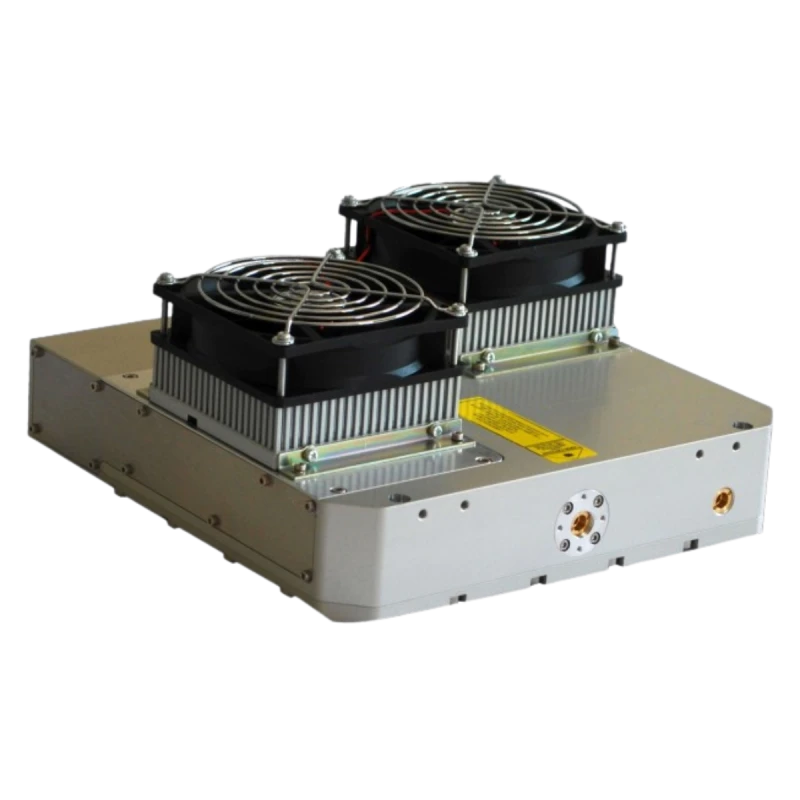

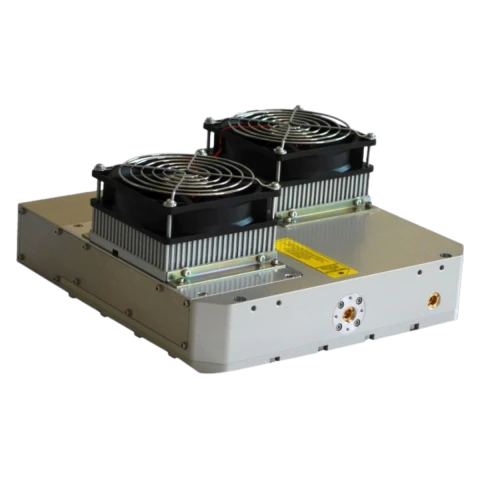

1064nm Pulsed DPSS PicoMega Series Laser ANP-500P

Specifications

Avg. Power: 0.3 W
Wavelength: 1064 nm
Repetition Rate: 100 – 100 kHz
Spatial Mode (M^2): 1.3
Pulse Duration: 0.2 ns
Cooling: Air
Polarization: Linear, PER>20dB
Beam Ellipticity: <1.8 (typical 1.4)
Output Energy: >3uJ
Peak Power: >2kW

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

Environment Parameters

  • Operating Base Plate Temperature Tolerance: +20°C, +30°C
  • Maximum Power Consumption: <25W
  • Storage Temperature: 0-50°C
  • Shock of 11ms according to IEC 68-2-27, non operating: 25g
  • Vibration 5Hz to 500Hz sinusoïdalaccording to IEC 68-2-6: 2g

Applications

  • Material processing
  • Seeder for high power amplification
  • Instrumentation and LIDAR

Frequently Asked Questions

What wavelengths are available for the PicoMega Series lasers?
The PicoMega Series lasers are available in 1064 nm and 532 nm wavelengths.
What is the repetition rate range for the PicoMega Series lasers?
The repetition rate for the PicoMega Series lasers is up to 150 kHz.
How short are the pulses generated by the PicoMega Series lasers?
The PicoMega Series lasers generate ultrashort pulses down to 120 ps.
What are some applications of the PicoMega Series lasers?
The PicoMega Series lasers can be used for material processing, as a seeder for high power amplification, and in instrumentation and Lidar applications.
What is the beam quality of the PicoMega Series lasers?
The PicoMega Series lasers have excellent beam quality with TEM00 mode and M² < 1.3.
What is the peak power output for the 532 nm PicoMega laser?
The peak power output for the 532 nm PicoMega laser is greater than 6 kW.
What is the polarization specification for the PicoMega Series lasers?
The PicoMega Series lasers have linear polarization with a polarization extinction ratio (PER) greater than 20 dB.

Got more questions? Use the inquiry form to ask the supplier directly.
