SNP-300P-100 High Performance IR Microchip Laser
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
France
-
Sold by:
-
On FindLight:
since 2019
Description
The SNP High Performances IR Microchip Series by Teem Photonics represents a cutting-edge solution for those seeking high-performance pulsed laser technology. These microchip lasers are engineered to deliver exceptional results with their ability to generate high peak power IR pulses within a compact and reliable framework. The series is particularly noted for its sub-nanosecond 1064nm pulses, which are directly generated from the diode-pumped passively Q-switched Nd:YAG microchip engine. This innovative design ensures that the lasers are not only economical but also easy to operate and maintain, making them an ideal choice for a variety of applications.
One of the standout features of the SNP series is its design for high average power output. This is achieved through pulse energies of up to 20 µJ at 1064nm and repetition rates that can reach up to 130 kHz. Such capabilities make the SNP series a versatile tool in fields that require precise and powerful laser performance. The lasers are also designed to be user-friendly, with controllers that can be easily swapped between different laser head models, ensuring consistent performance across various applications.
Teem Photonics has ensured that the SNP series is built to last, with an efficient air-cooled system and a sealed package that promises an extremely long life. The excellent beam quality, characterized by TEM00 and M²<1.2, further enhances the performance of these lasers, making them a reliable choice for professionals in need of high-quality laser solutions. Whether for material processing, instrumentation, or biophotonics, the SNP High Performances IR Microchip Series offers a robust and efficient solution for your pulsed laser needs.

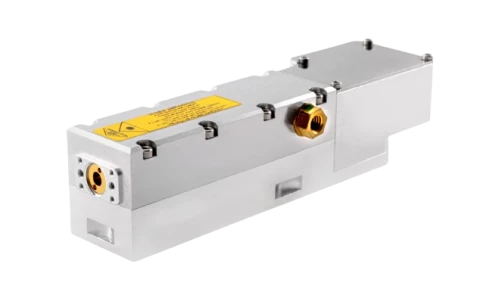

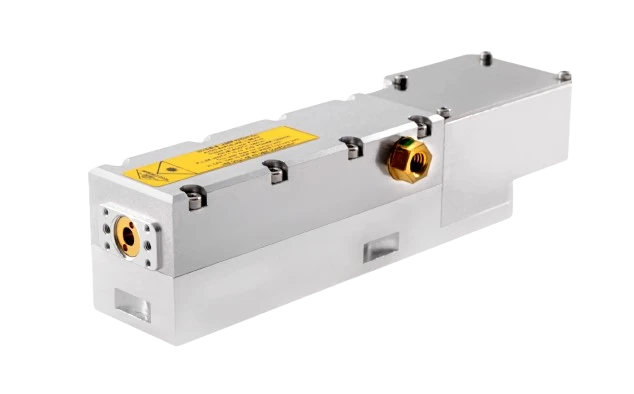

SNP-300P-100 High Performance IR Microchip Laser
Specifications |
|
|---|---|
| Avg. Power: | 0.3 W |
| Wavelength: | 1064 nm |
| Repetition Rate: | 29 – 29 kHz |
| Spatial Mode (M^2): | 1.3 |
| Pulse Duration: | 0.75 ns |
| Pulse-to-Pulse Stability (RMS): | 1 % |
| Cooling: | Air |
| Beam Profile: | Gaussian TEM00 |
| Beam Ellipticity: | <1.2 |
| Polarization: | Linear, PER>20dB |
| Output Energy: | >10uJ |
| Peak Power: | >13kW |
Features
For generating high peak power IR pulses of a few hundred picoseconds, microchip lasers are economical, compact, and reliable. Sub-nanosecond 1064nm pulses are directly generated from the diode-pumped passively Q-switched Nd:YAG microchip engine. Microchips are also easy to operate and service; controllers can be used with every laser head model and swapped within minutes while conserving constant performances.
The SNP series are designed for high average power, either from pulse energies of 20 µJ at 1064nm, or from repetition rates up to 130 kHz.
Applications
- Material Processing
- Cost effective marking solutions
- Graphitization
- Instrumentation
- Ranging
- Differential absorption LIDAR
- Super-continuum generation
- Distributed temperature sensing
- Raman spectroscopy
- Biophotonics
- Nanosurgery
- Protein cross-linking
Frequently Asked Questions
The repetition rate of the SNP High Performances IR Microchip Series is up to 130 kHz.
The SNP High Performances IR Microchip Series can produce ultrashort pulses down to 600 picoseconds.
The key applications include material processing, instrumentation, and biophotonics, such as marking solutions, graphitization, ranging, LIDAR, super-continuum generation, distributed temperature sensing, Raman spectroscopy, nanosurgery, and protein cross-linking.
The beam quality is excellent, with a TEM00 mode and M² less than 1.2.
Yes, the SNP High Performances IR Microchip Series is efficient and air-cooled.
The SNP High Performances IR Microchip Series can achieve multi-kilowatt peak power.
Yes, microchip lasers in the SNP series are easy to operate and service, with controllers that can be swapped within minutes while maintaining constant performance.
