Flashlamp Drivers for Solid State Lasers

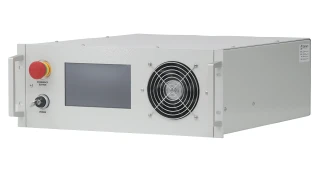

FLD-4U Flashlamp Driver

FLD-4U Flashlamp Driver

Sold by: OEM Tech Ships from: Poland
Specifications
Output Current (max): 1000 A
Output Voltage (max): 900 V
Average Output Power: 8000 W
Product: SDC-4U diode driver
Input Voltage: 110–240 VAC

Did You Know?

Did you know that the current slew rate of a flashlamp driver can directly limit the achievable pulse duration of a lamp-pumped solid-state laser? To efficiently pump nanosecond-scale Q-switched Nd:YAG systems, drivers often need to deliver kiloampere-level pulses with rise times on the order of a few microseconds, while carefully controlling dI/dt to avoid electrode erosion and arc instabilities. A common misconception is that only the capacitor bank size matters, but the switching topology (e.g., thyratron vs. solid-state IGBT) and stray inductance in the discharge loop typically dominate pulse shape and thus gain dynamics in the laser rod.

Frequently Asked Questions

A flashlamp driver is a pulsed high‑voltage power supply that delivers controlled current pulses to a gas discharge lamp used for pumping solid‑state laser media (e.g., Nd:YAG rods). It charges a capacitor bank to a defined voltage and then discharges it through the lamp using a switching element (typically a thyristor/IGBT), setting the optical pump pulse energy, duration, and repetition rate.

Flashlamp Drivers for Pulsed Laser Excitation

Flashlamp Drivers are power electronics modules designed to energize xenon or krypton flashlamps used for pumping solid state laser rods and slabs. They convert AC mains or DC supply into controlled high-voltage pulses, providing reliable lamp ignition and stable discharge current profiles. On FindLight you can source Flashlamp Drivers matched to Nd:YAG and other solid state laser cavities across industrial, medical, and scientific applications.

Key Specifications of Flashlamp Drivers

When evaluating Flashlamp Drivers, engineers typically focus on several core parameters:

  • Charge voltage and energy: Typical output ranges from a few hundred volts up to tens of kilovolts, with stored energies from a few joules to several hundred joules per pulse, depending on cavity size and repetition rate.
  • Pulse repetition rate: From single-shot operation to tens or hundreds of hertz; higher repetition rates require careful attention to thermal management and capacitor bank design.
  • Pulser topology: Common architectures include resonant, Marx, and capacitor-discharge circuits with dedicated triggering stages for reliable lamp ignition.
  • Current waveform shape: Critically damped or tailored pulse shapes are used to control lamp plasma dynamics, optical output, and lamp lifetime.
  • Trigger and control interface: External TTL/CMOS trigger inputs, analog setpoints, interlock loops, and monitoring outputs (voltage, current, fault status).
  • Cooling and form factor: Air- or water-cooled Flashlamp Drivers, offered as OEM modules, 19-inch rack units, or integrated laser power supply assemblies.

Typical Applications

Flashlamp Drivers on FindLight support Q-switched and long-pulse solid state lasers for micromachining, surface treatment, rangefinding, LIBS, medical aesthetics, and laboratory pump sources. They are also used in high-energy research lasers and materials testing systems where robust flashlamp excitation is required.

Buyer Guidance on FindLight

To select suitable Flashlamp Drivers, match the driver’s charge voltage, pulse energy, and repetition rate to your flashlamp and resonator design, and verify insulation ratings, cooling requirements, and safety interlocks against your system standards. Compare multiple Flashlamp Drivers side by side on FindLight by reviewing datasheets, output specifications, and mechanical interfaces. When you identify candidates, you can request quotes and technical clarification from suppliers directly through the platform—no registration is required, allowing rapid sourcing and design iteration for your solid state laser projects.
