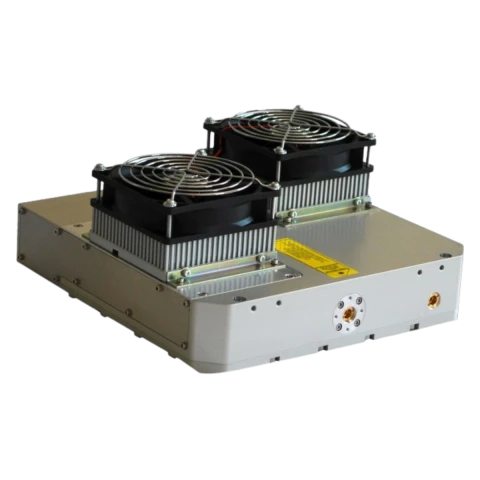

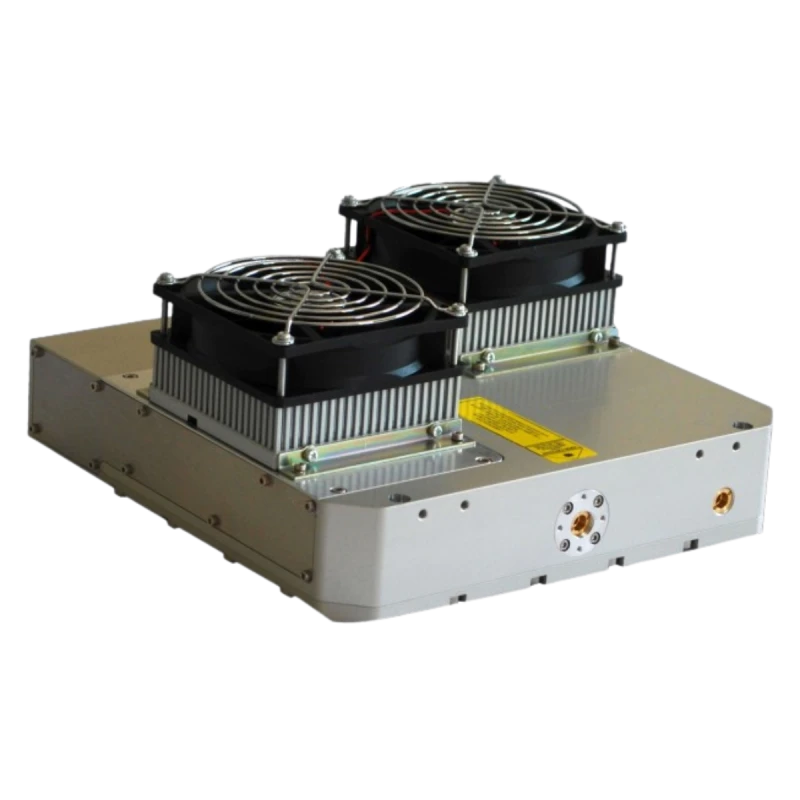

Thumbnail of PicoOne Sub-Nanosecond Amplified Green DPSS Laser photo 1

Description

PicoOne Sub-Nanosecond Amplified Green DPSS Laser at 532nm

The PicoOne Series from Teem Photonics represents a cutting-edge advancement in pulsed laser technology, designed to meet the diverse needs of modern applications. This series is characterized by its sub-nanosecond pulse durations, offering ultra-short pulses down to 650 picoseconds at frequencies exceeding 100 kHz.

With peak power surpassing 38 kW at 1064 nm, the PicoOne Series ensures exceptional performance and reliability for demanding tasks. At the heart of the PicoOne Series is the integration of a microchip seeder with an efficient Master Oscillator Fiber Amplifier (MOFA) stage.

This combination allows for precise control over pulse energy and peak power, while maintaining consistent pulse width and shape. The laser operates with a single emission frequency, providing stability and precision in its output. This makes it an ideal choice for applications requiring high precision and reliability. The design of the PicoOne Series emphasizes efficiency and longevity. It features an air-cooled, sealed package that ensures long life and minimal maintenance.

The excellent beam quality, characterized by TEM00 mode and M²<1.2, guarantees superior performance in various applications. Whether you are involved in micromachining, instrumentation, or biophotonics, the PicoOne Series offers a robust and versatile solution tailored to your specific needs.

PicoOne Sub-Nanosecond Amplified Green DPSS Laser

Visit the Teem Photonics Store

Specifications

Avg. Power: 0.7 W
Wavelength: 532 nm
Repetition Rate: 70 – 70 kHz
Spatial Mode (M^2): 1.2
Pulse Duration: 0.65 ns
Pulse-to-Pulse Stability (RMS): 2 %
Cooling: Air
Beam Profile: Gaussian TEM00
Beam Ellipticity: <1.5
Output Energy: >10uJ
Peak Power: >15kW

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

Package

  • Laser Head weight: 4.5 kg
  • Controller weight: 1.1 kg

Certification

  • Laser classification according to IEC 60825-1:2007: 4
  •  CDRH compliance: In Process
  •  RoHS: Yes

Applications

  • Micromachining
    • Selective ablation of µm to nm scale layers
    • PCB Repair
  • Instrumentation
    • Raman spectroscopy
    • Supercontinuum generation
    • Ranging
    • LIDAR
  • Biophotonics
    • Dense tissue ablation

Frequently Asked Questions

What wavelengths are available for the PicoOne Series lasers?
The PicoOne Series lasers are available at 1064nm, 532nm, 355nm, and 266nm wavelengths.
What is the pulse duration of the PicoOne Series lasers?
The PicoOne Series lasers produce ultra-short pulses down to 650 picoseconds at 100 kHz.
What is the peak power of the PicoOne Series laser at 1064nm?
The peak power of the PicoOne Series laser at 1064nm is greater than 38kW.
What are some applications of the PicoOne Series lasers?
Applications include micromachining, PCB repair, Raman spectroscopy, supercontinuum generation, ranging, LIDAR, and dense tissue ablation.
What is the beam quality of the PicoOne Series lasers?
The PicoOne Series lasers have excellent beam quality with TEM00 mode and M²
How is the pulse energy controlled in the PicoOne Series lasers?
The pulse energy (or peak power) is controlled using Passively Q-Switched (PQS) microchip laser technology and fiber amplification, while keeping the pulse width and shape unchanged.
Can the repetition rate of the PicoOne Series lasers be adjusted?
Yes, the repetition rate can be factory-set to any fixed value between 30 kHz and 100 kHz, with corresponding adjustments to the energy per pulse.

Got more questions? Use the inquiry form to ask the supplier directly.
