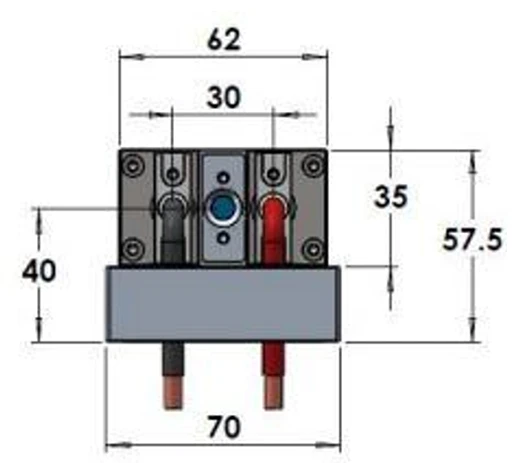

Thumbnail of 1064nm Long Pulse Laser Module for Medical Aesthetics photo 1

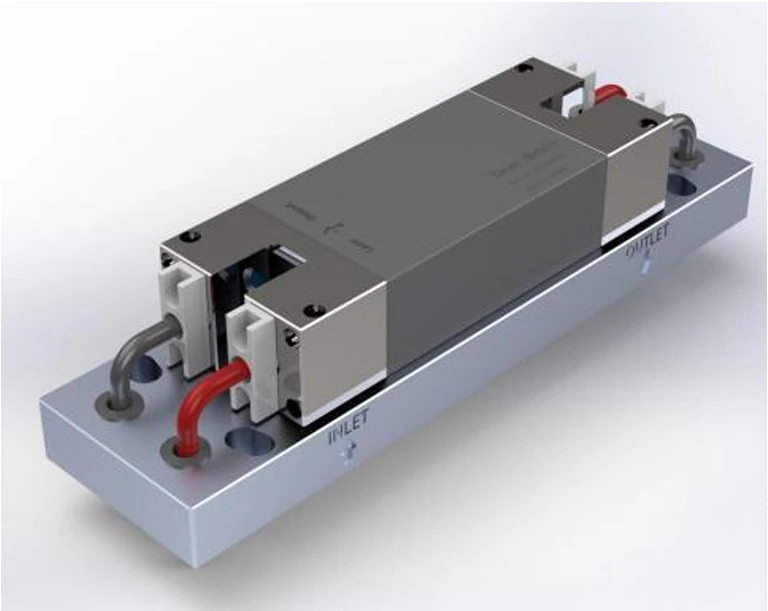

Thumbnail of 1064nm Long Pulse Laser Module for Medical Aesthetics photo 2

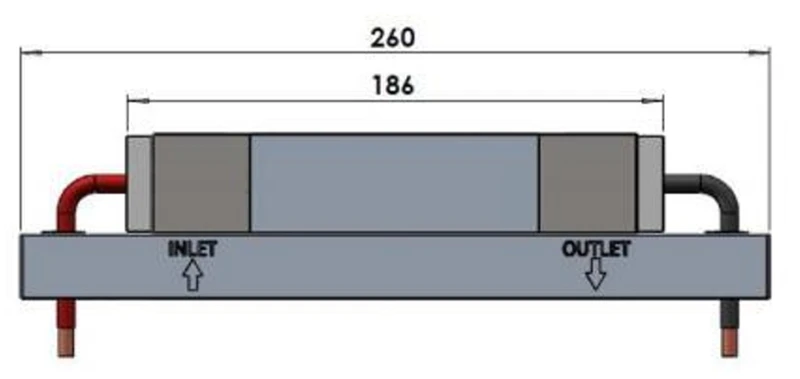

Thumbnail of 1064nm Long Pulse Laser Module for Medical Aesthetics photo 3

Description

Introducing the 1064nm Long Pulse Laser Module by CRYSTECH, a product meticulously crafted to meet the growing demands of the laser medical aesthetics industry. This innovative module is designed with a focus on the unique properties of Nd:YAG crystal materials. By adopting a dual-lamp parallel pumping mode, it ensures greater energy output and an extended service life, making it a reliable choice for professionals in the field.

The Nd:YAG crystal is integrated into a plano-concave resonant cavity design, offering a more compact structure that enhances the overall stability of the module. This thoughtful design not only simplifies the operation but also facilitates easy maintenance, ensuring that the equipment remains efficient and user-friendly over time. The combination of these features makes the 1064nm Long Pulse Laser Module an ideal solution for those seeking a robust and dependable laser system.

At the core of this product is a commitment to delivering high performance and reliability. The module's advanced design allows for stable energy output, which is crucial for achieving consistent results in various applications. With a focus on longevity and ease of use, CRYSTECH has developed a laser module that stands out in the market, providing users with a tool that is both powerful and easy to manage.

1064nm Long Pulse Laser Module for Medical Aesthetics

Visit the CRYSTECH Inc. Store

Specifications

Avg. Power: 800 W
Wavelength: 1064 nm
Repetition Rate: 0.0005 – 0.01 kHz
Spatial Mode (M^2): Not Specified
Pulse Duration: 300000 ns
Pulse-to-Pulse Stability (RMS): 5 %
Cooling: Water-to-Water
Wavelength: 1064 nm
Beam Diameter: 8 mm
Single Pulse Energy: 80 J
Maximum Peak Power: 10000 W (8 ms)
Energy Stability (RMS): ≤5%
Pulse Width: 0.3～300 ms
Repetition Frequency: 0.5～10 Hz
Injection Energy: ≤2000 J (two lamps)
Power Supply Type: IGBT
Power Supply Power: ~4000 W
Circulating Water Conductivity: <20 μs/cm
Cooling Water Temperature: 20～25 ℃
Water Flow Rate: 11～15 L/min
Water Pressure: 0.25～0.3 MPa (35～42 psi)

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Compact Structure & Easy Installation: Designed for user-friendly setup and maintenance, allowing for efficient integration into existing systems.
  • High Single-Pulse Energy & High Peak Power: Delivers powerful and precise laser pulses, suitable for various medical and aesthetic applications.
  • Stable Energy & Long Service Life: Ensures consistent performance and durability, reducing the need for frequent replacements.
  • Wavelength: 1064 nm
  • Beam Diameter: 8 mm
  • Single Pulse Energy: 80 J
  • Maximum Peak Power: 10,000 W (8 ms)
  • Energy Stability (RMS): ≤5%
  • Pulse Width: 0.3 to 300 ms
  • Repetition Frequency: 0.5 to 10 Hz
  • Precautions:
    • Ensure laser protection during installation, commissioning, and operation.
    • Pay attention to the laser output direction during installation.
    • Do not start the machine without cooling water; ensure the cooling system is operational before use.
  • Pumping and Power Supply:
    • Injection Energy: ≤2000 J (two lamps)
    • Operating Mode: Dual-lamp parallel
    • Power Supply Type: IGBT
    • Power Supply Power: ~4000 W
    • Pumping Mode: Single pulse + group pulse combination
  • Cooling System:
    • Water Quality Requirement: Deionized water
    • Circulating Water Conductivity: <20 μs/cm
    • Cooling Water Temperature: 20 to 25℃
    • Water Flow Rate: 11 to 15 L

Applications

  • Treat skin pigmentary disorders
  • Treat tattoos and traumatic tattoos
  • Laser hair removal
  • Treat acne scars
  • Laser skin rejuvenation

Frequently Asked Questions

What is the wavelength of the 1064nm Long Pulse Laser Module?
The wavelength of the 1064nm Long Pulse Laser Module is 1064nm.
What are the main applications of the 1064nm Long Pulse Laser Module?
The main applications include treating skin pigmentary disorders, tattoos and traumatic tattoos, laser hair removal, treating acne scars, and laser skin rejuvenation.
What is the single pulse energy and maximum peak power of the module?
The single pulse energy is 80J and the maximum peak power is 10000W (8ms).
What precautions should be taken during the installation and operation of the laser module?
During installation, commissioning, and operation, pay attention to laser protection and the laser output direction. Do not start the machine without cooling water, and ensure the cooling system is functioning properly.
What is the pulse width and repetition frequency range of the laser module?
The pulse width ranges from 0.3 to 300ms, and the repetition frequency ranges from 0.5 to 10Hz.
What type of cooling system is required for the laser module?
The cooling system requires deionized water with a circulating water conductivity of less than 20μs/cm, a cooling water temperature between 20-25°C, a water flow rate of 11-15L/min, and water pressure of 0.25-0.3MPa (35-42psi).
What is the power supply type and power requirement for the laser module?
The power supply type is IGBT, and the power supply power requirement is approximately 4000W.

Got more questions? Use the inquiry form to ask the supplier directly.
