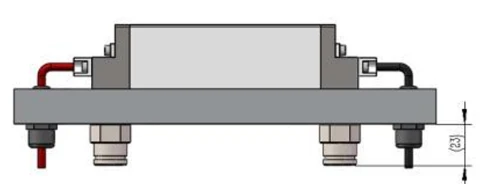

Thumbnail of 2100nm Long Pulse Holmium Laser Module for Medical Applications photo 1

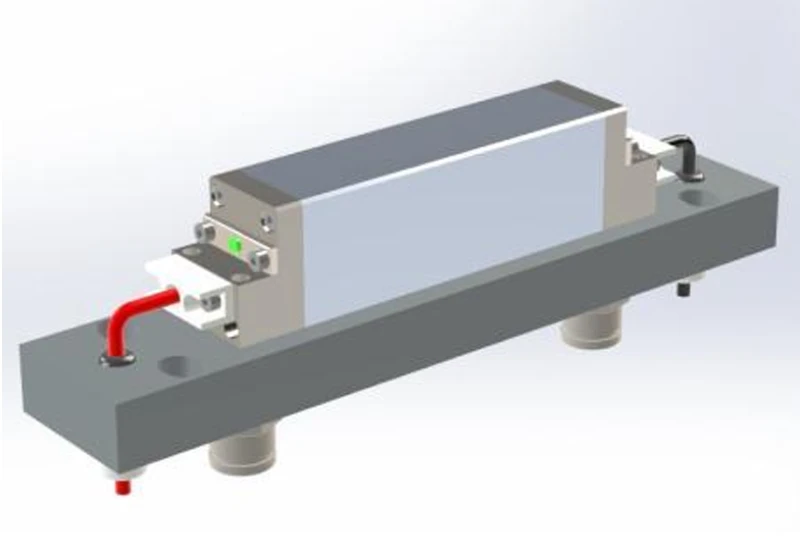

Thumbnail of 2100nm Long Pulse Holmium Laser Module for Medical Applications photo 2

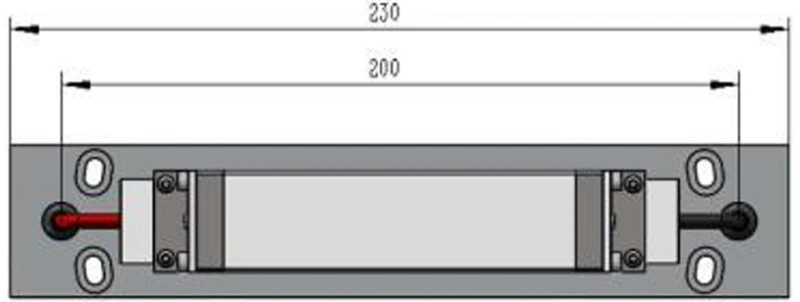

Thumbnail of 2100nm Long Pulse Holmium Laser Module for Medical Applications photo 3

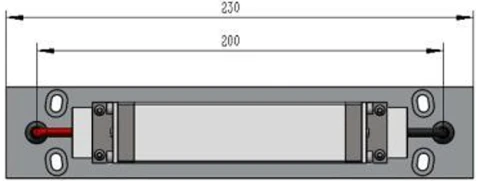

Thumbnail of 2100nm Long Pulse Holmium Laser Module for Medical Applications photo 4

Description

Introducing the 2100nm Long Pulse Laser Module by CRYSTECH Inc. This cutting-edge laser module is engineered for precision and efficiency, utilizing the advanced holmium laser technology. The holmium laser, operating at a wavelength of 2100nm, is a type of solid-state laser that employs a yttrium-aluminum-garnet (YAG) crystal doped with chromium, thulium, and holmium ions. This sophisticated combination ensures optimal energy transfer and activation, making it an ideal choice for various medical and surgical applications.

CRYSTECH's 2100nm pulsed laser module is meticulously designed to cater to the demands of the medical beauty market. It incorporates a side-pumping mode using xenon lamps, which enhances energy output and extends the service life of the device. The module boasts a compact structure, ensuring ease of installation and maintenance. Its robust design guarantees stability and reliability, making it a valuable addition to any medical facility.

Experience unparalleled performance with this laser module that promises a seamless operation. The simplicity of its design allows for straightforward usage, minimizing downtime and maximizing productivity. Its innovative construction not only supports high single-pulse energy and peak power but also ensures stable energy output over extended periods. This makes it a perfect fit for demanding environments where performance and longevity are paramount.

2100nm Long Pulse Holmium Laser Module for Medical Applications

Visit the CRYSTECH Inc. Store

Specifications

Avg. Power: 30 W
Wavelength: 2100 nm
Repetition Rate: 0.005 – 0.03 kHz
Spatial Mode (M^2): Not Specified
Pulse Duration: 0.4 ns
Pulse-to-Pulse Stability (RMS): 5 %
Cooling: Water-to-Water
Wavelength: 2100 nm
Beam Diameter: 4 mm
Maximum Single Pulse Energy: 3 J @ 10 Hz
Maximum Average Power: 30 W
Energy Stability (RMS): ≤ 5%
Pulse Width: 400～800 us
Repetition Frequency: 5～30 Hz
Injection Energy: ≤ 100 J
Power Supply Type: IGBT
Power Supply Power: ~2000 W
Peak Output Power Of Power Supply: ≤ 200 kW
Water Quality Requirement: Deionized water
Circulating Water Conductivity: < 20 µS/cm
Cooling Water Temperature: 20 ℃
Water Flow Rate: 11～15 L/min
Water Pressure: 0.25～0.3 MPa (35～42 psi)

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Compact Structure & Easy Installation: The module's design ensures a space-efficient setup and straightforward installation process.
  • High Single-Pulse Energy & High Peak Power: Delivers powerful energy output for effective surgical applications.
  • Stable Energy & Long Service Life: Offers consistent performance and durability, reducing the need for frequent replacements.
  • Wavelength: 2100nm
  • Beam Diameter: 4mm
  • Maximum Single Pulse Energy: 3J @ 10Hz
  • Maximum Average Power: 30W
  • Energy Stability (RMS): ≤5%
  • Pulse Width: 400～800µs
  • Repetition Frequency: 5～30Hz
  • Precautions:
    • Ensure laser protection during installation, commissioning, and operation.
    • Pay attention to the laser output direction during installation.
    • Do not start the machine without cooling water. Verify the cooling system is operational before starting the laser module.

Applications

  • Urinary Calculi
  • Prostatic Hyperplasia
  • Bladder Tumors
  • Urological Surgeries

Frequently Asked Questions

What is the wavelength of the 2100nm Long Pulse Laser Module?
The wavelength of the 2100nm Long Pulse Laser Module is 2100nm.
What are the primary applications of the Holmium laser?
The Holmium laser can be applied in surgical operations in departments such as urology, orthopedics, otolaryngology, dermatology, and gynecology.
What are the key features of the 2100nm Long Pulse Laser Module?
The key features include a compact structure, easy installation, high single-pulse energy, high peak power, stable energy, and long service life.
What is the maximum single pulse energy of the laser module?
The maximum single pulse energy of the laser module is 3J at 10Hz.
What precautions should be taken during the operation of the laser module?
During installation, commissioning, and operation, pay attention to laser protection, ensure the correct laser output direction, and do not start the machine without cooling water. Ensure the cooling system is working properly before starting the operation.
What are the cooling system requirements for the laser module?
The cooling system requires deionized water with a circulating water conductivity of less than 20 µS/cm, a cooling water temperature of 20°C, a water flow rate of 11 to 15 L/min, and a water pressure of 0.25 to 0.3 MPa (35 to 42 psi).
What is the repetition frequency range of the 2100nm Long Pulse Laser Module?
The repetition frequency range of the laser module is 5 to 30Hz.

Got more questions? Use the inquiry form to ask the supplier directly.
