Description
The Explorer® One™ is the most compact series of UV and green diode pumped solid state (DPSS) q-switch lasers in its class. The It’s in the Box™ design incorporates features such as the very compact air cooled design, short pulse width, high peak power and a feature rich software into one single package to satisfy customer needs with benefits such as ease-of-use and handling, high process quality and short time-to-market in cost sensitive tools.

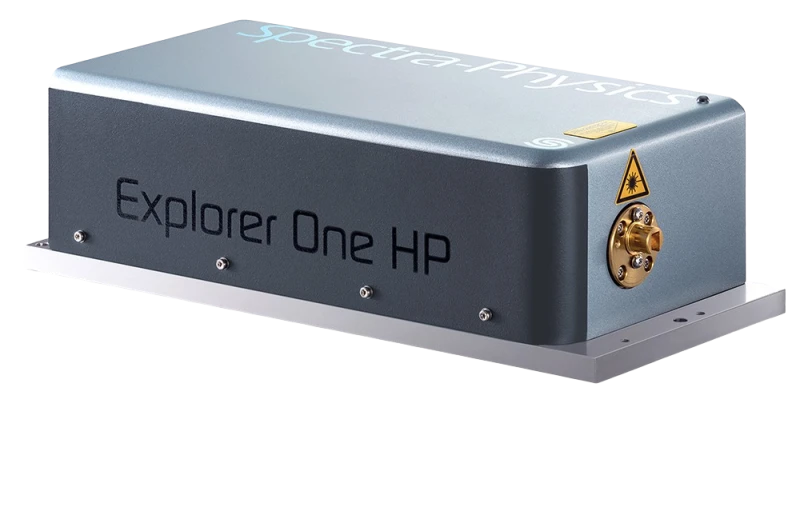

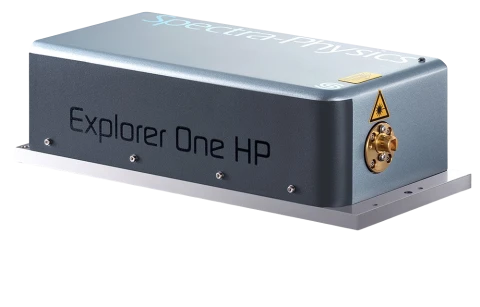

Explorer® One™ Compact UV and Green Lasers
MKS l Spectra-Physics
Specifications
| Spatial Mode (M^2): | 1.2 |
|---|---|
| Pulse-to-Pulse Stability (RMS): | 2 % |
| Cooling: | Water-to-Water |
| Power: | 800 mW at 355 nm |
| Power: | 2 W at 532 nm |
| Pulse Energy: | 120 µJ at 349 nm |
| Pulse Energy: | 80 µJ at 355 nm |
| Pulse Energy: | 180 µJ at 532 nm |
| Power: | 2 W at 355 nm |
| Power: | 5 W at 532 nm |
| Power: | 6 W at 355 nm |
| Weight: | 1.5 kg |
| Weight: | 4.1 kg |
| Beam Quality (M^2): | <1.1 |
Download Data Sheet
Features
- High Power – Up to >6 W at 355 nm and 5 W at 532 nm
- Lightweight – only 1.5 and 4.1 kg, air cooled design
- Unique It’s in the Box™ design – smaller than any competitive product
- Feature rich software for ease-of-use and simplified integration
- E-Track™ – active pulse energy and power control on selected mode
- Single pulse energy measurement from single shot to 500 kHz
- Rugged, reliable design and construction for demanding 24/7 applications
Applications
- LED Manufacturing
- OLED Display Manufacturing
- Flat panel display repair
- Laser Marking
- Intra-glass and glass surface marking
- UID marking
- Functional marking
- Wafer marking and processing
- Laser Cutting and Drilling Thin foils
- Laser Scribing Thin films
- PCB Manufacturing
- Resistor and Inductance Trimming
- Additive manufacturing - stereolithography
- MALDI-TOF mass spectrometry
- Laser microdissection
- UV titling
- LiDAR
Frequently Asked Questions
What is the Spectra-Physics Explorer One?
The Spectra-Physics Explorer One is a compact series of UV and green diode pumped solid state (DPSS) q-switch lasers designed for high performance and ease of use in precision manufacturing applications.
What are the key features of the Explorer One laser?
Key features include high power output (up to >6 W at 355 nm and 5 W at 532 nm), lightweight air-cooled design, compact 'It's in the Box' design, feature-rich software, E-Track active pulse energy and power control, and single pulse energy measurement from single shot to 500 kHz.
What applications are suitable for the Explorer One lasers?
Suitable applications include LED and OLED manufacturing, intra-glass and glass surface marking, UID and functional marking, wafer marking, micromachining, thin film scribing, additive manufacturing, MALDI-TOF mass spectrometry, laser microdissection, flat panel display repair, UV titling, and LIDAR.
What platforms are available for the Explorer One models?
The Explorer One models are available on three platforms: the standard platform, the high energy models, and the extended power platform (Explorer One XP), with varying power outputs.
How does the 'It's in the Box' design benefit users?
The 'It's in the Box' design provides a compact, all-in-one solution that simplifies integration, reduces space requirements, and offers ease-of-use for machine tool builders, especially when space is limited.
What makes the Explorer One lasers suitable for 24/7 applications?
The Explorer One lasers are rugged and durable, designed for longevity and long-term stability with features like short pulse width, unmatched pulse-to-pulse stability, and superior beam quality, making them ideal for demanding 24/7 industrial applications.
What are the weight specifications of the Explorer One laser models?
The Explorer One laser models are lightweight, with weights of only 1.5 kg and 4.1 kg, featuring an air-cooled design.
