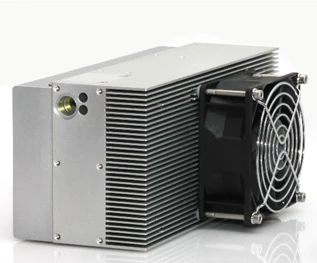

SOL 10W-1064nm: 1064nm Nanosecond Laser
Description
The SOL series is the most compact, air-cooled, Q-switched DPSS nanosecond laser available in the power range from 4W to 40W @ 1064nm. Available @ 1064nm, 532nm, and 355nm, the SOL laser series offers excellent beam quality and high peak power, capable of up to 10W and 650µJ at 532nm and 4W @ 355nm, making it the ideal source for the most demanding industrial and scientific applications. With a rugged, compact, lightweight, and easy to use single unit design, the SOL laser is easy to integrate into micro-machining and marking applications, providing superior operational flexibility and performance/cost ratio.
Benefits:
- Compact, air-cooled DPSS nanosecond laser:
- Easy to install and integrate into existing setups, saving time and effort.
- Rugged, lightweight single unit design that allows for easy and reliable integration:
- Ensures durability and reliability in industrial and scientific applications, reducing downtime and maintenance costs.
- Permanently aligned – integrated drive electronics – smart air-cooling:
- High-quality optical performance and consistent output power, with efficient and reliable cooling to ensure stable operation.
- New electronic interface for integration:
- Enables compliance with industry standards and regulations, ensuring safe and responsible operation.
- High peak power and excellent beam quality:
- Provides precise and powerful laser output, enabling high-quality and accurate results in a wide range of applications.
- Beam expanding and collimation optics.
- Allows for customization and flexibility in beam shaping and size control, optimizing performance for specific applications.
- Fiber coupling, pulse width modulation, and Monitoring photodiode.
- Enables further customization and control over laser output, enhancing performance and accuracy for specialized applications.
The laser’s permanently aligned monolithic optical resonator, electronic interface, and fiber coupling, pulse width modulation, and monitoring photodiode ensure ease of use and integration according to the most recent safety standards. Overall, the SOL series provides an excellent solution for OEM integrators, application specialists, and researchers working with scientific and industrial applications like OPO pumping, optogenetics, and various materials processing.
SOL 10W-1064nm: 1064nm Nanosecond Laser
Specifications |
|
|---|---|
| Avg. Power: | 10 W |
| Wavelength: | 1064 nm |
| Repetition Rate: | 1-100kHz |
| Spatial Mode (M^2): | 2 |
| Pulse Duration: | 10 ns |
| Pulse-to-Pulse Stability (RMS): | -- % |
| Cooling: | Air |
Features
- Up to 10W @ 1064nm
- Single Shot – 100kHz repetition rate
- 10ns to 50ns pulse width
- > 40 kW peak power
- Compact Air-cooled Single Unit
- Electronic pulse energy modulation
- Sealed and rugged
- Monolithic design
- 24 V dc
- RS232 monitor port
Applications
- Material Processing
- Marking
- Scribing
- Thin film removal
- Micro-machining
- Nonlinear optics
- Medical and Aesthetic
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2014
Frequently Asked Questions
The SOL series laser is available in the power range from 4W to 40W @ 1064nm.
The SOL laser series is available @ 1064nm, 532nm, and 355nm.
The benefits of the SOL laser series include compact, air-cooled DPSS nanosecond laser, rugged and lightweight single unit design, high peak power and excellent beam quality, and beam expanding and collimation optics.
The applications of the SOL series laser include material processing, marking, scribing, thin film removal, micro-machining, nonlinear optics, medical and aesthetic.
The pulse width range of the SOL series laser is from 10ns to 50ns.
