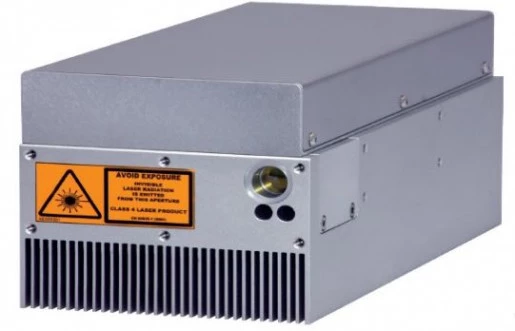

SOL 3W-532: 532nm Nanosecond Laser
Description
SOL laser series is a compact, air-cooled DPSS nanosecond laser that is capable of up to 40W and 2mJ at 1064nm, is offered in a rugged, lightweight single unit design that allows for easy and reliable integration in micro-machining and marking applications.
The SOL series design, available at both 1064nm and 532nm, is based on a permanently aligned monolithic optical resonator integrated with 24 Vdc powered drive electronics with integrated/smart forced air-cooling Due to the compact monolithic design, optical fibers and other delicate cable connections are not necessary for system integration.
The new electronic interface allows the user to integrate the laser according to the most recent safety standards for industrial machines (EN 13849) and to monitor the laser status through an RS232 port. A new version of the Control Box and a new proprietary Software Interface are available for simplified remote control and monitoring.
The high peak power and the excellent beam quality of SOL lasers make them the ideal source for the most demanding industrial and scientific applications. Compactness, insensitivity to environmental conditions and ease of handling guarantee superior operational flexibility and performance/cost ratio.
SOL 3W-532: 532nm Nanosecond Laser
Specifications |
|
|---|---|
| Avg. Power: | 3 W |
| Wavelength: | 532 nm |
| Repetition Rate: | 10-100kHz |
| Spatial Mode (M^2): | 2 |
| Pulse Duration: | 15 ns |
| Pulse-to-Pulse Stability (RMS): | 5 % |
| Cooling: | Air |
Features
- Up to 3W @ 1064nm
- Single Shot – 100kHz repetition rate
- 15ns to 70ns pulse width
- 300 kW peak power
- Compact Air-cooled Single Unit
- Electronic pulse energy modulation
- Sealed and rugged
- Monolithic design
- 24 V dc
- RS232 monitor port
Applications
- Material Processing
- Marking
- Scribing
- Thin film removal
- Micro-machining
- Nonlinear optics
- Medical and Aesthetic
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2014
Frequently Asked Questions
The peak power of the SOL-03-532 nanosecond laser is 300 kW.
The pulse width range of the SOL-03-532 nanosecond laser is 15ns to 70ns.
The repetition rate of the SOL-03-532 nanosecond laser is from single shot to 100kHz.
The SOL-03-532 nanosecond laser is suitable for material processing, marking, scribing, thin film removal, micro-machining, nonlinear optics, medical and aesthetic applications.
The SOL-03-532 nanosecond laser has an RS232 port for monitoring the laser status and a new proprietary software interface for simplified remote control and monitoring.
