Description
Talon Mark is a high-performance industrial laser engineered for ultra-high-speed on-the-fly marking and coding applications in the Food & Beverage industry. Its broad operating range makes it ideal for demanding environments where extended production cycles depend on consistent beam quality and maximum uptime. Key features such as advanced pulse control for first-pulse suppression, pulse-on-demand, and pulse-synchronized output deliver superior process control and consistently precise marking results.

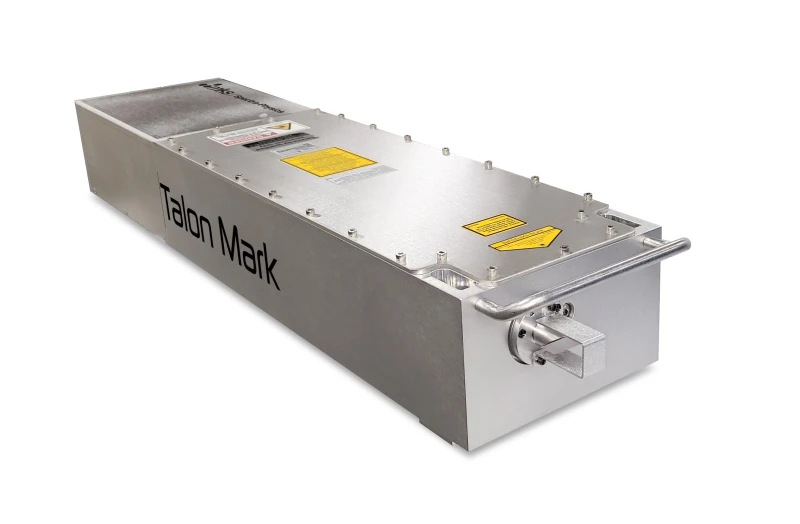

Talon® Mark High-Power UV Nanosecond Lasers
MKS l Spectra-Physics
Specifications
Avg. Power: | 20 W |
---|---|
Wavelength: | 355 nm |
Spatial Mode (M^2): | 1.2 |
Pulse Duration: | 28 ns |
Pulse-to-Pulse Stability (RMS): | 2 % |
Cooling: | Water-to-Water |
Wavelength: | 355 nm |
Power: | >15 W @ 50 kHz |
Power: | >20 W @ 50 kHz |
Pulse Energy: | >300 μJ |
Pulse Energy: | >400 μJ |
Repetition Rate: | up to 150 kHz |
Pulse Width: | <28 ns @ 50 kHz |
Pulse-to-Pulse Energy Stability: | <2% rms @ 50 kHz |
Spatial Mode: | TEM00 |
M2: | <1.2 |
Polarization Ratio: | >100:1 vertical |
Output Beam Diameter: | 2.0 mm collimated |
Beam Divergence (full Angle): | <0.3 mrad |
Beam Circularity: | >90% |
Features
- Designed for high-speed precision marking and coding
- 20 W, 400 μJ for high-throughput, high-contrast marks
- Scanner ready for user friendly, seamless integration
- Cleanroom sealed manufacturing for climate proof operation
- 24/7 reliability and predictable long lifetime for low COO
Applications
- Laser Marking and Coding for Food & Beverage
- Ultra-High-Speed Marking and On-The-Fly-Marking (MOTF) for Packaging
- Precision Marking in Medical and Life, Health, and Science
Frequently Asked Questions
What is the Talon Mark laser designed for?
The Talon Mark is designed for ultra-high-speed on-the-fly marking and coding applications, particularly in the Food & Beverage industry.
What are the key features of the Talon Mark laser?
Key features include advanced pulse control for first-pulse suppression, pulse-on-demand, pulse-synchronized output, and a user-friendly design for seamless integration.
What makes the Talon Mark laser reliable?
The Talon Mark is built for reliability with features such as long-life diodes, robust optical and electronics engineering, and a design that supports continuous 24/7 operation.
What power and pulse energy does the Talon Mark UV20 model deliver?
The Talon Mark UV20 model delivers over 20 W of UV power and greater than 400 μJ per pulse.
How does the Talon Mark ensure high-quality marking results?
The Talon Mark ensures high-quality results through exceptional pulse-to-pulse stability, high-quality TEM00 mode, and advanced control features.
What applications is the Talon Mark suitable for?
The Talon Mark is suitable for laser marking and coding in Food & Beverage, ultra-high-speed marking for packaging, precision marking in medical and scientific fields, and consumer goods marking.
How is the Talon Mark laser controlled?
The Talon Mark can be controlled remotely via RS-232 or USB interfaces, and it features onboard electronics with extensive data logging capabilities.
