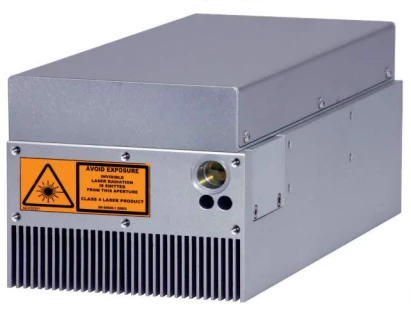

SOL 5W-532: 532nm Nanosecond Laser

Name: SOL 5W-532: 532nm Nanosecond Laser
Brand: RPMC Lasers, Inc.
Availability: InStock

Description

SOL is the most compact Q-switched DPSS nanosecond laser from Bright Solutions available in the power range 4W to 40W in the IR, 3W to 10W at 532nm and 2W of 355nm. These air-cooled DPSS nanosecond lasers are offered in a rugged and lightweight single unit, designed to allow easy and reliable integration in micro-machining and marking applications.

The SOL single unit design is based on a permanently aligned monolithic optical resonator integrated with 24 Vdc powered driving electronics. Cooling of the unit is provided by low noise fans.

Specifications

Avg. Power:	5 W
Wavelength:	532 nm
Repetition Rate:	0.001 – 100 kHz
Spatial Mode (M^2):	2
Pulse Duration:	10 ns
Pulse-to-Pulse Stability (RMS):	5 %
Cooling:	Air

Download Data Sheet

Features

Up to 5W @ 532nm

Single Shot – 100kHz repetition rate

10ns to 60ns pulse width

> 40 kW peak power

Compact Air-cooled Single Unit

Electronic pulse energy modulation

Sealed and rugged

Monolithic design

24 V dc

RS232 monitor port

Applications

Material Processing

Marking

Scribing

Thin film removal

Micro-machining

Nonlinear optics

Medical and Aesthetic

Name

Work Email

Organization (recommended)

Country

Your message to supplier

Add to Watchlist (My Watchlist)

Ships from:

United States

Sold by:

RPMC Lasers, Inc.

On FindLight:

since 2014

Got Questions? Ask Above ▲

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply

Frequently Asked Questions

What is the power range of the SOL-05-532 laser?

The SOL-05-532 laser is available in the power range of 3W to 10W at 532nm.

What is the pulse width range of the SOL-05-532 laser?

The pulse width range of the SOL-05-532 laser is 10ns to 60ns.

What is the peak power of the SOL-05-532 laser?

The peak power of the SOL-05-532 laser is greater than 40 kW.

What kind of cooling system does the SOL-05-532 laser have?

The SOL-05-532 laser has an air-cooled system with low noise fans.

What are some of the applications of the SOL-05-532 laser?

The SOL-05-532 laser can be used for material processing, marking, scribing, thin film removal, micro-machining, nonlinear optics, medical and aesthetic purposes.
