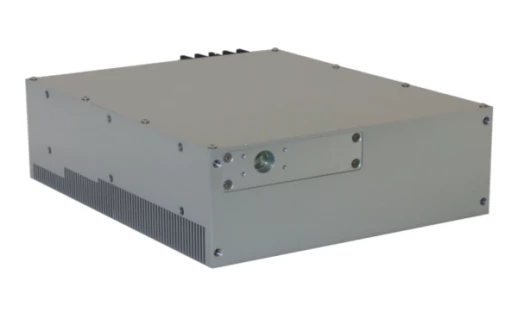

Wedge XB 532nm: 532nm Nanosecond Laser
Description
The Wedge-XB laser series is a sub-nanosecond, 4mJ, single shot to 2KHz, air-cooled laser capable of 4MW of peak power at 1064nm. Second, third and fourth harmonics options (532nm, 355nm and 266nm) and wavelength conversion option (1.5um) widen the Wedge’s applications range.
Based on a proprietary fast active Q-Switching technology, these sealed DPSS lasers are insensitive to vibrations and harsh environments. The compact and lightweight package represents a great benefit in LIDAR and other aerospace applications, while short pulses and high peak powers, with relatively low heat generation, allows for efficient ablation and non-linear interaction in materials used for OEM applications such as micro-machining and specialty marking of glass, metals, polymers and other hard and soft materials, as well as scientific applications, including LIBs, spectroscopy and medical diagnostics.
Wedge is a flexible platform for realizing custom solutions such as meeting specific time/energy requirements, vibe/shock or other extreme environmental conditions, as well as compliance to Mil-specifications. High power amplifiers can be added to standard oscillators in order to increase performance and meet the demands of a variety of industrial and aerospace applications.
Several Wedge based MOPA lasers are currently employed as “optical engines” in high-demanding field applications. Performance, flexibility, industry proven reliability and overall low total cost of ownership makes the Wedge Series an ideal solution for many industrial, defense and scientific applications.
Wedge XB 532nm: 532nm Nanosecond Laser
Specifications |
|
|---|---|
| Avg. Power: | 2 W |
| Wavelength: | 532 nm |
| Repetition Rate: | 0.001-1kHz |
| Spatial Mode (M^2): | 5 |
| Pulse Duration: | 1.5 ns |
| Pulse-to-Pulse Stability (RMS): | 5 % |
| Cooling: | Air |
Features
- > 2mJ pulse energy
- 2MW of peak power
- <1.2ns pulse width
- Single shot to 1kHz
- Monolithic design
- Air cooling
- Low heat waste
- MOPA configurations
Applications
- LIDAR
- Micromachining of glass
- Specialty marking
- Thin film removal
- Non-linear spectroscopy
- Harmonic and parametric generation
- Visible to IR OPO pumping
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2014
Frequently Asked Questions
The Wedge-XB laser series is a sub-nanosecond, 4mJ, single shot to 2KHz, air-cooled laser capable of 4MW of peak power at 1064nm.
The Wedge-XB laser series offers second, third, and fourth harmonics options (532nm, 355nm, and 266nm) and a wavelength conversion option (1.5um).
The Wedge-XB laser series is suitable for LIDAR, aerospace, micromachining of glass, specialty marking, thin film removal, non-linear spectroscopy, harmonic and parametric generation, visible to IR, and OPO pumping applications.
No, the Wedge-XB laser series is insensitive to vibrations and harsh environments due to its proprietary fast active Q-Switching technology.
Yes, the Wedge-XB laser series is a flexible platform that can be customized to meet specific time/energy requirements, vibe/shock or other extreme environmental conditions, as well as compliance to Mil-specifications.
