Description

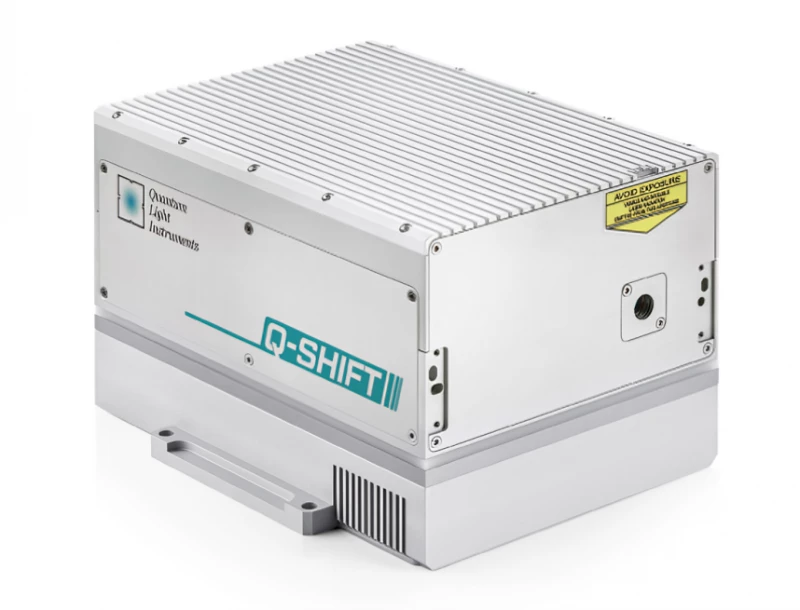

The Quantas-Q-SHIFT-WXXXX series is a sleek, modern, light grey colored high energy nanosecond DPSS laser housing designed for researchers and application specialists. It offers unconventional DPSS wavelengths ranging from 291 nm to 1571 nm, with options for up to the 4th harmonic. This air-cooled, water-free ns high-energy DPSS laser provides high peak power pulses up to 40 mJ and high average power up to 800 mW. With high-speed triggering and low jitter, this laser series is suitable for various applications including micromachining, dermatology, LIDAR, time-resolved laser spectroscopy, and LIBS.

Quantas-Q-SHIFT-1317: High Energy ns Pulsed DPSS Laser

Specifications

Avg. Power: 1 W
Wavelength: 1317 nm
Repetition Rate: 0.01 – 0.1 kHz
Pulse Duration: 2 ns
Pulse-to-Pulse Stability (RMS): 2 %
Cooling: Air
Pulse Energy: 2 to 20 mJ
Beam Divergence: 3.0 mrad
Polarization: Linear, > 95 %
Jitter (RMS): < 0.5 ns
Laser Head (W×L×H): 190 × 408 × 155 mm³
Controller Unit (W×L×H):: 108 × 191 × 59 mm³
Power Adapter (W×L×H): 89 × 422 × 330 mm³
Ambient Temperature: 15-30 ℃
Relative Humidity (non-condensing): 10-80 %
Mains Voltage: 90 – 230 VAC, single phase, 47 – 63 Hz
Lifetime: >2 G shots
Q-switch Type: Active
Power Drif: ± 3.0 %

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Fundamental Wavelength Options: 1163, 1177, 1300, 1317, 1551, and 1571 nm
  • Harmonic Options: Up to 4th harmonic
  • Peak Power: Up to 40 mJ
  • Average Power: Up to 800 mW
  • Cooling: Air-cooled, water-free
  • High-speed Triggering
  • Jitter: <0.5ns RMS
  • Shot Lifetime: >2 G

Applications

  • Micromachining
  • Dermatology
  • LIDAR
  • Time-resolved laser spectroscopy
  • LIBS (Laser-Induced Breakdown Spectroscopy)

Frequently Asked Questions

What applications is the Quantas-Q-SHIFT-1317 high energy ns DPSS laser suitable for?
This laser is engineered for tasks that need high peak power pulses, such as laser micro-machining, dermatology treatments, safe-distance LiDAR, material ablation, time-resolved spectroscopy, and LIBS.
What wavelength does the Quantas-Q-SHIFT-1317 DPSS laser operate at?
It operates at a fundamental wavelength of 1317 nm.
What is the maximum pulse energy for the Quantas-Q-SHIFT-1317 nanosecond DPSS laser?
It can deliver pulse energies up to 20 mJ.
How fast can the Quantas-Q-SHIFT-1317 nanosecond high energy DPSS laser pulse?
It has a variable pulse repetition rate up to 100 Hz.
What are the cooling requirements for this high energy DPSS laser?
The Quantas-Q-SHIFT-1317 is air-cooled and does not require water cooling.
Can the Quantas-Q-SHIFT-1317 be integrated with other systems?
Yes, it includes synchronization features for triggering compatible user equipment and can be remotely monitored and controlled via an Ethernet interface.
Does the Quantas-Q-SHIFT-1317 DPSS laser offer harmonic generation?
Yes, optional standalone harmonic generators for 2nd, 3rd, and 4th harmonics are available.
What is the pulse duration for this ns DPSS laser?
The pulse duration ranges from 2 to 5 nanoseconds.
What power supply is required for the Quantas-Q-SHIFT-1317 nanosecond DPSS laser?
It can be powered from an appropriate 12 or 28 VDC power source.
How stable is the pulse energy output of the Quantas-Q-SHIFT-1317?
The laser offers pulse energy stability with less than 2.0% RMS variation.

Got more questions? Use the inquiry form to ask the supplier directly.
