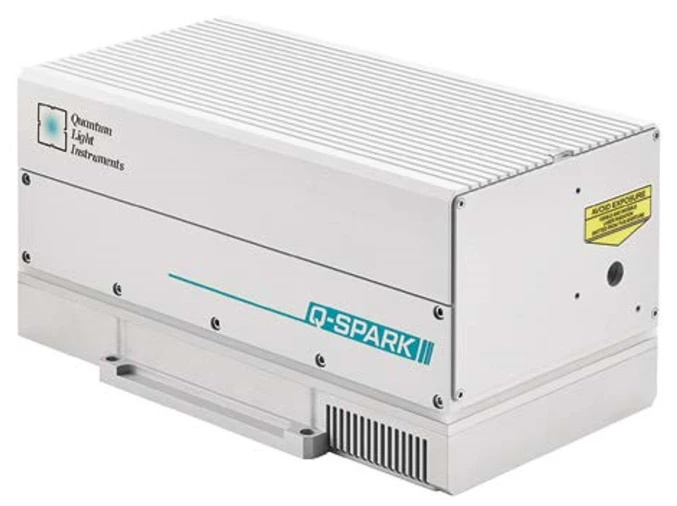

Quantas-Q-SPARK-1064 High Energy Compact Nanosecond DPSS Laser
Description
The Quantas-Q-SPARK series is a state-of-the-art, diode-pumped, air-cooled, Q-switched laser system designed to deliver high-energy pulses at 1064 nm with peak power up to 20 MW. The series offers flexibility in pulse durations, ranging from sub-nanosecond at 750 ps to under 2 ns, accommodating a diverse set of application requirements. The lasers can operate at a repetition rate of up to 100 Hz and ensure longevity with a greater than 2 Gshot lifetime of pump diodes.
Key features include optional harmonic generation up to the fourth harmonic and synchronization capabilities with built-in pulse generators for precise control over pulse emissions. Users can expect a high degree of stability and control due to remote monitoring and built-in Ethernet interfaces, which also facilitate easy integration with other user devices.
Q-SPARK lasers are tailored for applications that require powerful and short pulses such as LIBS, LIDAR, TOFS, TRS, and various spectroscopy techniques, alongside practical uses in dermatology and ophthalmology. The flexibility of the Q-SPARK series is further enhanced by a range of auxiliary equipment including motorized attenuators, pulse energy monitors, and options for fiber-coupled output, ensuring it meets specific experimental setups and requirements.
Quantas-Q-SPARK-1064 High Energy Compact Nanosecond DPSS Laser
Specifications |
|
|---|---|
| Avg. Power: | 0.02 W |
| Wavelength: | 1064 nm |
| Repetition Rate: | 0-0.1kHz |
| Spatial Mode (M^2): | -- |
| Pulse Duration: | 0.75 ns |
| Pulse-to-Pulse Stability (RMS): | <1.5 % |
| Cooling: | Air |
| Pulse Energy: | 1 to 20 mJ |
| Q-Switch Type: | passive, Cr:YAG/active, Pockels cell |
| Typical Pulse Duration: | < 2 ns |
| Linewidth: | SLM |
| Power Drift: | ± 3.0 % |
| Beam Divergence: | <1.5 mrad |
| Polarization: | linear, horizontal |
| Jitter (RMS): | 1 µs |
| Transmission Range: | 0.5-95 % |
| Laser Head (W×L×H): | 140 × 277 × 135 mm³ |
| Controller Unit (W×L×H): | 108 × 191 × 59 mm³ |
| Power Adapter (W×L×H) Typical (for +12 VDC Output): | 50 × 125 × 32 mm³ |
| Ambient Temperature: | 15-30 ℃ |
| Relative Humidity (non-condensing): | 10 – 80 % |
| Mains Voltage: | 90 – 230 VAC, single phase, 47 – 63 Hz |
Features
- Wavelength: 1064 nm
- Pulse Energy: 1 mJ to 20 mJ
- Peak Power: Up to 20 MW
- Harmonic Options: Available in Multiple Harmonic Options
- Repetition Rate: Up to 100 Hz
- Shot Lifetime of Pump Diodes: >2 G shots
- Remote Monitoring, Control, and Support
- Built-in Sync Pulse Generator
- Air-cooled
- Active or Passive Q-Switching
Applications
- Ablation
- LIDAR (Light Detection and Ranging)
- Remote Sensing
- LIBS (Laser-Induced Breakdown Spectroscopy)
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2014
Frequently Asked Questions
Up to 20 mJ
From 750 ps to less than 1.5 ns, depending on the Q-switching mode.
Yes, with optional harmonic generators, it can produce 2nd, 3rd, and 4th harmonic wavelengths.
It operates at repetition rates from 10 Hz to 100 Hz.
No, it is air-cooled and does not require water cooling.
Through a built-in Ethernet interface with remote monitoring and control capabilities.
Yes, with an optional attachable motorized attenuator.
Yes, it is available upon request. Please inquire for detailed specifications.
Guaranteed to be over 2 Gshot.
Yes, it has a built-in sync pulse generator for triggering user equipment.
