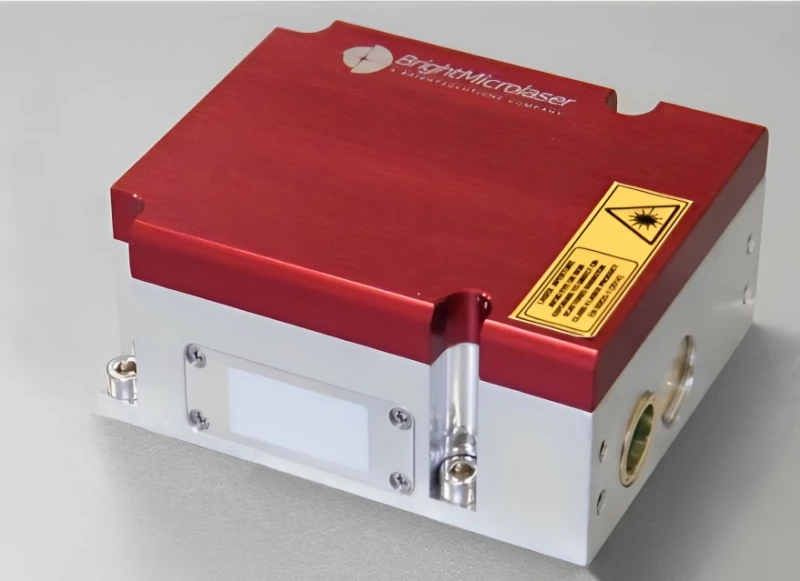

Thumbnail of SB1-266: 1.3 ns Microchip Laser 266nm photo 1

Description

Experience precision in laser technology with the SB1-266, a DPSS laser by RPMC Lasers Inc. This nanosecond pulsed laser emits at a wavelength of 266nm, delivering up to 2µJ pulse energy with a duration of 1.3ns and a pulse repetition rate of up to 10 kHz.

With exceptional beam quality and single longitudinal mode operation, this deep ultraviolet (DUV) laser is perfect for a variety of applications, including LIDAR, 3D scanning, LIBS, and more. Its compact and rugged design ensures reliability in challenging environments.

SB1-266: 1.3 ns Microchip Laser 266nm

Visit the RPMC Lasers, Inc. Store

Specifications

Avg. Power: 0.001 W
Wavelength: 266 nm
Repetition Rate: 1 – 10 kHz
Spatial Mode (M^2): 1.3
Pulse Duration: 1.3 ns
Pulse-to-Pulse Stability (RMS): 5 %
Cooling: Air
Peak Power: >0.4 kW
Short Term Output Energy Instability (St.Dev. Over > 10000 Samples): <3 %
Long Term Output Power Instability (Power Log Over 24 Hours): <5 %
Output Beam Diameter At Exit Aperture (1/e2) Without Beam Expander: <2 mm
Secondary Output Wavelength: 532 nm
Beam Ellipticity (axes Ratio): >0.80 min
Warm Up Time (after Cold Start): <5 min
Power Consumption: <20 W
Mechanical Package: SB1
Operational Temperature Range: +10 to +40 ℃
Storage Temperature Range: -20 to +60 °C

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

Options Available:

  • Beam Expander and Collimator
  • Heat-sink
  • Development Kit
  • Quick Start/Evaluation Kit

Applications

  • Laser Marking: Ideal for precision marking on various materials due to its high peak power and short pulse width.
  • Micromachining: Suitable for applications requiring fine detail and minimal thermal impact, such as drilling and cutting of small features.
  • Scientific Research: Used in laboratories for experiments requiring a stable and precise UV laser source.
  • Fluorescence Excitation: Effective for applications in spectroscopy and microscopy where UV excitation is needed.
  • Semiconductor Inspection: Utilized in the inspection of semiconductor wafers and components due to its high beam quality and stability.
  • Material Processing: Applicable in processes like ablation and surface structuring where controlled energy delivery is crucial.
  • Biomedical Applications: Used in procedures that require precise and controlled laser energy delivery.

Frequently Asked Questions

What is the primary output wavelength of the SB1-266-0.5-10 laser?
The primary output wavelength of the SB1-266-0.5-10 laser is 266nm.
What is the pulse repetition rate of the SB1-266-0.5-10 DUV laser?
The pulse repetition rate of the SB1-266-0.5-10 laser is up to 10kHz.
What is the pulse energy of the SB1-266-0.5-10 DUV DPSS laser?
The pulse energy of the SB1-266-0.5-10 laser is up to 0.5µJ.
What is the size of the SB1-266-0.5-10 DUV laser?
The size of the SB1-266-0.5-10 laser is 36mm x 60mm x 19mm^3.
What are some applications of the SB1-266-0.5-10 dee ultraviolet DPSS laser?
Some applications of the SB1-266-0.5-10 laser include biophotonics, LIBS, LiDAR, telemetry, laser manufacturing, micromachining, spectroscopy, and Raman.

Got more questions? Use the inquiry form to ask the supplier directly.
