Description
Introducing a miniaturized Q-Switched DPSS Laser designed to deliver exceptional performance in a compact form. This innovative laser system is engineered for precision and efficiency, making it an ideal choice for various demanding applications. With its sleek and compact design, this pulsed DPSS laser offers unparalleled versatility and ease of integration into existing systems.
This NIR DPSS laser boasts a maximum output power of up to 3W, ensuring robust performance for high-demand tasks. Its Q-Switch repetition rate of up to 30 kHz allows for rapid and precise operations, while the pulse energy of 100 μJ guarantees consistent and reliable results. Operating at a wavelength of 1 μm, this laser system is optimized for a wide range of applications, providing users with the flexibility they need to achieve their goals.
Designed with user convenience in mind, this pulsed DPSS laser features a pulse width ranging from 10 to 20 ns, ensuring optimal performance across various tasks. The beam quality, with an M2 value of less than 1.5, ensures high precision and accuracy. The integrated beam expander option further enhances its capabilities, allowing for tailored beam diameters to suit specific requirements.
This laser system is powered by a 15 V DC power supply, with a current requirement of less than 5 A, making it energy-efficient and easy to power. The contact-cooled design ensures effective thermal management, maintaining optimal performance even during extended use. With dimensions of 13 x 7 x 4 cm and a weight of less than 1 kg, this 1um DPSS laser is compact and lightweight, facilitating easy handling and installation.

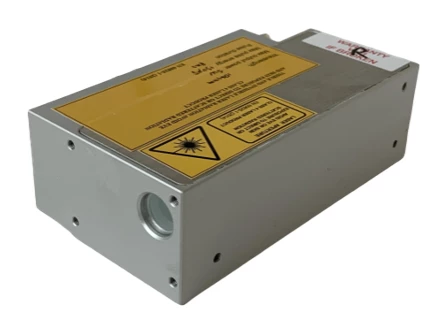

ONE-1030 Miniature Q-Switched Laser 1030nm
Specifications
Avg. Power: | 3 W |
---|---|
Wavelength: | 1000 nm |
Repetition Rate: | 30 – 30 kHz |
Spatial Mode (M^2): | 1.5 |
Pulse Duration: | 10 ns |
Cooling: | Conductive |
Beam Diameter @ 1/e2 (integrated BEX): | <8 mm |
DC Power Supply: | 15 V / < 5 A |
Dimensions: | 13 x 7 x 4 cm |
Weight: | <1 kg |
Features
- Average Power: Up to 3W
- Pulse Energy: Up to 100uJ
- Pulse Duration: 5ns to 20ns
- Factory Set Repetition Rate: Up to 30kHz
- Conductively Cooled for Reliability
Applications
- Materials Processing
- Airborne LIDAR
- Marking and Engraving
- Instrumentation
- Measurement
- Portable LiDAR
Frequently Asked Questions
What is the maximum average power of this NIR DPSS laser?
What is the pulse energy of this 1um DPSS laser?
What is the repetition rate of this pulsed DPSS laser?
What are some applications of the pulsed DPSS laser?
What are the dimensions and weight of the laser?
