Description

The Wedge-HB laser series is a sub-nanosecond, 4mJ, single shot to 2KHz, air-cooled laser capable of 4MW of peak power at 1064nm. Second, third and fourth harmonics options (532nm, 355nm and 266nm) and wavelength conversion option (1.5um) widen the Wedge’s applications range. Based on a proprietary fast active Q-Switching technology, these sealed DPSS lasers are insensitive to vibrations and harsh environments.

The compact and lightweight package represents a great benefit in LIDAR and other aerospace applications, while short pulses and high peak powers, with relatively low heat generation, allows for efficient ablation and non-linear interaction in materials used for OEM applications such as micro-machining and specialty marking of glass, metals, polymers and other hard and soft materials, as well as scientific applications, including LIBs, spectroscopy and medical diagnostics.

Wedge is a flexible platform for realizing custom solutions such as meeting specific time/energy requirements, vibe/shock or other extreme environmental conditions, as well as compliance to Mil-specifications. High power amplifiers can be added to standard oscillators in order to increase performance and meet the demands of a variety of industrial and aerospace applications.

Several Wedge based MOPA lasers are currently employed as “optical engines” in high-demanding field applications. Performance, flexibility, industry proven reliability and overall low total cost of ownership makes the Wedge Series an ideal solution for many industrial, defense and scientific applications.

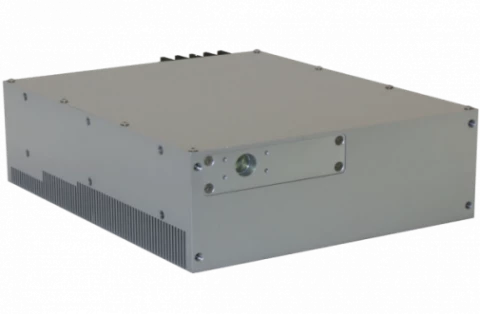

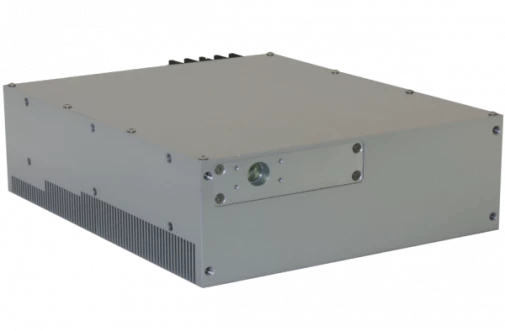

Wedge HB 532nm: 532nm Nanosecond Laser

Specifications

Avg. Power: 2 W
Wavelength: 532 nm
Repetition Rate: 0.001 – 2 kHz
Spatial Mode (M^2): 2
Pulse Duration: 1.5 ns
Pulse-to-Pulse Stability (RMS): 5 %
Cooling: Air

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • >1mJ pulse energy
  • >1MW peak power
  • 900ps to 1.5ns pulse width
  • Single shot to 2kHz
  • Monolithic design
  • Air cooling
  • Low heat waste
  • MOPA configurations

Applications

  • LIDAR
  • Micromachining of glass
  • Specialty marking
  • Thin film removal
  • Non-linear spectroscopy
  • Harmonic and parametric generation
  • Visible to IR OPO pumping
  • Terahertz generation

Frequently Asked Questions

What is the pulse energy of the Wedge-HB-532 green pulsed DPSS laser?
The Wedge-HB-532 laser has a pulse energy of >1mJ.
What is the peak power of the Wedge-HB-532 green pulsed DPSS laser?
The Wedge-HB-532 laser has a peak power of >1MW.
What is the pulse width of the Wedge-HB-532 green pulsed DPSS laser?
The Wedge-HB-532 laser has a pulse width of 900ps to 1.5ns.
What are some applications of the Wedge-HB-532 laser?
The Wedge-HB-532 laser can be used in LIDAR, micromachining of glass, specialty marking, thin film removal, non-linear spectroscopy, harmonic and parametric generation, visible to IR, OPO pumping, and terahertz generation.
Is the Wedge-HB-532 laser suitable for harsh environments?
Yes, the Wedge-HB-532 laser is insensitive to vibrations and harsh environments due to its proprietary fast active Q-Switching technology.

Got more questions? Use the inquiry form to ask the supplier directly.
