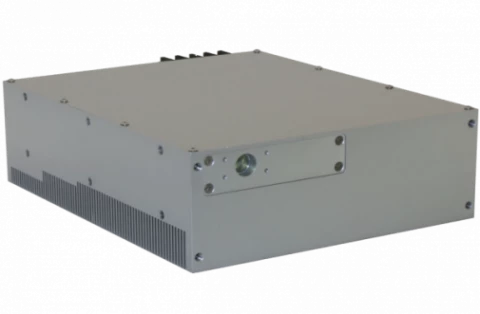

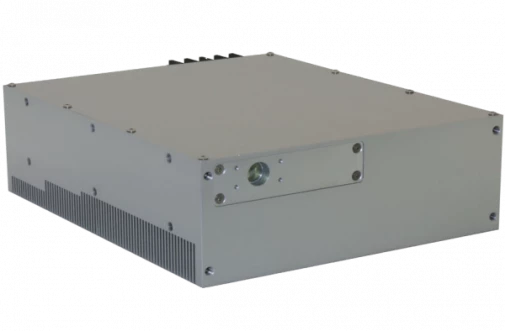

Wedge-XB-1064: 1064nm Nanosecond Laser
The Wedge-XB laser series is a sub-nanosecond, 4mJ, single shot to 2KHz, air-cooled laser capable of 4MW of peak power at 1064nm. Second, third and fourth harmonics options (532nm, 355nm and 266nm) and wavelength conversion option (1.5um) widen the Wedge’s applications range. Based on a proprietary fast active Q-Switching technology, these sealed DPSS lasers are insensitive to vibrations and harsh environments. The compact and lightweight package represents a great benefit in LIDAR and other aerospace applications, while short pulses and high peak powers, with relatively low heat generation, allows for efficient ablation and non-linear interaction in materials used for OEM applications such as micro-machining and specialty marking of glass, metals, polymers and other hard and soft materials, as well as scientific applications, including LIBs, spectroscopy and medical diagnostics.
Wedge is a flexible platform for realizing custom solutions such as meeting specific time/energy requirements, vibe/shock or other extreme environmental conditions, as well as compliance to Mil-specifications. High power amplifiers can be added to standard oscillators in order to increase performance and meet the demands of a variety of industrial and aerospace applications. Several Wedge based MOPA lasers are currently employed as “optical engines” in high-demanding field applications.
Performance, flexibility, industry proven reliability and overall low total cost of ownership makes the Wedge Series an ideal solution for many industrial, defense and scientific applications.
- Avg. Power: 1 W
- Wavelength: 1064 nm
- Repetition Rate: 0.001 - 1 kHz
- Spatial Mode (M^2): 5
- Pulse Duration: 1.5 ns
- Pulse-to-Pulse Stability (RMS): 5 %
- Cooling: Air
Micromachining of glass
Thin film removal
Harmonic and parametric generation
Visible to IR OPO pumping
Up to 4mJ pulse energy
4MW of peak power
<1.5ns pulse width
Single shot to 1kHz
Low heat waste
