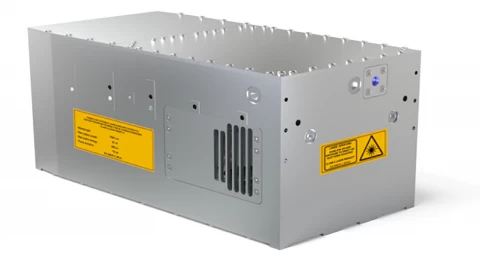

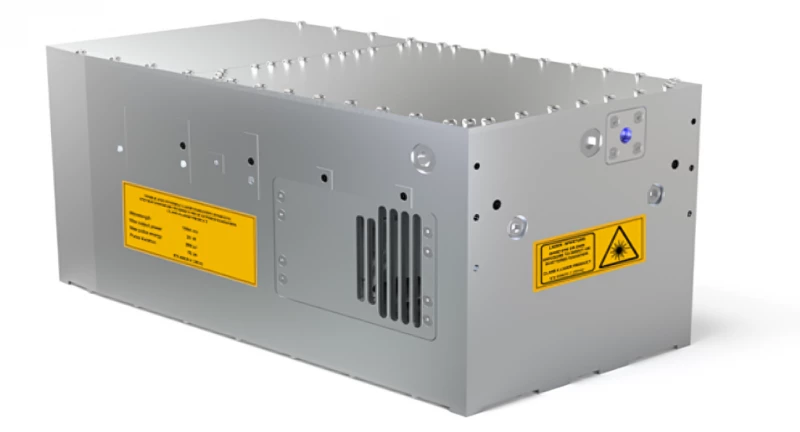

Lampo Deep-UV 266nm Compact Ultrafast DPSS Laser
Description
The Lampo Deep-UV laser represents the pinnacle of Diode-Pumped Solid State (DPSS) laser engineering, optimized for ultrafast applications requiring picosecond (ps) pulse widths. This series is characterized by its ability to generate pulses with peak powers up to 0.5 MW, combined with an adjustable Pulse Repetition Rate (PRR) spanning from 50 kHz to 40 MHz, ensuring unparalleled precision and flexibility in a wide array of applications.
Technical Specifications and Performance: Engineered for demanding environments, the Lampo Deep-UV laser achieves pulse durations of less than 70 ps, with an average output power reaching up to 1.5W. This performance parameter makes it an indispensable tool in sectors ranging from scientific research and industrial processing to defense, medical diagnostics, and biological studies. The laser's capability to deliver high peak power while maintaining compact dimensions underscores its utility in sophisticated LIDAR systems, where precision and reliability are paramount.
Design and Integration: Housed in a compact and robust air-cooled chassis, the Lampo Deep-UV laser is designed for seamless integration into existing systems, with minimal space and cooling requirements. The inclusion of an Active Q-Switch mechanism enhances the control over pulse characteristics, further broadening the laser's applicability across various technical disciplines.
Lampo Deep-UV 266nm Compact Ultrafast DPSS Laser
Specifications |
|
|---|---|
| Avg. Power: | 1.5 W |
| Wavelength: | 266 nm |
| Repetition Rate: | 50-40000kHz |
| Spatial Mode (M^2): | -- |
| Pulse Duration: | 0.05-0.07 ns |
| Pulse-to-Pulse Stability (RMS): | -- % |
| Cooling: | Air |
| Laser Beam Quality: | <1.5 |
| Laser Pulse Energy: | 30 uJ |
| Laser Peak Power: | 0.55 MW |
| Q-Switch: | Active |
| Laser Linewidth: | <0.1 nm |
| Sync Signal Output: | yes |
| Laser Supply Voltage: | 24 V |
| Laser Supply Power: | <350 W |
| Operating Temperature Range: | 15-35 °C |
| Laser Head Dimensions: | 40x15x13 cm3 |
| Weight: | <10 kg |
Features
- Up to 1.5W average power
- High peak power (up to 0.5MW)
- 50kHz to 40MHz repetition rates
- <70ps pulse width
- High beam quality
- Versatile specs for many applications
- Compact & robust design
- Air cooled
- Active Q-Switch
Applications
- Scientific research
- Industrial processing
- Defense applications
- Medical procedures
- Biological studies
- LIDAR systems
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2014
Frequently Asked Questions
The Lampo Deep-UV laser excels with its picosecond pulse widths below 70 ps and high peak power up to 0.5 MW, ideal for precise, high-impact applications in various fields.
With an adjustable Pulse Repetition Rate (PRR) from 50 kHz to 40 MHz and peak powers reaching 0.5 MW, the Lampo Deep-UV series offers unparalleled flexibility for scientific, industrial, and medical applications.
Its compact, air-cooled design ensures easy integration into systems with limited space, while the Active Q-Switch allows for precise control over pulse characteristics.
The Lampo Deep-UV laser is versatile for fields requiring ultrafast pulses and high precision, including LIDAR, microfabrication, biomedical imaging, and photonic research.
Yes, customization options are available to tailor the Lampo Deep-UV laser's performance to particular project requirements, enhancing its applicability across a wide range of disciplines.
Its capability to deliver megawatt-level peak power in ultrafast pulses makes it an excellent choice for LIDAR systems requiring long-range and high-resolution capabilities.
The precise control and high peak power of the Lampo Deep-UV laser facilitate cutting-edge research in areas such as cellular manipulation, tissue engineering, and diagnostic imaging.
