Description

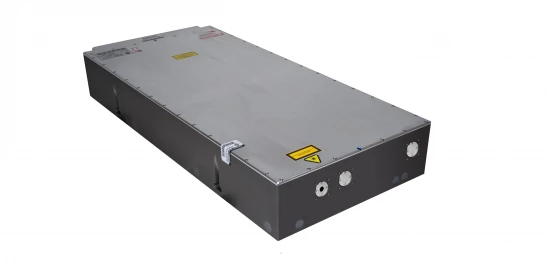

The RX Series High Power Picosecond Lasers represent a significant advancement in laser technology, offering a compact and efficient solution for high-demand applications. With a history of over a thousand picosecond lasers shipped globally, the RX Series builds upon the legacy of the RGH series, delivering enhanced performance and a reduced form factor.
This series provides a versatile range of output powers, from 10W to 100W in IR, 5W to 70W in Green, and 3W to 45W in UV, all within a streamlined All-in-One (AIO) platform. The RX Series is designed to operate from single shot to 2MHz, with an optional upgrade to 8MHz, making it a flexible choice for various industrial needs. The RX Series lasers incorporate proprietary technologies that enable them to deliver twice the pulse energy compared to similar systems from competitors. This increased pulse energy facilitates process efficiency optimization through spatial scaling, allowing the beam to be split multiple times to supply several workstations simultaneously. This capability significantly reduces the Cost of Ownership (COO), making the RX Series an economically advantageous option for businesses looking to maximize productivity and minimize operational costs.
A user-friendly control interface enhances the RX Series, offering Total Pulse Control and Burst Mode operation. Users can select up to 10 picosecond pulses with adjustable 14 ns incremental separation and programmable amplitude, which can be released in an envelope to increase ablation rates on various materials. The adjustable repetition rate, ranging from single shot to 8MHz, allows users to modify the operating PRF and adjust the operating power or pulse energy via the PEC (Power or Pulse Energy Control) function on the fly. This adaptability ensures maximum process flexibility, catering to the dynamic needs of industrial manufacturing environments.
RX Series High Power Picosecond Lasers
Specifications |
|
|---|---|
| Avg. Power: | 20 W |
| Wavelength: | 355 nm |
| Repetition Rate: | 0.001 – 8000 kHz |
| Spatial Mode (M^2): | 1.2 |
| Pulse Duration: | 0.007 ns |
| Pulse-to-Pulse Stability (RMS): | 1 % |
| Cooling: | Water-to-Water, Water-to-Air |
Features
- High Pulse Energy: Achieve up to ~1mJ in IR, over 400µJ in Green, and ~200µJ in UV.
- High Power Output: Delivers up to 100W in IR with short pulse durations (<10ps for IR, ~7ps for Green and UV).
- Versatile Wavelengths: Available in 1064 nm, 532 nm, 355 nm, with 266 nm available upon request.
- Compact and Rugged Design: The most compact, All-in-One picosecond laser available.
- Energy Efficient: High efficiency with typical power consumption under 600W.
- Flexible Repetition Rates: Operates from single shot up to 8MHz.
- Superior Beam Quality: Excellent TEM00 beam with typical M2 ≤ 1.2.
- Stable Beam Pointing: Exceptional stability with <20 μrad deviation.
- Advanced Control Features: Includes PEC (Power or Pulse Energy Control) and PSO (Position Synchronized Output) for precise operation.
- Burst Mode Capability: Allows for individually controllable bursts of up to 10 pulses with a 14 ns separation.
- POD (Pulse-On-Demand): Trigger bursts of pulses internally, externally, or continuously while maintaining constant pulse energy.
Applications
- Particle Image Velocimetry (PIV): Enables high-resolution flow visualization and analysis
- Ultrafast Ti:Sapphire Amplifier Pumping: Provides reliable high-power green sources for ultrafast systems
- Annealing / Bleaching: Allows material property modification without removal
- High-Energy Materials Processing: Suitable for drilling and cutting of hard materials with high precision
Frequently Asked Questions
The RX Series lasers provide from 10W to 100W of IR, 5W to 70W of Green, and 3W to 45W of UV output powers.
The RX Series lasers have a wide range of wavelengths, including 1064 nm, 532 nm, and 355 nm. 266 nm is also available upon request.
The RX Series lasers have repetition rates from single shot up to 8MHz.
The RX Series lasers can be used for cutting/scribing display glass, glass and sapphire cutting and drilling, semiconductor scribing and dicing, PCB processing, solar cell scribing and drilling, LED scribing, dicing and patterning, metal and ceramic cutting, drilling and marking, medical device cutting, drilling and marking, glass reinforced plastic & carbon fiber cutting, ink-jet nozzle drilling, printing & embossing tools, and nanotexturing.
The key features of the RX Series lasers include high pulse energy, high power, wide range of wavelengths, compact design, high efficiency, excellent beam quality, beam pointing stability, power/pulse energy control, position synchronized output support, burst mode, and pulse-on-demand capability.
