Description
For generating high peak power green pulses of a few hundred picoseconds, microchip lasers are economical, compact, and reliable. The 532nm pulses are produced by harmonic conversion from the IR systems, the same compact sealed package being used for either wavelength.
Microchips are also easy to operate and service; controllers can be used with every laser head model and swapped within minutes while conserving constant performances.
The SNG series are designed for high average power, delivering multi-kW peak power at repetition rates up to 70kHz.

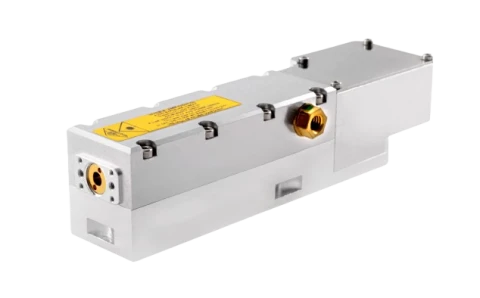

SNG-100P-100 High Performances Green Microchip Laser
Specifications
Avg. Power: | 0.1 W |
---|---|
Wavelength: | 532 nm |
Repetition Rate: | 20 – 20 kHz |
Spatial Mode (M^2): | 1.25 |
Pulse Duration: | 0.85 ns |
Pulse-to-Pulse Stability (RMS): | 2 % |
Cooling: | Air |
Beam Profile: | Gaussian TEM00 |
Beam Ellipticity: | <1.2 |
Polarization: | Linear, PER>20dB |
Output Energy: | >5uJ |
Peak Power: | >7kW |
Features
- Repetition rate up to 70 kHz
- Ultrashort pulses down to 500 ps
- Multi-kW peak power
- Excellent beam quality – TEM00, M²<1.1
- Efficient, air-cooled
- Sealed package, extremely long life
Applications
- Applications
- Material Processing
- Cost effective marking solutions
- Graphitization
- Instrumentation
- Ranging
- Differential absorption LIDAR
- Super-continuum generation
- Distributed temperature sensing
- Raman spectroscopy
- Biophotonics
- Nanosurgery
- Protein cross-linking
- Material Processing
Frequently Asked Questions
What is the SNG-100P-100 High Performances Green Microchip Laser used for?
The SNG-100P-100 High Performances Green Microchip Laser is used for generating high peak power green pulses of a few hundred picoseconds for various applications such as material processing, instrumentation, and biophotonics.
What are the features of the SNG-100P-100 High Performances Green Microchip Laser?
The SNG-100P-100 High Performances Green Microchip Laser has a repetition rate of up to 70 kHz, ultrashort pulses down to 500 ps, multi-kW peak power, excellent beam quality, and is efficient and air-cooled.
Can the SNG-100P-100 High Performances Green Microchip Laser be used for marking solutions?
Yes, the SNG-100P-100 High Performances Green Microchip Laser can be used for cost-effective marking solutions.
Is the SNG-100P-100 High Performances Green Microchip Laser easy to operate and service?
Yes, the SNG-100P-100 High Performances Green Microchip Laser is easy to operate and service. Controllers can be used with every laser head model and swapped within minutes while conserving constant performances.
What is the beam quality of the SNG-100P-100 High Performances Green Microchip Laser?
The SNG-100P-100 High Performances Green Microchip Laser has an excellent beam quality of TEM00, M² 1.1.
