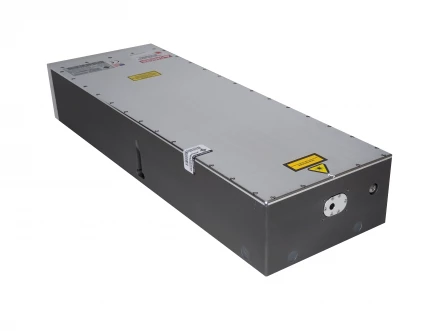

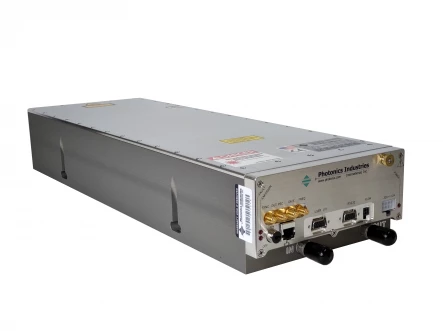

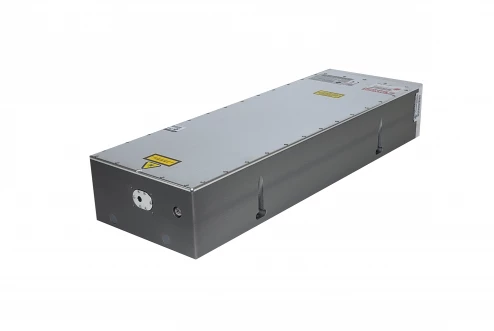

DX Series Long Pulse Nanosecond Lasers
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2021
Description
Photonics Industries, a leader in intracavity generation with over 28 years of manufacturing expertise, presents the DX UV/Green Long Pulse Nanosecond Lasers. With a legacy of tens of thousands of shipments globally, our lasers offer the most extensive selection of nanosecond (ns) UV products ranging from 1W to 55W at 355nm and Green products from 2W to 100W at 532nm.
Our DX Series Long Pulse Nanosecond Lasers are designed with a smaller form factor, delivering higher performance and greater flexibility in pulse width compared to the previous DSH series. This advancement allows for the most compact UV output powers from 15W to 30W and Green output powers from 30W to 50W in a longer pulse configuration. The DX Series benefits from patented technologies that feature non-consumable THG crystals, eliminating the need for indexing. This results in a more efficient harmonic conversion, providing superior pulse-to-pulse stability and mode quality in a streamlined, compact laser configuration.
The inclusion of standard Total Pulse Control features, such as PEC and Duty Control, ensures that pulse energy and pulse width remain constant over a wide range of repetition rates, enabling tight process control at high speeds. The combination of higher power and faster throughput significantly reduces the cost of operation. Our All-In-One (AIO) design integrates common optical, electrical, and command interfaces into a robust industrial package, facilitating seamless integration into 24/7 precision micromachining environments. This design is ideal for extended production cycles, ensuring reliability and efficiency in demanding applications.
DX Series Long Pulse Nanosecond Lasers
Specifications |
|
|---|---|
| Avg. Power: | 16 W |
| Wavelength: | 355 nm |
| Repetition Rate: | 0.001 – 250 kHz |
| Spatial Mode (M^2): | 1.2 |
| Pulse Duration: | 65 ns |
| Pulse-to-Pulse Stability (RMS): | 1.5 % |
| Cooling: | Water-to-Water, Water-to-Air |
Features
- High Power Output: Achieve up to 30W in UV and up to 50W in green long pulse laser configurations.
- Compact and Rugged Design: The most compact, All-In-One nanosecond laser, designed for industrial use.
- High Wall Plug Efficiency: Offers efficiency ranging from approximately 10% for UV to 17% for green lasers.
- Wide Pulse Width Selection: Provides pulse widths from 10ns to over 200ns, unmatched by any other single laser platform.
- Patented Intracavity Generation: Features patented UV and green harmonic generation for enhanced performance.
- Highest Pulse Energy: Delivers over 1mJ at 50kHz, making it the highest pulse energy UV nanosecond laser available.
- Excellent Beam Quality: Offers a superior TEM00 beam with a typical M2 value of less than 1.1.
- Superior Pulse Stability: Typically maintains pulse stability of less than 2%.
- Exceptional Beam Pointing Stability: Ensures beam pointing stability of less than 25 μrad.
- Total Pulse Control: Features such as PEC and Duty Control allow for precise pulse energy and width management.
Applications
- TO Patterning: High-precision display and touchscreen fabrication.
- Flex PCB & PCB Processing: Cutting, de-paneling, and via hole drilling.
- Ceramic Processing: Scribing, drilling, and fine cutting.
- Solar Cell Manufacturing: Scribing and PERC processing for energy devices.
- Semiconductor Wafer Processing: Silicon singulation, low-k dielectric grooving, and full wafer dicing.
- Glass & Ceramic Cutting: High-quality, precision material processing.
- Advanced Materials: UV welding of carbon fiber composites (CFRP) and copper foil processing.
- Reel-to-Reel UV Converting: On-the-fly, high-speed industrial production lines.
Frequently Asked Questions
The DX Series Long Pulse Nanosecond Lasers have UV output powers ranging from 15W to 30W and Green output powers ranging from 30W to 50W.
The DX Series Long Pulse Nanosecond Lasers have a smaller form factor compared to its ancestor, the DSH series.
The key features of the DX Series Long Pulse Nanosecond Lasers include high power output, compact design, high wall plug efficiency, patented intracavity UV and green generation, high pulse energy, excellent beam quality, pulse stability, and beam pointing stability.
The DX Series Long Pulse Nanosecond Lasers can be used for various applications such as ITO patterning, flex PCB de-paneling, cutting and PCB drilling, via hole drilling, ceramic scribing, cutting, and drilling, solar cell scribing and PERC processing, silicon wafer scribing and singulation, UV reel to reel on the fly converting process, metal foil cutting and copper processing, and glass and ceramic processing.
Yes, there are shorter pulse width models available in the DX Series Short Pulse Nanosecond Lasers.
