Description

Quantum Light Instruments Ltd. innovative water-free laser crystal cooling technology enables generation of high quality laser beam with up to 100 mJ pulse energy and/or up to 4 W average output power. Q2HE series sets new standard in Q-switched laser market. Advanced laser design resulted in compact, user-friendly turnkey system that requires little maintenance. There is no chillers or bulky power supplies that one needs fit under the table. Most of laser electronics is integrated into housing of the Q2HE and the only external modules are compact controller box and mains adapter that provides 27 VDC, 50-150 W power (depending on model). Less than 7 ns pulse duration and low divergence of the beam enables efficient fundamental wavelength conversion to higher harmonics with shortest wavelength available of 211 nm. Low jitter triggering pulses for user equipment are available in internal triggering mode. If required, laser pulsing can be externally triggered from delay generator. Laser is controlled trough Ethernet port via build-in web-server. There is no need to install control software – any computer or even cell phone with modern web-browser installed will be able to control Q2HE. API is provided for integration with user devices.

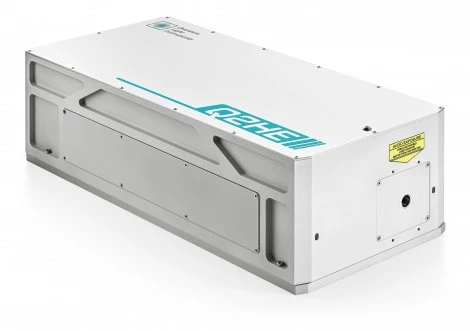

QLI - High energy air-cooled Q-switched laser - Q2HE

Specifications

Avg. Power: 4 W
Wavelength: 1053 nm
Repetition Rate: 0.01 – 0.1 kHz
Spatial Mode (M^2): 2
Pulse Duration: 6 ns
Pulse-to-Pulse Stability (RMS): 0.5 %
Cooling: Air

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

Optional extensions are available by request:
❯ Attachable second harmonic generator
❯ Attachable motorized attenuator for fundamental
wavelength beam
❯ Attachable pulse energy monitor with analog and/or
digital output

Applications

Laser Induced Breakdown Spectroscopy (LIBS)
Time-of-Flight Spectroscopy (TOFS)
Light Induced Fluorescence (LIF) Spectroscopy
Flash photolysis
Matrix Assisted Laser Desorption/Ionization (MALDI)
Pulsed light deposition (PLD)
Laser ablation

Frequently Asked Questions

Can the Q2HE laser be externally triggered?
Yes, laser pulsing can be externally triggered from a delay generator if required.
Is it easy to maintain the Q2HE laser?
Yes, the Q2HE laser is a user-friendly turnkey system that requires little maintenance.
What is the average output power of the Q2HE laser?
The Q2HE laser can generate up to 4 W average output power.
What is the maximum pulse energy that the Q2HE laser can generate?
The Q2HE laser can generate up to 100 mJ pulse energy.
What kind of applications is the Q2HE laser suitable for?
The Q2HE laser is suitable for applications such as Laser Induced Breakdown Spectroscopy (LIBS), Time-of-Flight Spectroscopy (TOFS), Light Induced Fluorescence (LIF) Spectroscopy, Flash photolysis, Matrix Assisted Laser Desorption/Ionization (MALDI), Pulsed light deposition (PLD), and Laser ablation.

Got more questions? Use the inquiry form to ask the supplier directly.
