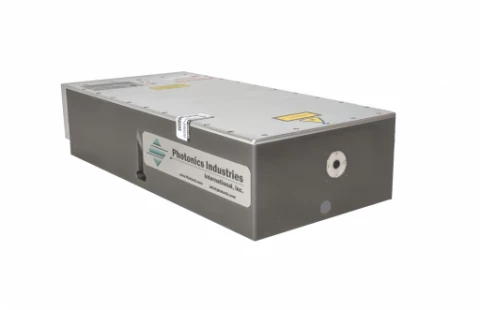

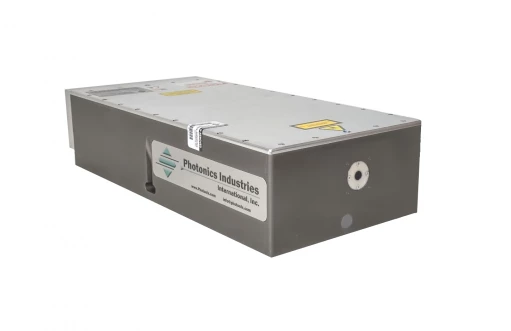

DX Series Short Pulse Nanosecond Lasers
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2021
Description
Photonics Industries, a leader in intracavity generation with over 28 years of manufacturing expertise, presents the DX UV/Green Short Pulse Nanosecond Lasers. With a legacy of tens of thousands of shipments globally, we offer the most extensive selection of nanosecond (ns) UV lasers, ranging from 1W to 55W at 355nm, and Green lasers from 2W to 100W at 532nm.
Our DX Series stands out with its compact form factor, superior performance, and shorter pulse widths compared to its predecessor, the DSH series. This series delivers the most compact UV output powers from 15W to 55W and Green output powers from 30W to 100W, with the added option of longer pulse versions. Our lasers incorporate key patented technologies that utilize non-consumable THG crystals, eliminating the need for indexing. This results in more efficient harmonic conversion, providing enhanced pulse-to-pulse stability and superior mode quality in a streamlined, compact laser configuration.
The DX Series is equipped with standard Total Pulse Control features, such as PEC and Duty Control, allowing for consistent pulse energy and pulse width across a wide range of repetition rates. This ensures tight process control at high speeds, contributing to a low cost of operation due to higher power and faster throughput. The All-In-One (AIO) design of the DX Series integrates common optical, electrical, and command interfaces within a robust industrial package. This facilitates easy integration into 24/7 precision micromachining environments, supporting extended production cycles. The combination of high power, compact design, and efficient operation makes the DX Series an ideal choice for demanding industrial applications.
DX Series Short Pulse Nanosecond Lasers
Specifications |
|
|---|---|
| Avg. Power: | 15 W |
| Wavelength: | 355 nm |
| Repetition Rate: | 0.001 – 1000 kHz |
| Spatial Mode (M^2): | 1.1 |
| Pulse Duration: | 11 ns |
| Pulse-to-Pulse Stability (RMS): | 2 % |
| Cooling: | Water-to-Water, Water-to-Air |
Features
- High Power Output: Achieve up to 55W in UV and up to 100W in green laser power.
- Compact and Rugged Design: The most compact, All-In-One nanosecond laser, ideal for industrial applications.
- High Wall Plug Efficiency: Enjoy efficiency ranging from approximately 10% for UV to 17% for green lasers.
- Wide Pulse Width Selection: Offers pulse widths from 10ns to over 200ns**, unmatched by any other single laser platform.
- Patented Intracavity Generation: Features patented UV and green generation for superior performance.
- Highest Pulse Energy: Market-leading pulse energy for UV nanosecond lasers, exceeding 1mJ at 50kHz.
- Excellent Beam Quality: Provides an excellent TEM00 beam with a typical M2 value of less than 1.1.
- Superior Pulse Stability: Typically maintains pulse stability of less than 2%.
- Exceptional Beam Pointing Stability: Ensures beam pointing stability of less than 25 μrad.
- Total Pulse Control: Features such as PEC and Duty Control allow for precise pulse energy and width management.
Applications
- ITO Patterning: Precise transparent conductor shaping.
- PCB Drilling & De-paneling: Accurate via hole creation and cutting.
- Solar Cell & Silicon Wafer Processing: Scribing, PERC, and full-cut dicing.
- Ceramic, Glass, and Metal Processing: Cutting, scribing, and drilling.
- Carbon Fiber UV Welding: High-precision CFRP joining.
- Reel-to-Reel UV Converting: On-the-fly industrial material processing.
Frequently Asked Questions
The UV output power ranges from 15W to 55W.
The Green output power ranges from 30W to 100W.
The pulse width range is from 10ns to >200ns.
The beam pointing stability is <25 μrad.
Some applications include ITO patterning, PCB de-paneling and drilling, ceramic scribing and cutting, solar cell scribing, and metal foil cutting.
