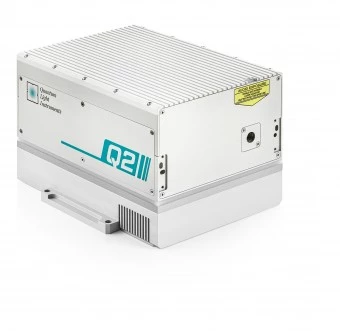

QLI - DPSS air-cooled Q-switched laser - Q2 series
Description
Q2 series diode pumped, fully air-cooled, Q-switched
laser designed for wide range of applications that require
high peak power pulses. Our innovative water-free laser crystal end-pumping technology allows to produce Gaussian-like, low divergence laser beam. At the same time, Q2 is versatile platform that can be configured in many ways.
It can be configured for 80 mJ pulse energy at 10 Hz pulse repetition rate. For high repetition rate configuration laser can produce up to 20 mJ at 100 Hz. The laser can configured to emit 1053 nm or 1064 nm wavelength from Nd:YLF or Nd:YAG laser crystals respectively. Due athermal properties of Nd:YLF crystal, at 1053 nm the laser can operate from single shot to maximum pulse repetition rate without changes in beam divergence or profile. In short cavity configuration pulse duration can be reduced by 50% in comparison to standard
configuration. Peak power of pulse can reach more than
30 MW at pulse energy up to 60 mJ. Thermo-electric cooler based temperature control system eliminate risks associated with water cooling (leaks, organic contamination etc.) and reduce maintenance costs. If requested, standard fan-cooled
heatsink can be detached from the laser body and laser
can be mounted on user-supplied cold plate or other
cooling system. Innovative laser design resulted in compact, user-friendly turnkey system that requires little maintenance. There is no chillers or bulky power supplies that one needs fit
under the table. All laser electronics is integrated into Q2
housing and the only external modules are lightweight
controller box that provides laser control interfaces and
mains adapter that provides 12 or 28 VDC, 30 – 100 W
powering (depending on model). Laser is controlled trough Ethernet port via build-in webserver. There is no need to install control software – any computer or even cell phone with modern web-browser will be able to control Q2. API is also provided for integration with user devices. Low jitter triggering pulses for user equipment are available with up to 300 μs lead in internal triggering mode. In external triggering mode, laser pulsing can be externally triggered from delay generator.
QLI - DPSS air-cooled Q-switched laser - Q2 series
Specifications |
|
|---|---|
| Avg. Power: | 2 W |
| Wavelength: | 1053 or 1064 nm |
| Repetition Rate: | 0.01-0.1kHz |
| Spatial Mode (M^2): | 2 |
| Pulse Duration: | 5 ns |
| Pulse-to-Pulse Stability (RMS): | 0.5 % |
| Cooling: | Air |
Features
Laser functionality can be further extended by wide range
of auxiliary equipment:
❯ Second harmonic output can be produced from our
attachable 2nd harmonic generator, model SHG.
❯ Up to fifth harmonic output can be produced from our
stand-alone H-SMART series harmonic generators.
❯ Pulse energy can be adjusted with our motorized
attenuator for fundamental wavelength beam.
❯ Pulse energy can be monitored by our attachable pulse
energy monitor with analog and/or digital output.
Applications
Laser Induced Breakdown Spectroscopy (LIBS)
Time-of-Flight Spectroscopy (TOFS)
Light Induced Fluorescence (LIF) Spectroscopy
Flash photolysis
Matrix Assisted Laser Desorption/Ionization (MALDI)
Pulsed light deposition (PLD)
Laser ablation
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Lithuania
-
Sold by:
-
On FindLight:
since 2020
Frequently Asked Questions
Yes, the Q2 series laser can be configured for 80 mJ pulse energy at 10 Hz pulse repetition rate, or for high repetition rate configuration laser can produce up to 20 mJ at 100 Hz.
The Q2 series laser is controlled through an Ethernet port via a built-in webserver, and any computer or even cell phone with a modern web-browser can be used to control it. An API is also provided for integration with user devices.
The Q2 series laser is fully air-cooled, eliminating the risks associated with water cooling and reducing maintenance costs.
The peak power of the Q2 series laser can reach more than 30 MW at pulse energy up to 60 mJ.
The Q2 series laser is designed for a wide range of applications that require high peak power pulses, including Laser Induced Breakdown Spectroscopy (LIBS), Time-of-Flight Spectroscopy (TOFS), Light Induced Fluorescence (LIF) Spectroscopy, Flash photolysis, Matrix Assisted Laser Desorption/Ionization (MALDI), Pulsed light deposition (PLD), and Laser ablation.
